| Prod Model: |
EQW-2D |
| Pattern: |
Shackle Type |
| Out-Wire: |
Wireless |
| Material: |
Alloy Steel |
Product Description
Features Wireless communication and display Wireless indicator, 5 digits LCD display with backlight, Many functions on handheld indicator 280D. Such as tare, zero, peak, filter setting, gravity regulation.calibration is easy through wireless indicator. , Two set point Two user programmable Set-Point can be used for safety and warning applications or for limit weighing. User-friendly design: Cast aluminum housing for maximum protection; water proof design, gravity compensation; safety factor up to 4 times capacity; battery operated with low battery indication; automatic turn off , power-saving function. Main technical data
Accuracy Standard According to OIML class III
Indicator Display 25mm(1") 5digits LCD
Water Proof Class IP66
Zero Range 4% F.S.
Tare Range 100% F.S.
Stable Time ≤5 seconds
Overload Indication 100% F.S. + 9e
Max. Safety Load 125% F.S.
Ultimate Load 300% F.S.
Shackle loadcell battery Life Continous using 90 hours after recharged
Shackle loadcell battery type Standard 18650 Lithium battery, 3.7V/3100mAh
Indicator Battery Standard 18650 Lithium battery, 3.7V/3100mAh
Shackle loadcell Charger DC4.2V/1000mA
Nominal operating Temp. - 10ºC ~ + 40ºC
Operating Humidity ≤85% RH under 20ºC
Wireless Distance 100M without obstacle
Wireless Frequency 433MHz

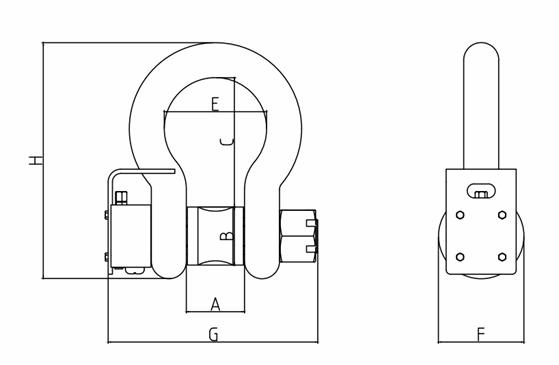

Appearance illustration
| MODEL | CAP.
(kg) | A
(mm) | B
(mm) | C
(mm) | E
(mm) | F
(mm) | G
(mm) | H
(mm) | N.W. (kg) |
| EQW-2D-20 | 20000 | 73 | 73 | 167 | 127 | 106 | 277 | 301 | 16.8 |
| EQW-2D-30 | 30000 | 83 | 83 | 184 | 146 | 122 | 299 | 337 | 22.2 |
| EQW-2D-50 | 50000 | 105 | 97 | 253 | 184 | 145 | 350 | 440 | 41.2 |
| EQW-2D-100 | 100000 | 133 | 128 | 355 | 229 | 203 | 428 | 613 | 104.0 |
| EQW-2D-200 | 200000 | 184 | 174 | 374 | 280 | 270 | 535 | 726 | 207.4 |
| EQW-2D-500 | 500000 | 240 | 270 | 515 | 360 | 390 | 700 | 1030 | 602.2 |
Power supply Battery: Standard 18650 Lithium battery, 3.7V/3100mAh Adapter: Standard 18650 Lithium battery charger Current: the shackle loadcell average current is about DC 30mA±10%, if battery charged, it can be used for about 90hours.the battery voltge should be between 3.40-4.20, When the voltage below 3.40, it means the battery needs to be recharged. User can remove the battery cover to change new battery, and charge the old battery with adapter. Charging method: Take out the18650 Lithium battery, put in the charger for charging, the charge lamp on the front panel will become orange when charging, and it will become green when the charging finish. Generally, charging time should not less than 4hours, it have charging protection,long time charging can't damage the battery.
HEU Proof Load Water Bag is specifically designed to use water in replacement of traditional solid weights for loading test. The system allows a much safer and practical method for load testing of lifting equipment for load bearing structures, such as deck cranes, pedestal cranes, offshore cranes, and general purpose cranes. The proof load water bags manufactured in accordance with BV ISO 9001: 2015 Quality Management Standard. Our products owned CE certifications and BV type inspection certificate.
In the recent decade, Jiangyin HEU Ship Engineering Co., Ltd has been committed to researching, developing and manufacturing water bag products for loading inspection and developing loading engineering service processes. The products are mainly used to test the loads of offshore oil drilling platforms and the hoisting equipments such as all kinds of ocean vessel cranes, large-scale cranes and others. Water bags meet the demand of device safety load by loading water, variable load can be infinitely increased or decreased, so hoisting water bags is a unique product of high standard, which is designed and applied to replace existing solid standard blocks. The company tries to develop safe, environment-friendly, economical, high-efficiency test water bags of various tons for many purposes, and to design and manufacture reliable, precise, portable electronic loading cells in order to meet the demand of various load tests. In addition, the company puts forth effort to research and develop the derivative products of water bags.
The products delivered by HEU is often used to test the loads of offshore oil drilling platforms and hoisting equipments, so we understand that the products' reliability is of utmost importance. Therefore, delivering high quality products has been set as a key company value since the establishment of our company. As a result, our products are internationally known for its high quality and reliability. They meet the most stringent performance criteria and are certified by recognized authorities such as BV ISO9001-2015 management requirements.
Due to our strong belief in partnerships with our clients, commitment to find new technical solutions and the dedication to deliver them as turnkey projects; We have built a reputation as a solid, reliable partner in the market. Based on our extensive track record and the amount of long-lasting client relationships we are proud to state that HEU reliably delivers state-of-the-art products.
Our in-house designs, engineering expertise and our production, testing, commissioning and installation facilities enable us to deliver custom-designed products on a turnkey basis.
The products are thoroughly tested throughout the production process and prior to delivery, to allow for a faster installation, commissioning and testing onboard. Up to a certain capacity, the products can be load tested at our test facilities. After installation, and before it is released to our clients for operation, the equipment will be finally tested.
Our products are known for its safety. However, a dedicated operating service team of skilled professionals is on stand-by to provide service support before, during and after installation and delivery. Our service network is managed from HEU in Jiangyin, but our local service offices in the major coastal ports city are on stand-by to provide all service support on location as well as by remote access.
