| Prod Model: |
FS-SP003EU |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Support: |
2.4 GHz WLAN Networks |
| Frequency Range: |
2.4 - 2.485GHz |
| Plug: |
Us EU Au |
| Operating Temperature: |
0°c~40°c (32°f~104°f) |
| Work Mode: |
AP |
| WiFi Antenna Type: |
External |
| Certification: |
CE |
| Type: |
WiFi Signal Booster |
| Voltage: |
100V-240V AC |
| Antenna Gain: |
2dBi Ceramic Chip Antennas X 2 |
| Transmission Rate: |
300Mbps |
| Color: |
Blank and White |
Product Description

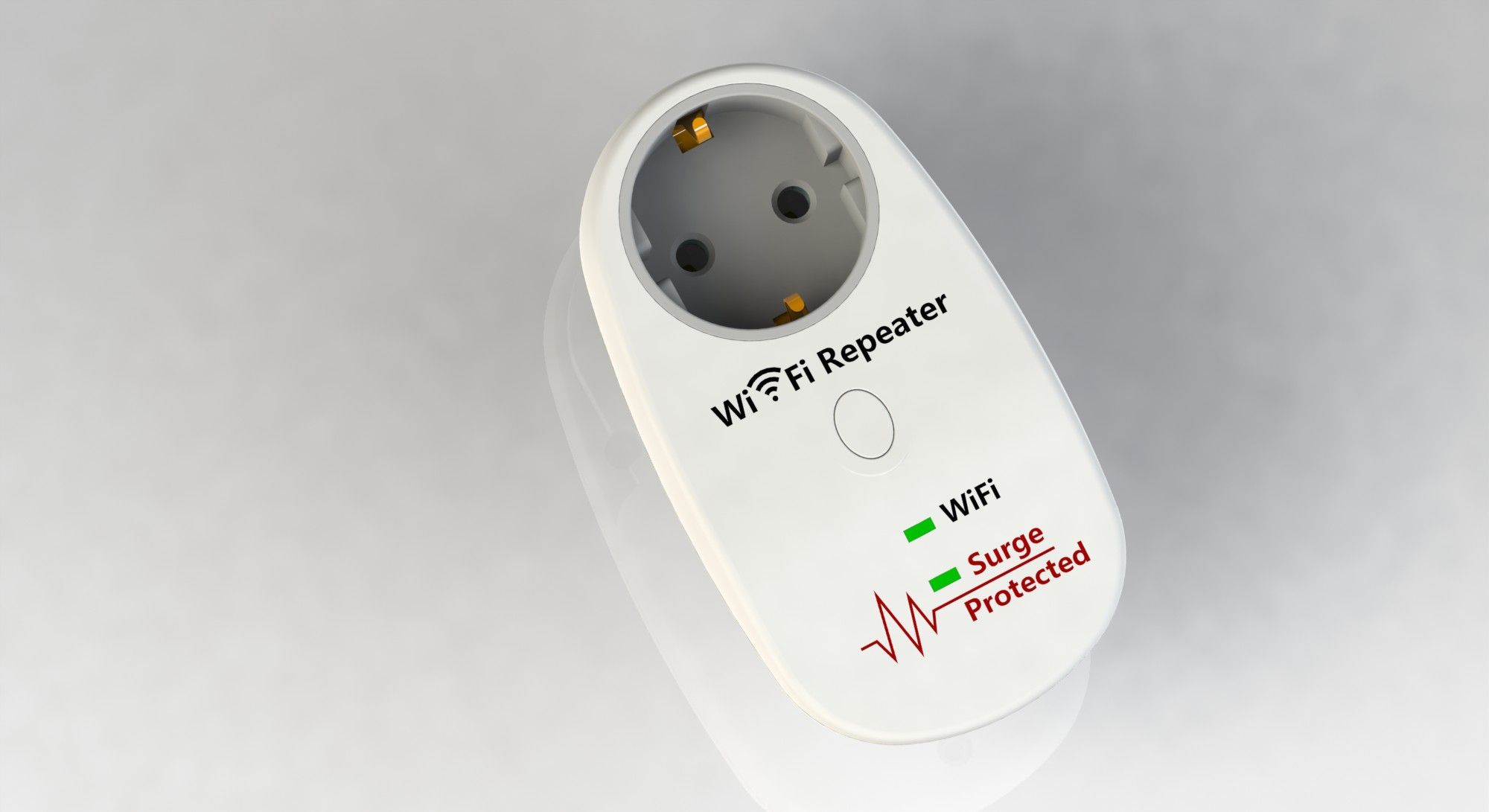

The Wireless-N Repeater is mainly used for providing free WiFi service in big area such as factory, community, street or etc. It complies with the IEEE 802.11n standard with wireless transmission speeds of up to 300Mbps. It has 2dBi ceramic chip Antennas providing even better wireless performance, transmission rates, stability technology automatically avoids channel conflicts using its channel selection feature. It also works well with other 802.11g and 802.11n protocol wireless products.
Features:
Improve wireless coverage in all WLAN networks.
Access to the Internet for computers located on the edge or outside of the range of your access point.
Complies with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b standards.
Provides up to 300Mbps transmission rates.
Support 2.4GHz WLAN networks.
Maximum WLAN security with WPA2, WPA and WEP (128/64).
Software wizard for simple setup.
2dBi antennas integrated.
Support Wireless Repeater Mode and Standard AP Mode.
Provides one 10/100Mbps Auto-Negotiation Ethernet LAN ports.
System requirments:
WlAN access point/client according to IEEE 802.11n, g, b.
110 - 230-volt socket.
The WLAN client must support at least the WPA encryption standard.
WLAN access point and the WLAN client with automatic IP address assigment(DHCP).
Forwarding of IPv4-based protocols/Address Resolution Protocol.
The network name (SSID) of the WLAN access point must be set to visible.
Specifications:
Color: Black and white
Frequency range: 2.4-2.4835GHz
Wireless transmit power: 14 ~17 dBm (Typical)
Power supply unit: 100V-240V AC
Operating temperature: 0-40 Celsius (32-104)
Storage temperature: -40-70 Celsius (-40-158)
Relative humidity: 10% - 90% (Non Condensation)
Product dimensions: 11 * 6 * 7cm
Product weight: 98g
Networking cable: 1M
Package size: 22 * 14.5 * 7cm
Package weight: 226g
Package Contents:
1 * Wireless-N repeater
1 * RJ-45 networking cable
1 * Quick installation guide
|
Standards |
IEEE 802.11n(Draft 2.0), IEEE 802.11g, IEEE 802.11b |
|
Wireless Signal Rates With Automatic Fallback |
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic) |
|
Frequency Range |
2.4-2.4835GHz |
|
Wireless Transmit Power |
14 ~17 dBm (Typical) |
|
Modulation Technology |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
|
Receiver Sensitivity |
270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER |
|
Antenna |
2dBi ceramic chip Antennas x 2 |
|
Power Supply Unit |
100v-240v ac |
|
Operating temperature |
0°C~40°C (32°F~104°F) |
|
Storage temperature |
-40°C~70°C (-40°F~158°F) |
|
Relative humidity |
10% ~ 90%, Non Condensation |
