| Prod Model: |
TBE |
| Use: |
Safety Edge |
| Size: |
45*45mm |
| Length: |
100-5000mm |
| Standards: |
GB/Ce |
| Advantage: |
Innovative Design; Raction Quickly |
| Matching Part 1: |
Controller |
| Matching Part 2: |
End Piece |
| Matching Part 3: |
Aluminium Track |
| Matching Part 4: |
Mechanical Switch |
| Application: |
Driverless Vehicles and Theatre Construction |
| Material: |
Rubber |
Product Description
Wireless Sensor Safety Edge For Vehicles And Theatre ConstructionApplicationsSafety contact edge products are pressure senor products used on the opening and closing edge which can be easily extraded and sheared, It is widely used in automatic garage door, industrial gate, the courtyard door, gate, revolving door, sliding door, machinery and other equipment to protect personal security, etc.
Technical parametersTechnical parameters: the product use the innovation of epdm and butadiene-acrylonitrile rubber mixed, to ensure its flexibility in the low temperature, Application temperature is from -25ºC to +60ºC. Resistance is generally < 150-500 Ω, launch distance is up to the products specification. The bending angle is up to 15 degrees, scleroscope hardness A60-65 degree.

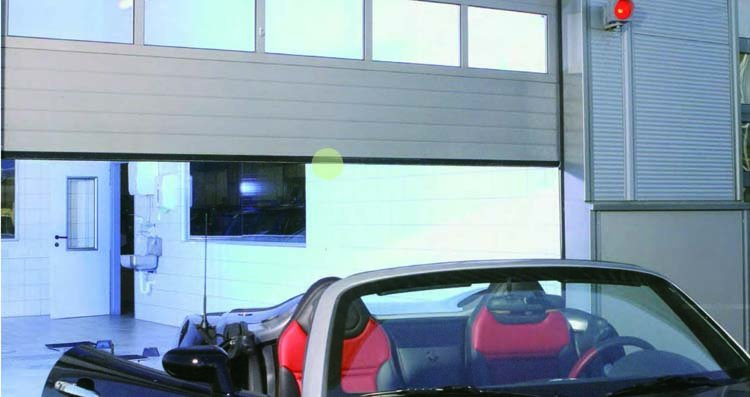

Applications

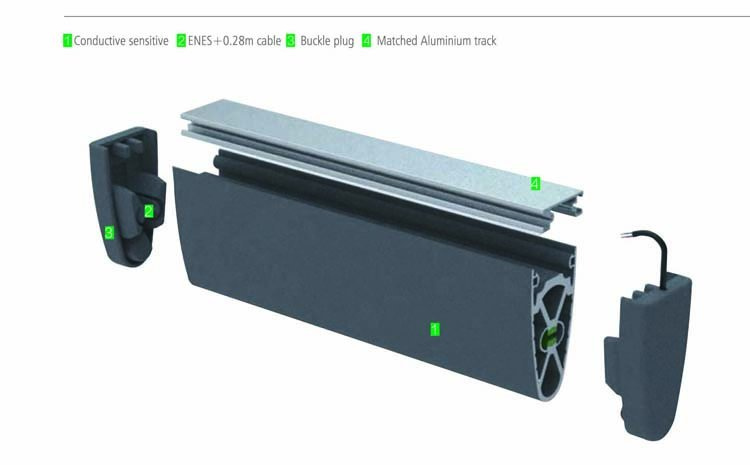

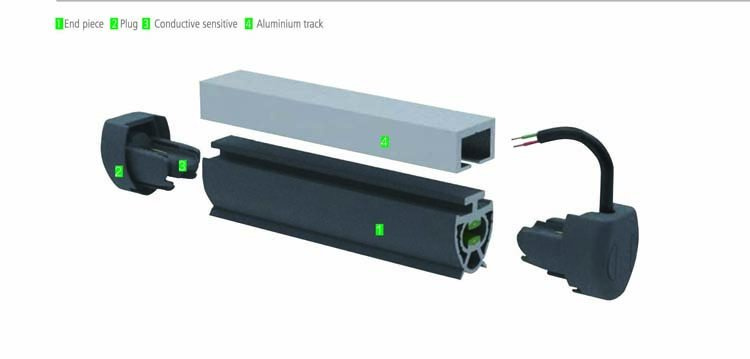

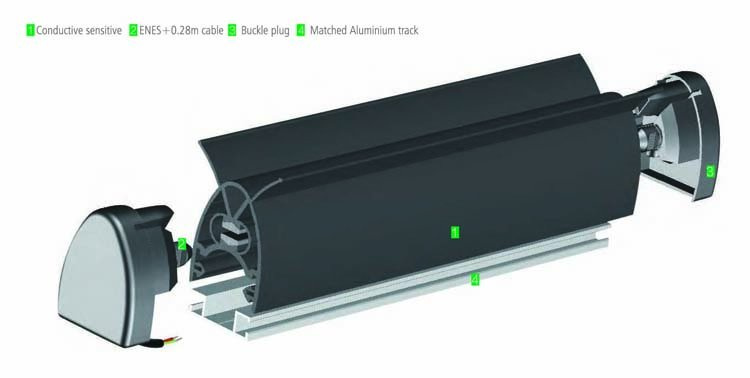

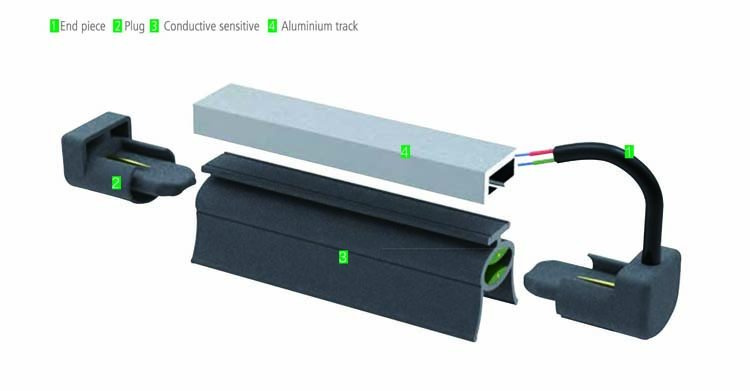

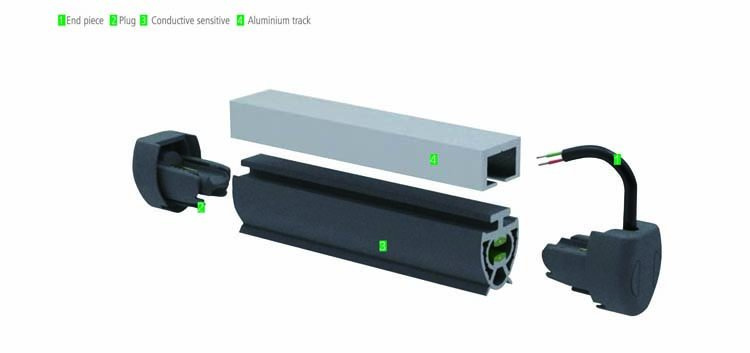

Working principleSafety edges series use different structure design, For example contact boundary internal can be divided into two or three collision the switch surface are separated by conductive adhesive and copper wire line with a specific distance, which was separated from each other with certain distance under static state. Finally, the safety edges are assembled by a terminal resistance, which can monitor the whole system. On one hand, this special design could prevent the short circuits and fittings problem, on the other hand, if the edges change, the resistance will prevent the danger immediately. Fixed end piece connection mode and waterproof plug buckle design make the installment more convenient, quickly.
Technical deta:| Application temperature range | -30° C ~70° C |
| Sensor tape material | silastic composite copper wire |
| Alternate capacity | 0.2A/42V AC/DC |
| Resistance transmission capacity | 0.5Kohm/m |
| Launch distance | 1.6mm |
| Finished product specifications | 9.0*5.2mm |
| Connecting cable Insulated wire | 2x0.34mm2. DM type |
| Insulation strength | 1500V AC |
| Bending angle maximum | 15 degree |
Q1:Are you able to create a custom mold?
A:Of course we have own factory to create molds for our customs.And within 20 workdays for mold and sample.
Q2:Can you create the designs based on our specifications,or would we need to provide designs?
A:Both are ok , if you want us to design for you, the used part should be sent to us.
Q3:How can I get a free sample?
A:Drawing for section and size;material properties for formula; all specs clear if send me your sample.Of course, you need to pay the freight.
Q4: Are you a manufacturer or trading company?
We are manufacturer, and we export our products by ourselves.
Q5: I need these samples, the product can be send by air?
Yes, of course, we can provide sample to the customer by air.But I have to remind you that the freight will be very expensive.
