Working on 403/433/470/868/915MHz RF Module Srwf-1028

Name: Working on 403/433/470/868/915MHz RF Module Srwf-1028
Brand: all-electronics-online.com
SKU: 722368462
Availability: InStock
Rating: 4.9 (46 reviews)

Price:	Negotiable/Piece
Min Order:	2/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

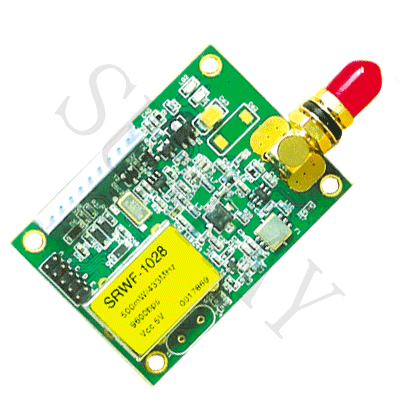

Working on 403/433/470/868/915MHz RF Module SRWF-1028

High power with 4, 500m long light of sight range
High reliability and low BER (bit error rate)
Used for rapid implementation of cable-free data links
Complies with CE-certified
Easy to use and plug
Specifications:
Modulation mode: GFSK/FSK
Communication: Semi-duplex
Frequency band: 403, 433, 470, 868, 915MHz
Output power: 27dBm (500mW)
RF sensitivity: -115 to -119dBm
Data rate: 1200 to 19200bps
Interface: TTL, RS232 and RS485
Channels: 8 (default), 16 or 32 (customized)
Dimension: 53 x 38 x 10mm
RF line-of-sight range: 4, 500m in the open field
Power supply: +4.5 to 5.5V DC
Power consumption:
Tx: 300 to 550mA
Rx: 32 to 38mA
Sleep: 5 to 30μ MA
Operating temperature: -20 to 70° C
Supported network topology: Point to point and point to multi-point
Applications:
Automatic Meter Reading (AMR) system for water, gas, heat and electric meters
Wireless crane scales and weighing machines
Queuing management system in bank
Wireless dishes ordering system
Data collecting in production line
Wireless intelligent control for lighting system
Remote control for industry vehicle and lifting machine
Data communication for railway, oil well, dock and army
Medical treatments and electric instruments automation control
Security alarm, attendance checking and locating for coal mine workers under well
Car alarm, tire pressure monitoring and wheel aligner
Wireless POS, PDA wireless smart terminals
LED display screen in thruway and public places
Automatic non-stop billing system on freeway

Prod Model:	SRWF-1028
Long Communication Length:	4500meters
Usage:	Workstation
Type:	Wireless
Information Content:	Data
Certification:	ISO
Condition:	New
Support Network:	RF

Founded in 2004, Minsen Meter Co., Ltd., is dedicated to design, manufacturing and marketing of compact short range radio modules and radio modems for rapid implementation of cable-free data links.

Sunray wireless provide high-quality, cost-effective and easy-to-integrate RF products for operation in the license-free ISM bands at 403/ 433/ 470/ 868/ 915 MHz and 2.4 GHz. The products include a range of RF transceivers, RF modules, RF modems as well as complete AMR equipments & systems

Our built-in radio modules are fully integrated wireless solutions, and allow clients to make any product wireless without RF experience and without months of hardware as well as software development time.

All process complies with ISO 9001: 2000 standards. Our products are CE/FCC compliant. Only the best quality materials are used. Thanks to the great standard of workmanship, we win good reputation and enjoy long term & mutually beneficial business relationship with many domestic and international customers.

Inquiry today! Your ODM/OEMrequests are Welcome.
