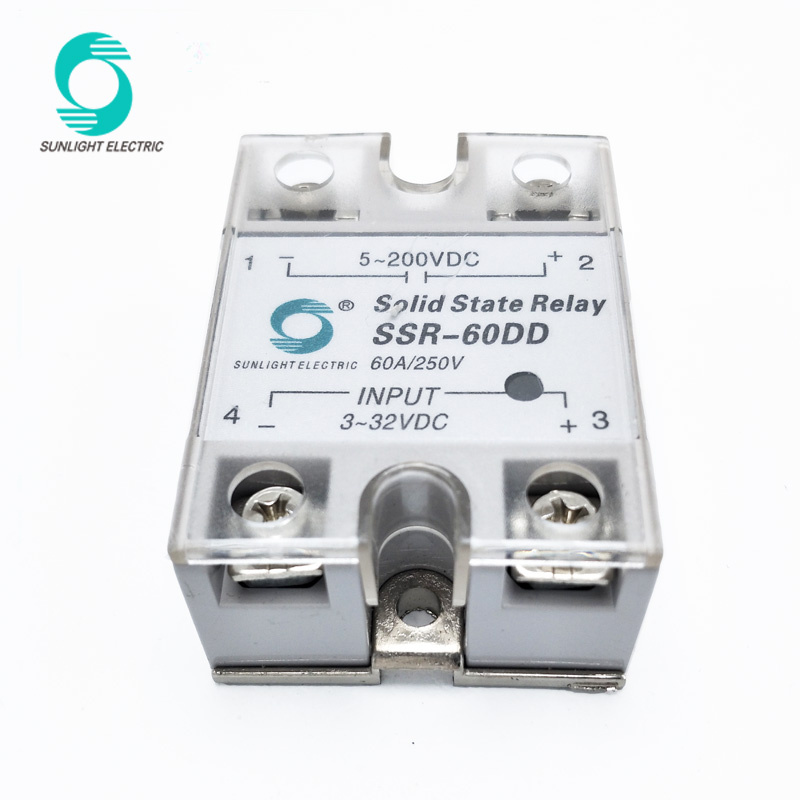

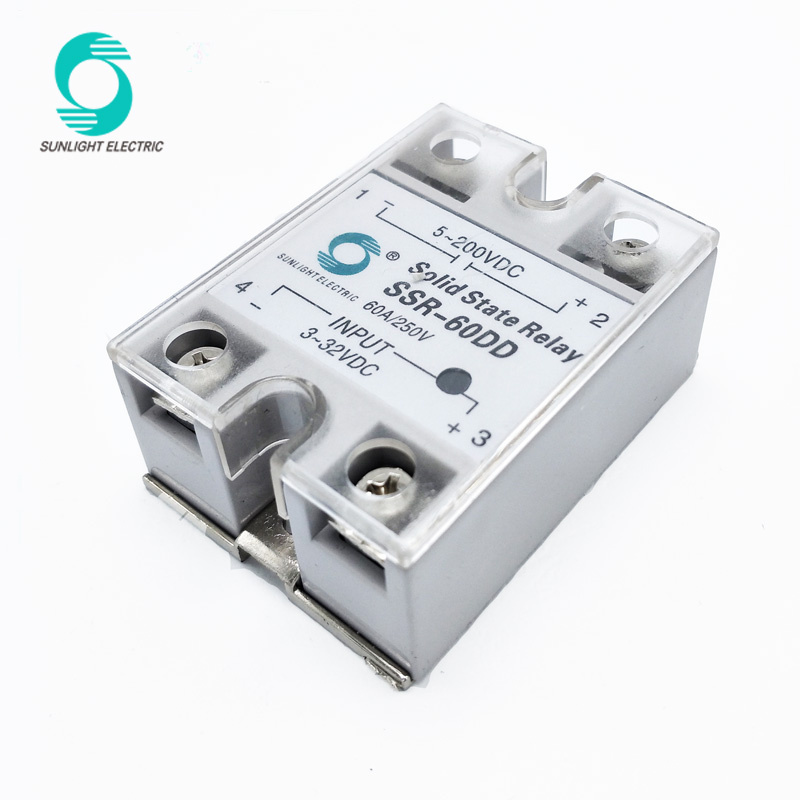

Worldsunlight SSR-60dd 60A Input 3-32VDC Output 5-200VDC DC-DC SSR Solid State Relay

Features
All models feature the same compact dimensions to prolide a uniform mounting pitch.
Builtin MOV effectively absorbs extermal surgesOperation indicaor (red LED) enables monitoring operatio
Protective cover for greater saftey
Conform to IEC international electrical committee standard
DC and AC, AC and AC, DC and DC, AC and DC input versions available

Applications
Universal switch and thermal control
Industrial automatic control
Numerial-controlled machinery,
remote-control system

Technical data:
Single phase SSR can be 1-400A
Three phase SSR can be 1-400A
Industrial SSR can be 60-400A

Model	SSR-60DD
Load current	60A
Load voltage	5-220VDC
Control voltage	3-32VDC
Control current	DC5-50mA
On state leakage current	≤1mA
Off state time	≤0.8mS
Dielectric strength	2500VAC
Insulation resistance	1000MΩ500VDC
Ambient temperature	-30°c ~ 75°c
Mounting method	bolting
Indicator	LED
Weight	135g

How to Order?

1. Please let us know what kind of model.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay the discussed deposit soon.
5. After getting your deposit payment, all goods will be sent to you in by sea or air within one month.
6. OEM/ODM is welcomed.
Terms of Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we can declare lower value if needed.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Terms of Payment:
1. For bulk order, TT or L/C at sight.
2. 30% deposit and 70% against shipping documents.
3. Sample order we accept payment such as paypal, western union, visa card.
Warranty:
1.We provide 1 year quality warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods .
