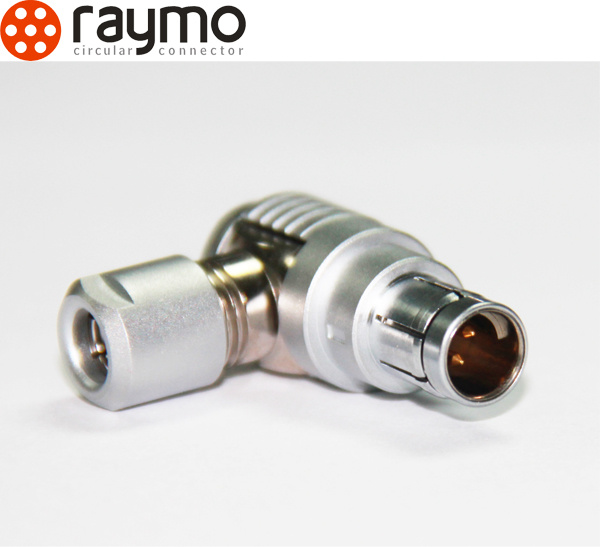

Wso Right-Angle Elbow Plug 102 Series 2pin Electrical Cable Connector
Price: |
US $ 5.87-5.89/Piece |
Min Order: |
5/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Part No: RM-WSO-0F1C-P02JS-052Z
WSO cable mounted push-pull self-locking right-angle plug, 102 series, 2pin, 52 cable collet, natrual chrome-plated brass, PPS insulator, solder contacts, key code 1.
Product Size & ContactsSeries | Shell size | Contacts no. With Solder & PCB type |
F-series IP68 | 0F/102 | 2 | 3 | 4 | 5 | 7 | 9 | | | | | | | | |
1F/103 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | | | |
AF/1031 | 10 | 12 | 15 ( triaxial ) | 19 | | | | | | | | | | |
2F/104 | 2 | 3 | 4 | 6 | 8 | 16 | 19 | | | | | | | |
3F/105 | 7 | | | | | | | | | | | | | |
Main features 1. Security of the push-pull self-latching system;
2. Multipole types with 2 to 9 pins contacts;
3. Solder or PCB contacts(straight or elbow);
4. male and female contacts
5. 360°screening for full EMC shielding;
6. High-density installation for space-saving ;
7. Multiple key options to avoid cross mating of similar connectors;
8. Made of bronze beryllium and have a gold-plated surface;
9. Have brass out shells which have a chrome nickel-plated surface. Applications RAYMO's high quality connectors are found in a variety of challenging applications.- Medical
- Defense & Security
- Instrumentation
- Transportation
- Industry
- Energy
- Broadcast
- Extreme environments

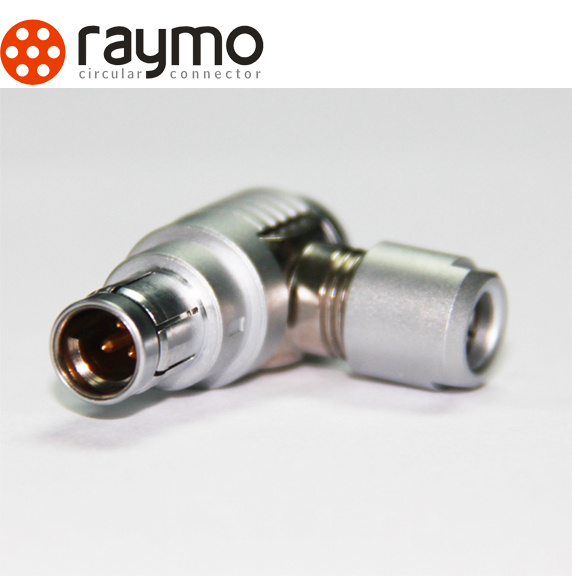

Products Photo Details
Our Company
RAYMO is a SGS audited manufacture that:
• Focus on manufacturing & exporting various metal & plastic circular push pull connectors, cable assembly.
• Can be 100% compatible with original LEMOS • FISCHERS • ODUS • HIROSES • BINDERS and Military 38999
• Series has F, B, K, S, L, T, P, HR10A, M4, M8, M12, M16, , BNC, 680, 423 , 38999, 26482
• CO, Form A, Form E
• CE, ROHS, ISO:90001-2008, SGS Audited manufacturer
• All the items can work normally after 5000times mating
Certifications
RAYMO EXBITIONS
FAQ
1. Are your company a professional manufacturer?
Raymo: Yes, we specialized in producing circular push pull connectors and cable assembly since 2010.
Our factory is SGS audited manufacture and worked on www.alibaba.com more than 4 years.
2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample :
RAYMO: Available. Any needs, please contact us:
4. What about the delivery time?
Raymo: sample for 3-5 working days, mass production for 5-7 working days.
5.What is your payment terms?
Raymo: 100% T/T deposit when customer place order.
6. Does your product have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory
has instruments to tested them beforeshipping.
Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
Prod Model: |
RM-WSO-0F1C-P02JS-052 |
Shell Model: |
Elbow 90 Degree Plug |
Color: |
Black /Natural Chrome |
Contacts No.: |
2.3.4.5.7.9 |
Contact Type: |
Solder Contact |
Cable Assembly Or Not: |
Yes |
Insulator: |
PPS |
Max. Mating: |
5000 |
IP Ranking: |
IP68 |
MOQ: |
5 PCS |
Delivery: |
5~7 Working Days |
RAYMO professionally specializes in manufacturing and exporting various precision connectors and cable assembly for many years.
With the professional R&D and excellent craftmanship, we can offer customer exact high quality and nice appearance products, that
Widely have been used in Medical equiments, Industrial applications, Telecommunications, Aviation, Audio-video,
Petroleum, and other industries, , , etc.
Based on the philsophy of Quality First and Competitive price, Raymo focuse on every technological design and processess, we have already established
Good reputation among customers.
What is more, Raymo can do OEM design, and help customer's idea to come into truth.
Raymo as a team, customer's suggestion will be highly appreciated. Samely, we will give you better professional suggestion as we did before.
We have the capacity to meet market demand and are ready to become a better professional manufacture in connector field.
