Product Description

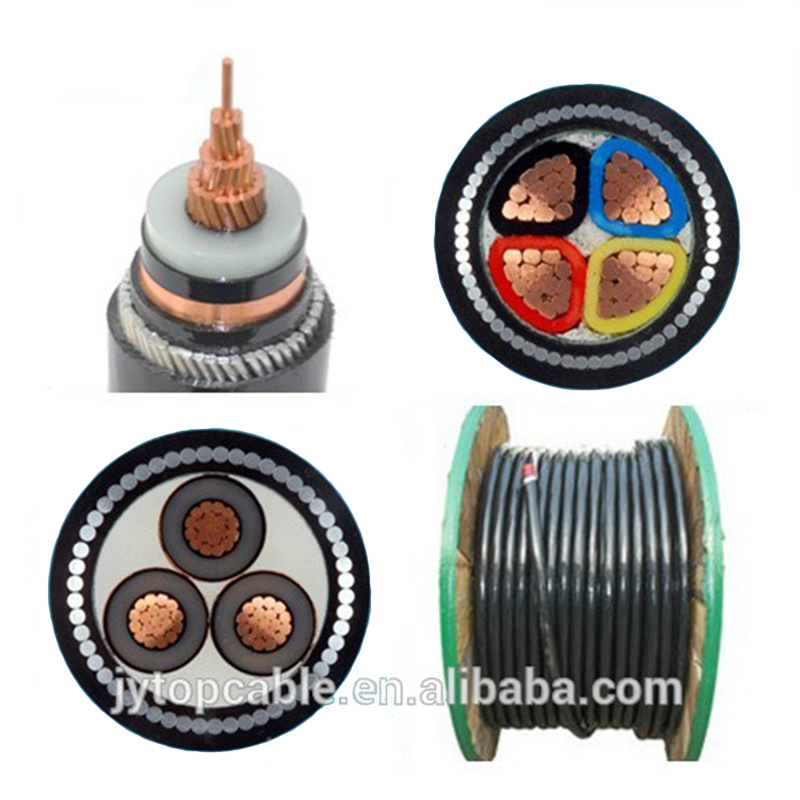

Low Voltage LV Armoured Cable 1kv Electric Cable PVC Insulated Steel Wire Armored Cable 1KV CU/PVC/SWA/PVC CABLE1. Operating Characteristics
Rated voltage: 0.6/1(1.2)kV
Max. Permissible continuous operating temperature of conductor: 70 ° C
Max. Temperature of conductor during short-circuit (5s max. Duration) shall not exceed:
Nominal cross section of conductor ≤ 300mm2: 160 ° C
Nominal cross section of conductor >300mm2: 140 ° C
The ambient temperature under installation should not be lower than: 0 ° C
The bending radius of cable is recommended as following:
For single core cable: Not less than 15 times of the diameter of cable
For multi-core cable: Not less than 12 times of the diameter of cable
When the armored single core cable used for Alternative Current(AC) system, the armoring material should be non-magnetic.
2. Application
The cable is used for fixed installations such as electric power distribution networks or industrial installations, which is laid in high fall area, able to bear external mechanical force, and certain pulling force.
3. Manufacturing Standards
IEC 60502-1 & Chinese national standard GB/T 12706-2008 We can produce above cables according to popular international standards such as ASTM, BS, DIN, NF &AS/NZ also.
4. Main technical data
4.1 Main technical data of 6.35/11KV, Single core, Aluminum conductor, XLPE insulated, double galvanized steel tape armored and PVC or PE sheath cable
CABLE CONSTRUCTION: 6.35/11KV AL/XLPE/DSTA/PVC or PE
Size | Nominal
thickness of
XLPE
insulation(mm) | Approx.
thickness of copper tape
screen (mm) | Nominal thickness of steel tape(mm) | Nominal
thickness of
PVC or
PE(mm) | Approx. overall
diameter of finished
cable(mm) | Max. conductor
D.C resistance
@ 200C (Ω/km) |
| 1x25mm2 | 3.4 | 0.12 | 0.3 | 1.8 | 23.9 | 1.20 |
| 1x35mm2 | 3.4 | 0.12 | 0.3 | 1.8 | 24.9 | 0.868 |
| 1x50mm2 | 3.4 | 0.12 | 0.3 | 1.8 | 26.0 | 0.641 |
| 1x70mm2 | 3.4 | 0.12 | 0.3 | 1.8 | 27.7 | 0.443 |
| 1x95mm2 | 3.4 | 0.12 | 0.3 | 1.9 | 29.5 | 0.320 |
| 1x120mm2 | 3.4 | 0.12 | 0.3 | 1.9 | 30.9 | 0.253 |
| 1x150mm2 | 3.4 | 0.12 | 0.3 | 2.0 | 32.7 | 0.206 |
| 1x185mm2 | 3.4 | 0.12 | 0.3 | 2.0 | 34.29 | 0.164 |
| 1x240mm2 | 3.4 | 0.12 | 0.5 | 2.1 | 37.7 | 0.125 |
| 1x300mm2 | 3.4 | 0.12 | 0.5 | 2.2 | 39.9 | 0.100 |
| 1x400mm2 | 3.4 | 0.12 | 0.5 | 2.3 | 43.3 | 0.0778 |
| 1x500mm2 | 3.4 | 0.12 | 0.5 | 2.4 | 47.4 | 0.0605 |
| 1x630mm2 | 3.4 | 0.12 | 0.5 | 2.5 | 51.5 | 0.0469 |
| 1x800mm2 | 3.4 | 0.12 | 0.5 | 2.6 | 55.4 | 0.0369 |
4.2 Main technical data of 6.35/11KV, three cores, Aluminum conductor, XLPE insulated, double galvanized steel tape armored and PVC or PE sheath cable
CABLE CONSTRUCTION: 6.35/11KV AL/XLPE/DSTA/PVC or PE
Size | Nominal thickness of
XLPE
insulation(mm) | Approx. thickness of
copper tape screen (mm) | Nominal thickness of
steel tape(mm) | Nominal thickness of
PVC or
PE(mm) | Approx. overall diameter of
finished cable(mm) | Max. conductor D.C resistance @ 200C (Ω/km) |
| 3x25mm2 | 3.4 | 0.10 | 0.5 | 2.3 | 45.7 | 1.20 |
| 3x35mm2 | 3.4 | 0.10 | 0.5 | 2.4 | 48.1 | 0.868 |
| 3x50mm2 | 3.4 | 010 | 0.5 | 2.5 | 50.9 | 0.641 |
| 3x70mm2 | 3.4 | 0.10 | 0.5 | 2.6 | 54.8 | 0.443 |
| 3x95mm2 | 3.4 | 0.10 | 0.5 | 2.7 | 58.8 | 0.320 |
| 3x120mm2 | 3.4 | 0.10 | 0.5 | 2.9 | 62.4 | 0.253 |
| 3x150mm2 | 3.4 | 0.10 | 0.5 | 3.0 | 66.2 | 0.206 |
| 3x185mm2 | 3.4 | 0.10 | 0.5 | 3.1 | 70.1 | 0.164 |
| 3x240mm2 | 3.4 | 0.10 | 0.5 | 3.3 | 75.9 | 0.125 |
| 3x300mm2 | 3.4 | 0.10 | 0.5 | 3.4 | 80.7 | 0.100 |
| 3x400mm2 | 3.4 | 0.10 | 0.8 | 3.7 | 89.8 | 0.0778 |

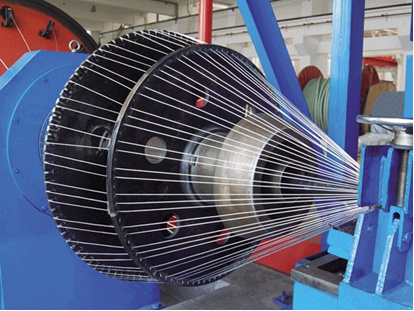

Armoring machine
Factory
Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,
PRODUCTS & STANDARDS & International Market:
1). Bare Conductor:
All Aluminum Conductor (AAC),
All Aluminum Alloy Conductor (AAAC),
Aluminum Conductor Steel Reinforced (ACSR),
Aluminum Alloy Conductor Steel Reinforced (AACSR),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),
Aluminum Conductor Aluminum Alloy Reinforced (ACAR),
Aluminum Conductor Steel Supported (ACSS),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)
All Copper Conductors(ACC),
Aluminum Coated Steel Wire(ACS),
Copper Coated Steel Wire(CCS),
Copper Coated Aluminum(CCA),
Galvanized Steel Wire(GSW),
Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire
2). Overhead Cable:
Aerial Bundled Cable (ABC).
XLPE Cable,
Flexible Cable,
Single Core Cable,
2 Core Cable,
3 Core Cable,
4 Core Cable.
3). Building wire and cable:
THHN /THWN Cable
TW/THW Cable
PVC Insulated Wire,
XLPE Insulated cable.
4. Power Cable:
Armored /Non-armored Power cable
AWA Cable
SWA Cable
Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.
We can meet customers' special requirements, and provided OEM service.
Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.
We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.
Company website: www.jytopcable.com
