1). Standard: IEC60502; GB12706.1-2002

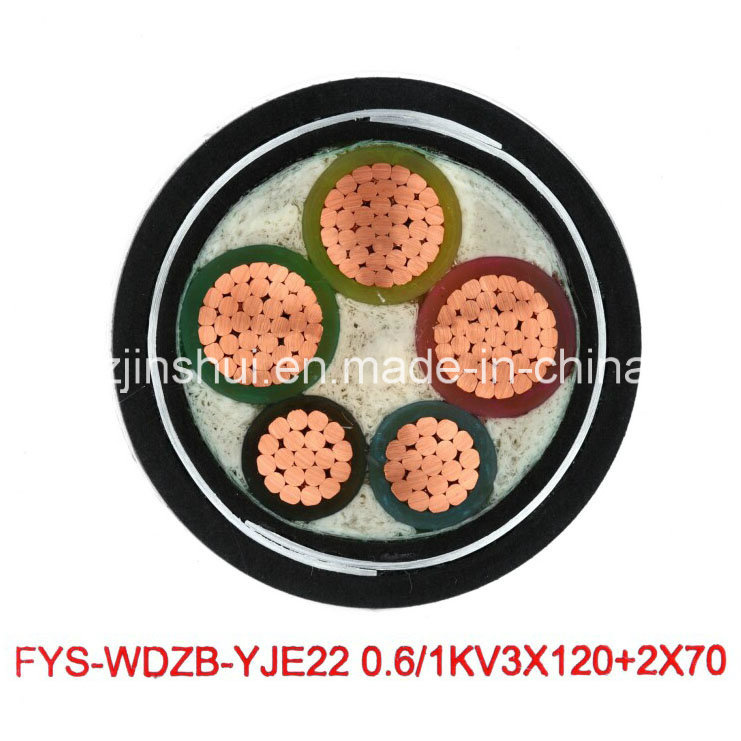

2) Specification: Circular Copper conductor for single core and shaped conductors for muti-core, XLPE insulated, PVC bedding, armored(or unarmored) PVC sheathed cable.
Detailed description or construction:
* Conductor: compacted or uncompacted copper or aluminium
* Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
* Filler: Polypropylene filament with lapped binding tape
* Binder: Binding tape
* Inner sheath: Polyvinyl chloride (PVC)
* Armour: Galvanized steel wire armored (SWA) or steel tape armored (STA)
*Sheath: Polyvinyl chloride (PVC)
3). The rated voltages U0/U(Um) of the cables considered in this standard are as follows:
U0/U(Um) =3.6/6(7.2)-6/10(12)-8.7/15(17.5)-12/20(24)-18/30(36)-21/35(40.5)KV
In the voltage designation of cables U0/U(Um):
* U0 is the rated power frequency voltage between conductor and earth or metallic screen for which the cable is designed;
* U is the rated power frequency voltage between conductors for which the cable is designed;
* Um is the maximum value of the "highest system voltage" for which the equipment maybe used
4) Voltage:0.6/1kv,6/6kv,6/10kv,8.7/15kv,12/20kv,18/30kv,19/33kv,26/35kv
5). Application:used in ducts, trays and direct burial in ground. the cable is subjuct to immerse in water all the time.
6).This series includes:Single copper(Alumunium) core XLPE insulated PVC sheated
* Single copper(Alumunium) core XLPE insulated steel tape armoured PVC sheathed
* Single copper(Alumunium) core XLPE insulated steel wire armoured PVC sheateed
* Multi-core copper(Alumunium) core XLPE insulated PVC PVC sheath
* Multi-core copper(Alumunium) core XLPE insulated PVC inner sheath steel tape armoured PVC sheath
* Multi-core copper(Alumunium) core XLPE insulated PVC inner sheath steel tape armoured PVC sheath
7).Product feature
a.Max Long-time operating temperature of XLPE insulated cable is 90(70)°C.
b.Installing temperature of cable should not be less than 0°C.
c.Max short-circuit temperature is not exceed 250(160)°C, not more than 5 sec.
8). Marking: According to the customers' requirements
9).Nominal cross-sectional areas:
1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2, 800mm2
10).types
| Model | Name | Main Application |
| V V | PVC Insulated Sheathed Power Cable | For laying in doors, pipe and kin tunels, but unable to bear pulling force. |
| VLV |
| V V22 | PVC Insulated steel tape armoured and PVC sheathed power cable | For laying on in indoor, tunels and underground, able to bear pulling force and pressure |
| VLV22 |
| V V32 | PVC insulated fine steel wire armoured and PVC sheathed power cable | For laying indoor, tunels and water, bear certain axis pulling force |
| VLV32 |
| ZR-V V | PVC insulated PVC sheathed flame retardant power cable | For laying indoor, pipe and kin tunels, but unable to bear pulling force and pressure. |
| ZR-VLV |
| ZR-V V22 | PVC insulated steel tape armoured and PVC sheathed flame retardant power cable | For laying indoor, tunnels and underground, able to bear pulling force and pressure |
| ZR- VLV22 |
| ZR-V V32 | PVC insulated fine steel wire armoured and PVC sheathed flame retardant power cable | For laying indoor, tunnels and water, able to bear pulling force and pressure. |
| ZR-VLV 32 |
| ZR-V V42 | PVC insulated steel wire armoured and PVC sheathed flame retardant power cable | For laying tunels, water and other upright place, bear certain axis pulling force |
ZR-VLV42
|
TYPE | NAME | Main Application |
CU core | AL core | | |
YJV/YJY | YJLV/YJLY | XLPE insulated,PVC/PE sheathed power cable | For laying indoor ,tunnel,canal and underground.Unable to bear external mechanical forces,but bear the traction force during laid |
YJV22/YJV23 | YJLV22/YJLV23 | XLPE insulated,steel tape armored,PVC/PE sheathed power cable | For laying indoor ,tunnel,canal and underground.Able to bear external mechanical forces,but unable to bear large pulling force |
YJV32/YJV33 | YJLV32/YJLV33 | XLPE insulated,thin steel wire armored,PVC/PE sheathed power cable | For laying in shaft,water underground will large difference of level.Able to bear external mechanical forces and moderate pulling force |
YJV42/YJV43 | YJLV42/YJLV43 | XLPE insulated,thick steel wire armored,PVC/PE sheathed power cable | For laying in water and seabed.Able to bear positive pressure and pulling force |
Established in 1984, Henan Jinshui Cable Group Co., Ltd. specializes in design and manufacture of various kinds of wires and cables. Our company's headquarters is located in Zhengzhou City of Henan Province, a famous city with convenient transportation in China.
Our company is in charge of 23 domestic sale companies and one trade company, Zhengzhou Jin Hang High-Tech Co., Ltd., mainly responsible for overseas market. There are 638 staff members in the factory, including 18 experienced engineers, 52 lab assistants and 568 workers. The capital asset reached USD10, 507, 000. We have various advance product lines and equipment, including 180 sets for producing use and 40 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We also have some ability to satisfy special need of customers. The annual product capacity of cables and wires of our factory is more than 10, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Henan Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.
For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries. We insisted that pay adequate attention to every customer's request. We insist on our principle of "Good Quality Results Trust and Honesty Makes Success". We sincerely welcome you to touch with us and visit us.
