Xmt7100 Intelligent Pid Temperature Controller, Digital Temperature Controller Xmt7100 AC/DC85-260V

Name: Xmt7100 Intelligent Pid Temperature Controller, Digital Temperature Controller Xmt7100 AC/DC85-260V
Brand: all-electronics-online.com
SKU: 816178135
Availability: InStock
Rating: 4.3 (77 reviews)

Price:	US $ 13-16/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

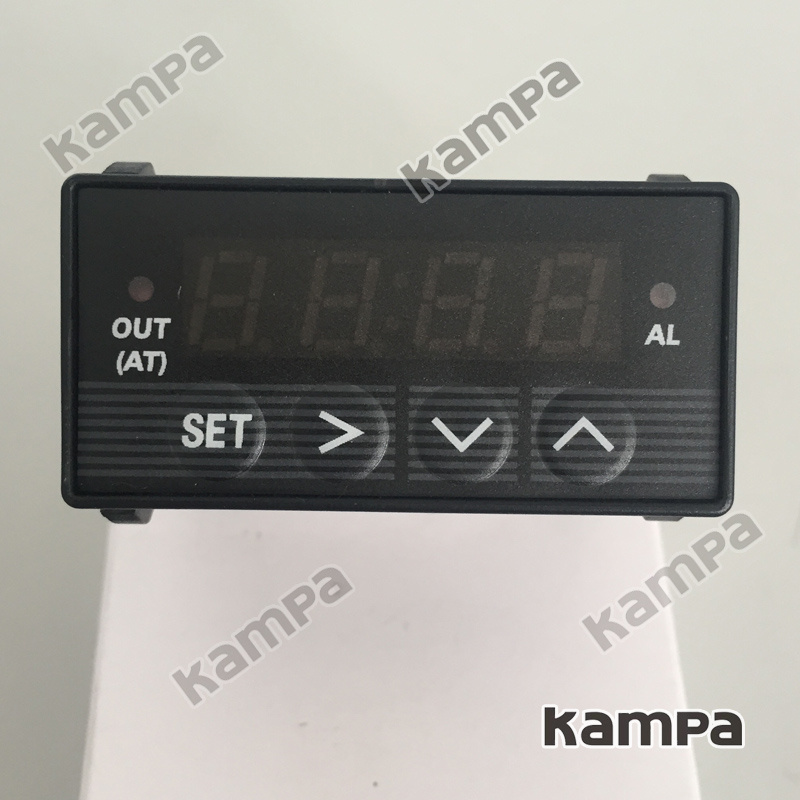

XMT7100 Size 48*24mm PID Digital Temperature Controller RTD Thermocouple

Specifications

Supply voltage: 18-265V AC or DC

Power consumption: < 2 Watts.

Sampling speed: 4/sec.

SSR activated voltage: open circuit: 10V; short circuit: 40mA.

Accuracy: 0.2% of full scale.

LED Display: Red, 0.28 inch

Out of range indication: "EEEE".

Ambient temperature requirements: 0 to 50 C (32 to 122 F)

Humidity requirement: < 85% RH.

Relay Contact: 220VAC, 3A.

Controller dimensions: 48 x 24 x 75 (mm).

Opening for installation: 44 x 20 (mm)

Alan Xue

Yueqing Kampa Electric co,.ltd.
Tel: +0086-577-62729846| Fax: +0086-577-62780320 | Phone:+0086 15167874317
Web: www.china-kampa.com

Prod Model:	xmt-7100

Kama Electric Co., Ltd.

Established in 2009, Occupies 12000m2.

Our company is the electric and electronic expert. And we can offer more than 600kinds of distributing and controlling system products.

Established in 2009, Occupies 12000m2.

Our company is the electric and electronic expert. And we can offer more than 600kinds of distributing and controlling system products.

As Kampa have more than 15 share-holding factories for relays, thermostat, heater, automatic voltage switch, temperature controller, push button, cable ties, cable gland, solar connector, use, circuit breaker, distribution box, High voltage transformer, vacuum circuit breaker, etc...

Meanwhile, Most of our goods have gained CE, UL, CCC, BV, SA, CB and SEMKO approval. And we can also offer OEM and ODM service because of our professional teams.

Especially speaking, Kampa CREAT Nonarc Electric Co., Ltd. In 2010.

It is specialized in producing Circuit breaker and Distribution box. It has ISO9001, 5S system and advantage technology equipment.

Welcome to visit us for cooperation!

Kampa - will create a magnificent tomorrow together with you!
