Three phase asynchronous motorWidely applied in general machinery and industries such as pumps & water treatment, road machinery, petroleum, chemical, metallurgy, cement and paper-milling.
IP55 protection, Class F insulation, B Temperature rise, S1 duty
Rated voltage 380V/400V/415V, rated frequency 50HZ
Operation conditions: Ambient temperature: -20~40, altitude<1000m
Y-connection for motors up to 3KW and connection for 4KW and above
Cooling method is IC411
ME2 series three phase asynchronous motor is high efficient electric motors with aluminum housing. It is xinwang designed high efficiency electric motors with compact size, light weight, beautiful appearance. Its efficiency indicators are in line with Europe and Australia IE2 high standard(LEVEL 1B)
Efficiency reach IE2 standard. Mounting dlmenslons is according IEC standard.
IP55 protection, F-class insulation, B-level temperature rise, S1 duty, rated voltage 380V/400V/415V, 50HZ
Operating Conditions: Ambient temperature -15-40, above sea level<1000m

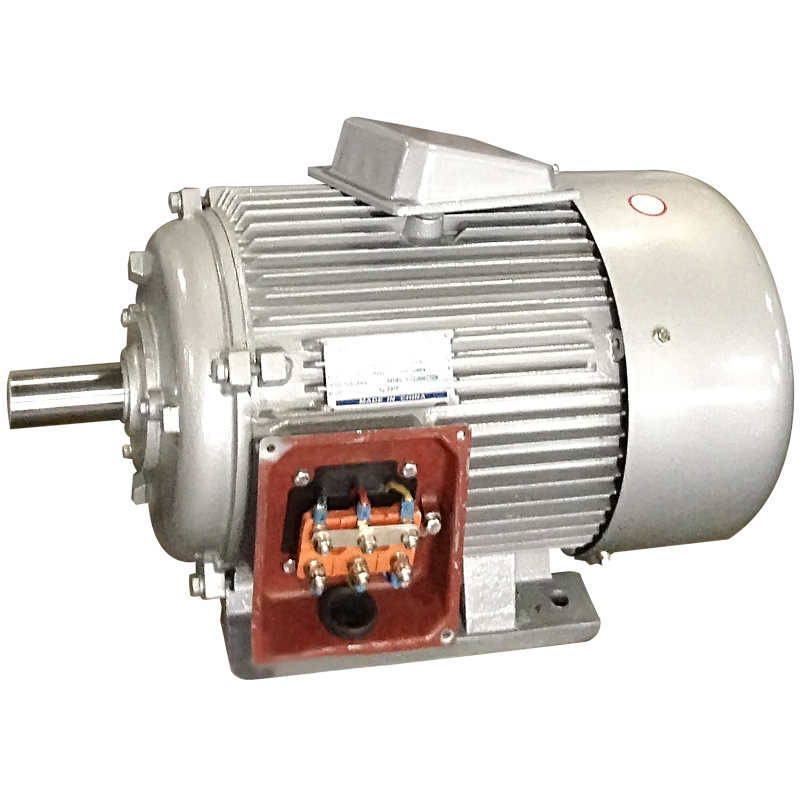

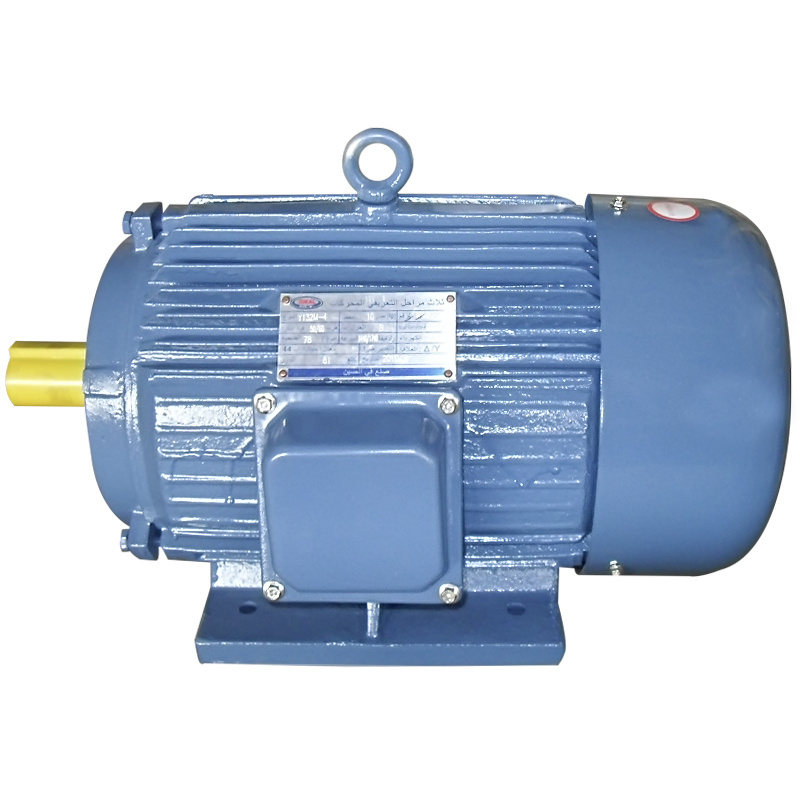

Y2 Series Three phase Asynchronous Motors (frame 80-355mm, power 0.8-315KW) are the renewal and upgrading products of Y series, are defined as totally enclosed fan cooling, squirrel cage type, and noted for its novel design, nice appearance, low noise, high efficiency, large torque, excellent starting performance, compact structure, easy maintenance etc. Note: All the items are based on the technical Data: IP54, F-level insulation, 380volts, 50Hz |
Y, Y2 series of three phase asynchronous motors |
Seq. | Item Code | Rated Power (kW) | Seq. | Item Code | Rated Power (kW) |
1 | 801-2 | 0.75 | 56 | 250M-4 | 55 |
2 | 802-2 | 1.1 | 57 | 250M-6 | 37 |
3 | 801-4 | 0.55 | 58 | 250M-8 | 30 |
4 | 802-4 | 0.75 | 59 | 280S-2 | 75 |
5 | 802-6 | 0.55 | 60 | 280M-2 | 90 |
6 | 90S-2 | 1.5 | 61 | 280S-4 | 75 |
7 | 90L-2 | 2.2 | 62 | 280M-4 | 90 |
8 | 90S-4 | 1.1 | 63 | 280S-6 | 45 |
9 | 90L-4 | 1.5 | 64 | 280M-6 | 55 |
10 | 90S-6 | 0.75 | 65 | 280S-8 | 37 |
11 | 90L-6 | 1.1 | 66 | 280M-8 | 45 |
12 | 100L-2 | 3 | 67 | 315M-2 | 132 |
13 | 100L1-4 | 2.2 | 68 | 315L1-2 | 160 |
14 | 100L2-4 | 3 | 69 | 315L2-2 | 200 |
15 | 100L-6 | 1.5 | 70 | 315S-4 | 110 |
16 | 112M-2 | 4 | 71 | 315M-4 | 132 |
17 | 112M-4 | 4 | 72 | 315L1-4 | 160 |
18 | 112M-6 | 2.2 | 73 | 315L2-4 | 200 |
19 | 132S1-2 | 5.5 | 74 | 315S-6 | 75 |
20 | 132S2-2 | 7.5 | 75 | 315M-6 | 90 |
21 | 132S-4 | 5.5 | 76 | 315L1-6 | 110 |
22 | 132M-4 | 7.5 | 77 | 315L2-6 | 132 |
23 | 132S-6 | 3 | 78 | 315S-8 | 55 |
24 | 132M1-6 | 4 | 79 | 315M-8 | 75 |
25 | 132M2-6 | 5.5 | 80 | 315L1-8 | 90 |
26 | 132S-8 | 2.2 | 81 | 315L2-8 | 110 |
27 | 132M-8 | 3 | 82 | 315S-10 | 45 |
28 | 160M1-2 | 11 | 83 | 315M-10 | 55 |
29 | 160M2-2 | 15 | 84 | 315L1-10 | 75 |
30 | 160L-2 | 18.5 | 85 | 315L2-10 | 90 |
31 | 160M-4 | 11 | 86 | 355M1-2 | 220 |
32 | 160L-4 | 15 | 87 | 355M2-2 | 250 |
33 | 160M-6 | 7.5 | 88 | 355L1-2 | 280 |
34 | 160L-6 | 11 | 89 | 355L2-2 | 315 |
35 | 160M1-8 | 4 | 90 | 355M1-4 | 220 |
36 | 160M2-8 | 5.5 | 91 | 355M2-4 | 250 |
37 | 160L-8 | 7.5 | 92 | 355L1-4 | 280 |
38 | 180M-2 | 22 | 93 | 355L2-4 | 315 |
39 | 180M-4 | 18.5 | 94 | 355M1-6 | 160 |
40 | 180L-4 | 22 | 95 | 355M1-6 | 185 |
41 | 180L-6 | 15 | 96 | 355M2-6 | 200 |
42 | 180L-8 | 11 | 97 | 355L1-6 | 220 |
43 | 200L1-2 | 30 | 98 | 355L2-6 | 250 |
44 | 200L2-2 | 37 | 99 | 355M1-8 | 132 |
45 | 200L-4 | 30 | 100 | 355M2-8 | 160 |
46 | 200L1-6 | 18.5 | 101 | 355L2-8 | 200 |
47 | 200L2-6 | 22 | 102 | 355M1-10 | 110 |
48 | 200L-8 | 15 | 103 | 355M2-10 | 132 |
49 | 225M-2 | 45 | 104 | 355L-10 | 160 |
50 | 225S-4 | 37 | 105 | 180L1-2 | 30 |
51 | 225M-4 | 45 | 106 | 200L2-2 | 45 |
52 | 225M-6 | 30 | 107 | 225M-2 | 55 |
53 | 225S-8 | 18.5 | 108 | 250M-2 | 75 |
54 | 225M-8 | 22 | 109 | 280M-2 | 110 |
55 | 250M-2 | 55 | 110 | 280M-2 | 132 |
