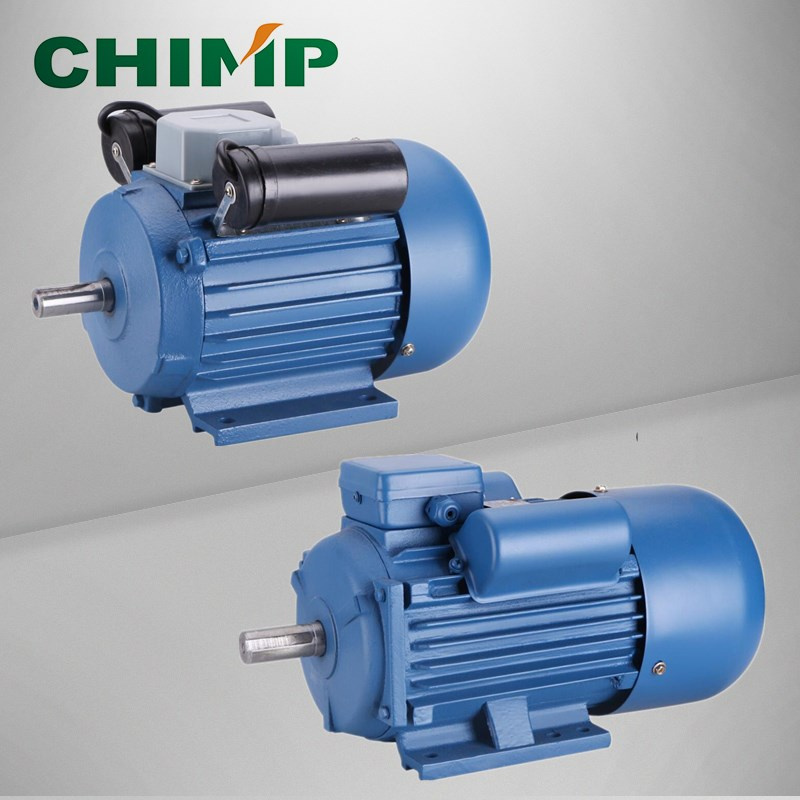

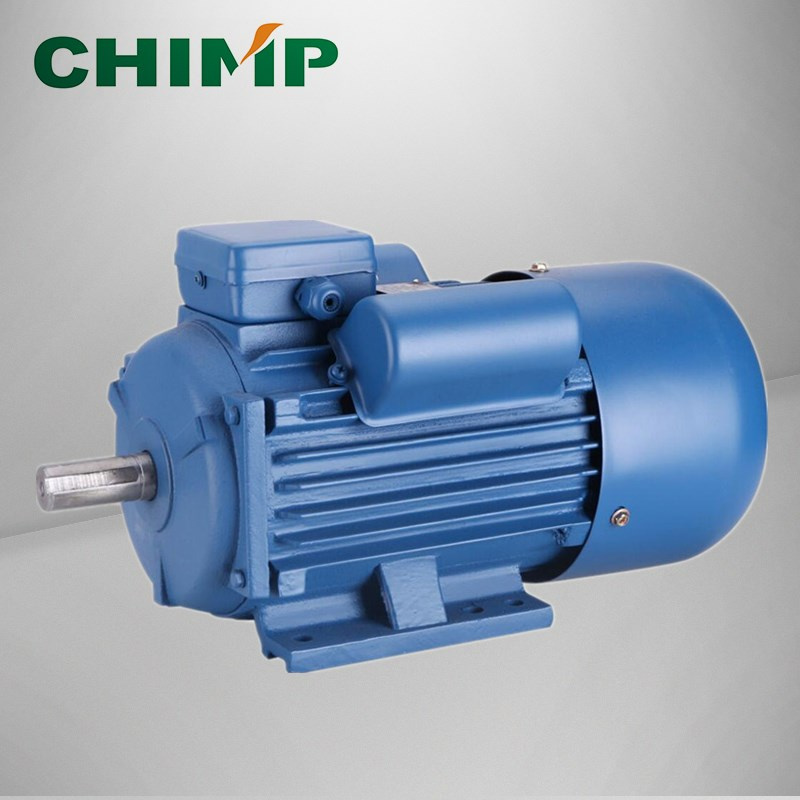

YL double capacitor Single-Phase Cast iron or al. casing Electric Motors
Product Description
Feature
Yc series Single-phase two-value capacitor asynchronous motor is GB combined with international standards for design and manufacturing. Which is characterized by excellent starting and running performance. Low noise,small vibaration,compact structure,light weight and easy maintenance characteristics. Widely used in air compressors,pumps and other Mechanical equipment.
Rated Parameters:
Base Center Height:71-100mm Power Range: 0.25-3.7kW
Rated Voltage: 220V Rated Frequency: 50HZ (or 60HZ)
Nsulation Class: B Protection Class: IP54 (or IP55)
Work System: S1
Mounting Structure:
B3 Frame without foot cover end flange
B35 Frame with foot cover end flange
B5 Frame with foot cover end flange
| Type | Output | Rated Current | Rated Speed | η | Power Factor | Locked-rotor current
Rated current | Locked-rotor torque
Rated troque | Pull-out torque
Rated torque |
| kW | IN(A) | nN(rpm) | % | (cos Φ) | Tst/TN | Ist/TN | Tmax/TN |
| YC711-2 | 0.18 | 1.9 | 2800 | 63 | 0.70 | 3 | 6.5 | 2.0 |
| YC-712-2 | 0.25 | 2.4 | 2800 | 65 | 0.72 | 3 | 6.5 | 2.0 |
| YC80A-2 | 0.37 | 3.5 | 2840 | 66 | 0.77 | 3 | 6.5 | 2.0 |
| YC80B-2 | 0.55 | 5.04 | 2850 | 67 | 0.74 | 3 | 6.5 | 2.0 |
| YC80C-2 | 0.75 | 6.68 | 2850 | 68 | 0.75 | 3 | 6.5 | 2.0 |
| YC90S-2 | 1.1 | 8.93 | 2850 | 70 | 0.80 | 2.8 | 7 | 2.0 |
| YC90L-2 | 1.5 | 11.4 | 2870 | 73 | 0.82 | 2.8 | 7 | 2.0 |
| YC100L-2 | 2.2 | 16.5 | 2900 | 74 | 0.82 | 2.5 | 7 | 2.0 |
| YC112M1-2 | 3 | 21.4 | 2900 | 76 | 0.84 | 2.2 | 7 | 2.0 |
| YC112M2-2 | 3.7 | 24.8 | 2900 | 79 | 0.86 | 2.2 | 7 | 2.0 |
EXPLODED VIEW:
| NO. | Name of parts | | NO. | Name of parts |
| 1 | Shaft head sheath | | 23 | Gasket |
| 2 | Bolt | | 24 | Connect strap |
| 3 | Spring washer | | 25 | Screw |
| 4 | Front bearing cap | | 26 | Screw |
| 5 | Wave washer | | 27 | Terminal cover |
| 6 | Bearing | | 28 | Capacitor cover |
| 7 | Motor housing | | 29 | Capacitor |
| 8 | Wire sheath | | 30 | Nameplate |
| 9 | Sheath nut | | 31 | Stator |
| 10 | Rubber sealing washer | | 32 | Key |
| 11 | Terminal box | | 33 | Rotor |
| 12 | Grounding mark | | 34 | Insulation sleeve |
| 13 | Terminal board | | 35 | Bearing |
| 14 | Screw | | 36 | Back cover |
| 15 | Screw | | 37 | Protection cover |
| 16 | Screw | | 38 | Centurifugal switch |
| 17 | Gasket | | 39 | Screw |
| 18 | Gasket | | 40 | Bolt |
| 19 | Terminal | | 41 | Fan |
| 20 | Terminal | | 42 | Circlip |
| 21 | Nut | | 43 | Fan cover |
| 22 | Nut | | 44 | Screw |
FAQ
Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container. However, we accept the small qty for trial order to check quality.
Q: Is it acceptable to make customers' own brand?
A: Yes, sure. OEM is also our service scope.
Q: What are your payment terms?
A: 30% T/T as deposit, 70% against documents, or L/C at sight.
Q: How long is your warranty?
A: One year!
Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.
