| Prod Model: |
YD Series |
| Application: |
Power Tools |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
Auto-induction Voltage-reduced Starting |
| Species: |
Yd |
| Number Of Poles: |
2/4/6/8 |
| Brand: |
Dongfeng or OEM |
Product Description
Product Description

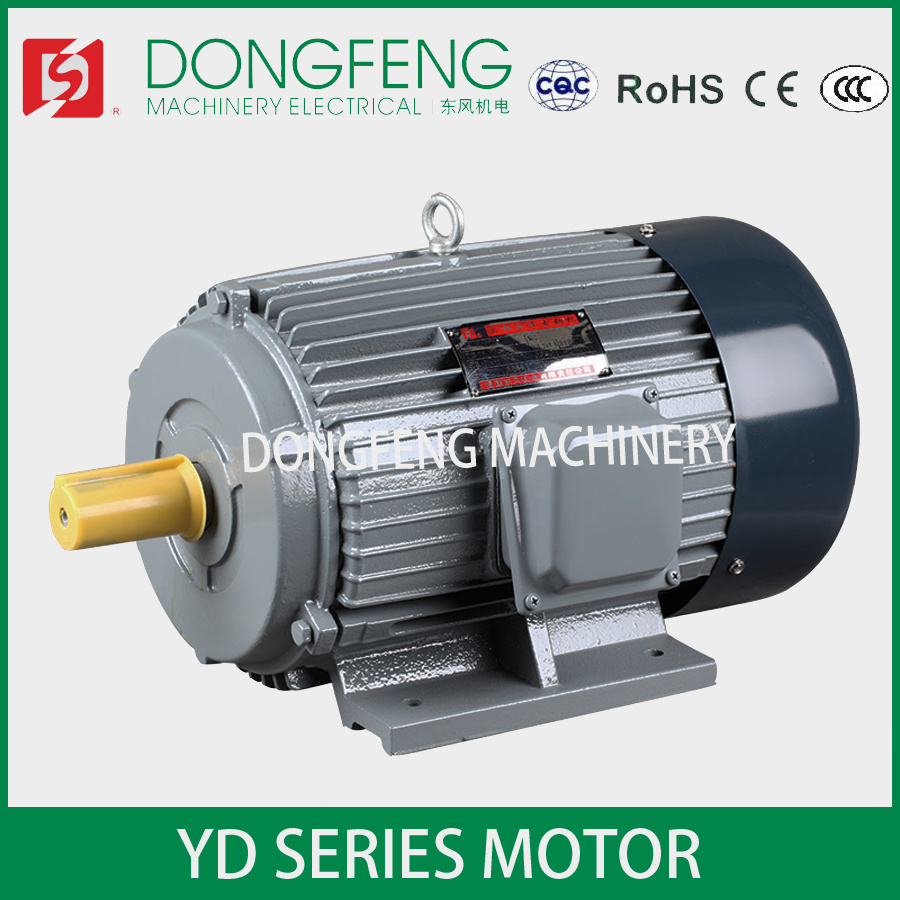

Introduction:
YD series is one of the main derived series of Y series,a national unified designed latest product in China and a replacement type for the JOD2 series.It can change speed easily.The speed of this series motor can be changed step by step according to the requirements ofload characteristics, there by reaching the aims of economizing on electricity and simplifying the system of speed variation.This series of motor has great starting torque and low noise and vibration,and its mounting dimensions are complied with the standard of the International Electrotechnical Commission(IEC),it has a fairly good interchange ability as compared with the similar products of the same kind so that it is easy to maintain and used widely in the industrial departments of machine tools,chemical industry,textile, metallurgy and mine,etc.
Motor Features:
1. Frame size:H80-280;
2. Power:0.45-82KW;
3. Voltage:380V;
4. Rated Frequency: 50 Hz ;
5. Poles: 2 / 4 / 6 / 8
6. Speed: 700 -3000 r/min
7. Ambient Temperature: -15°C-40°C
8. Model of CONEECTION: Y-Connection for 3 KW motor or less while Delta-Connection for 4 KW motor or more;
9. Duty: continuous (S1);
10. Insulation Class: B;
11. Protection Class: IP44,IP54;
12. Frame material: aluminum body
13. Cooling Method: ICO141 Standards;
14. Altitude: No more than 1,000 meters above sea level;
15. Packing: 80-112 frame be packaged by carton&pallets
132-280 frame be packaged by wooden case;
16. Certifications: CE, CCC, ISO9001: 2008
Type | Output | Rated current | Rated speed | η | Power factor | Locked-rotor current Rated current | Locked-rotor torque Rated troque | Pull-out torque Rated torque |
KW | IN(A) | nN(rmp) | (%) | (cos Φ) | Tst/TN | Ist/TN | Tmax/TN |
YD90L | 0.45 | 1.9 | 700 | 58 | 0.63 | 1.5 | 5.5 | 1.8 |
0.75 | 1.92 | 1420 | 72 | 0.87 | 1.5 | 6.5 | 1.8 |
YD100L | 0.85 | 3.1 | 700 | 68 | 0.63 | 1.5 | 5.5 | 1.8 |
1.5 | 3.5 | 1420 | 75 | 0.88 | 1.5 | 6.5 | 1.8 |
YD112M | 1.5 | 5.0 | 700 | 75 | 0.63 | 1.5 | 5.5 | 1.8 |
2.4 | 5.3 | 1420 | 78 | 0.88 | 1.5 | 6.5 | 1.8 |
YD132S | 2.2 | 7.0 | 720 | 75 | 0.64 | 1.5 | 5.5 | 1.8 |
3.3 | 7.1 | 1440 | 80 | 0.88 | 1.5 | 6.5 | 1.8 |
YD132M | 3 | 9.0 | 720 | 78 | 0.65 | 1.5 | 5.5 | 1.8 |
4.5 | 9.4 | 1440 | 82 | 0.88 | 1.5 | 6.5 | 1.8 |
YD160M | 5 | 13.9 | 730 | 83 | 0.66 | 1.5 | 5.5 | 1.8 |
7.5 | 15.2 | 1450 | 84 | 0.89 | 1.5 | 6.5 | 1.8 |
YD160L | 7 | 19.0 | 730 | 85 | 0.66 | 1.5 | 5.5 | 1.8 |
11 | 21.8 | 1450 | 86 | 0.89 | 1.5 | 6.5 | 1.8 |
YD180L | 11 | 26.0 | 730 | 86 | 0.74 | 1.5 | 6 | 1.8 |
17 | 31.5 | 1470 | 87 | 0.92 | 1.5 | 7 | 1.8 |
YD200L1 | 14 | 33.0 | 740 | 86 | 0.74 | 1.5 | 6 | 1.8 |
22 | 41.3 | 1470 | 88 | 0.92 | 1.5 | 7 | 1.8 |
YD200L2 | 17 | 40.1 | 740 | 87 | 0.74 | 1.5 | 6 | 1.8 |
26 | 48.8 | 1470 | 88 | 0.92 | 1.5 | 7 | 1.8 |
YD225M | 24 | 53.2 | 740 | 89 | 0.77 | 1.4 | 6 | 1.8 |
34 | 66.7 | 1480 | 88 | 0.88 | 1.3 | 7 | 1.8 |
YD250M | 30 | 64.9 | 740 | 90 | 0.78 | 1.4 | 6 | 1.8 |
42 | 78.8 | 1480 | 89 | 0.91 | 1.3 | 7 | 1.8 |
YD280S | 40 | 83.5 | 740 | 91 | 0.80 | 1.4 | 6 | 1.8 |
55 | 102 | 1480 | 90 | 0.91 | 1.3 | 7 | 1.8 |
YD280M | 47 | 96.9 | 680 | 91 | 0.81 | 1.4 | 6 | 1.8 |
67 | 122.9 | 930 | 90 | 0.92 | 1.3 | 7 | 1.8 |
YD90S | 0.35 | 1.6 | 680 | 56 | 0.60 | 1.4 | 6 | 1.8 |
0.45 | 1.4 | 930 | 70 | 0.72 | 1.3 | 7 | 1.8 |
YD90L | 0.45 | 1.9 | 710 | 59 | 0.60 | 1.5 | 5 | 1.8 |
0.65 | 1.9 | 950 | 71 | 0.73 | 1.5 | 6 | 1.8 |
YD100L | 0.75 | 2.9 | 710 | 65 | 0.60 | 1.5 | 5 | 1.8 |
1.1 | 3.1 | 950 | 75 | 0.73 | 1.5 | 6 | 1.8 |
YD112M | 1.3 | 4.5 | 710 | 72 | 0.61 | 1.5 | 5 | 1.8 |
1.8 | 4.8 | 950 | 78 | 0.73 | 1.5 | 6 | 1.8 |
YD132S | 1.8 | 5.8 | 730 | 75 | 0.62 | 1.5 | 5 | 1.8 |
2.4 | 6.2 | 970 | 80 | 0.73 | 1.5 | 6 | 1.8 |
YD132M | 2.6 | 8.2 | 730 | 78 | 0.62 | 1.5 | 5 | 1.8 |
3.7 | 9.4 | 970 | 82 | 0.73 | 1.5 | 6 | 1.8 |
YD160M | 4.5 | 13.3 | 930 | 83 | 0.62 | 1.5 | 5 | 1.8 |
6 | 14.7 | 980 | 85 | 0.73 | 1.5 | 6 | 1.8 |
YD160L | 6 | 17.5 | 930 | 84 | 0.62 | 1.5 | 5 | 1.8 |
8 | 19.4 | 980 | 86 | 0.73 | 1.5 | 6 | 1.8 |
YD180M | 7.5 | 21.9 | 930 | 84 | 0.62 | 1.5 | 5 | 1.8 |
10 | 24.2 | 980 | 86 | 0.73 | 1.5 | 6 | 1.8 |
YD180L | 9 | 24.8 | 730 | 85 | 0.65 | 1.5 | 5 | 1.8 |
12 | 28.3 | 980 | 86 | 0.75 | 1.5 | 6 | 1.8 |
YD200L1 | 12 | 32.5 | 730 | 86 | 0.65 | 1.5 | 5 | 1.8 |
17 | 39.1 | 980 | 87 | 0.76 | 1.5 | 6 | 1.8 |
YD200L2 | 15 | 40.3 | 730 | 87 | 0.65 | 1.5 | 5 | 1.8 |
20 | 45.4 | 980 | 88 | 0.76 | 1.5 | 6 | 1.8 |
YD100L | 0.75/1.3/1.8 | 2.62/3.66/4.53 | 940/1420/2880 | 67/72/71 | 0.65/0.75/0.85 | 1.8/1.6/1.6 | 5.5/6/7 | 1.8/1.8/1.8 |
YD112M | 1.1/2/2.4 | 3.52/5.14/5.80 | 940/1440/2890 | 73/74/74 | 0.65/0.81/0.85 | 1.7/1.4/1.6 | 5.5/6/7 | 1.8/1.8/1.8 |
YD132S | 1.8/2.6/3 | 5.14/6.10/7.38 | 940/1440/2900 | 75/78/71 | 0.71/0.83/0.87 | 1.4/1.3/1.7 | 5.5/6/7 | 1.8/1.8/1.8 |
YD132M1 | 2.2/3.3/4 | 6.03/7.46/8.79 | 940/1440/2900 | 77/80/76 | 0.72/0.84/0.91 | 1.3/1.3/1.7 | 5.5/6/7 | 1.8/1.8/1.8 |
YD132M2 | 2.6/4/5 | 6.86/9.04/10.8 | 940/1440/2900 | 80/80/77 | 0.72/0.84/0.91 | 1.5/1.4/1.7 | 5.5/6/7 | 1.8/1.8/1.8 |
YD160M | 3.7/5/6 | 9.52/11.2/13.2 | 940/1440/2900 | 81/81/76 | 0.72/0.84/0.91 | 1.5/1.3/1.4 | 5.5/6/7 | 1.8/1.8/1.8 |
YD160L | 4.5/7/9 | 11.4/15.1/18.8 | 970/1490/2930 | 83/83/79 | 0.72/0.85/0.92 | 1.5/1.21.3 | 5.5/6/7 | 1.8/1.8/1.8 |
YD112M | 0.65/2/2.4 | 2.66/5.14/5.80 | 910/1460/2930 | 59/74/74 | 0.63/0.81/0.85 | 1.4/1.3/1.2 | 4.5/6/7 | 1.8/1.8/1.8 |
YD132S | 1/2.6/3 | 3.16/6.10/7.08 | 710/1440/2900 | 69/78/74 | 0.61/0.83/0.87 | 1.4/1.2/1.4 | 4.5/6/7 | 1.8/1.8/1.8 |
YD132M | 1.3/3.7/4.5 | 4.56/8.37/10.0 | 710/1440/2900 | 71/80/75 | 0.61/0.84/0.91 | 1.5/1.3/1.4 | 4.5/6/7 | 1.8/1.8/1.8 |
YD160M | 2.2/5/6 | 7.55/11.2/13.2 | 710/1440/2900 | 75/81/76 | 0.59/0.84/0.91 | 1.4/1.3/1.4 | 4.5/6/7 | 1.8/1.8/1.8 |
YD160L | 2.8/7/9 | 9.21/15.10/18.80 | 720/1460/2930 | 77/83/79 | 0.60/0.85/0.92 | 1.3/1.2/1.3 | 5.5/6.5/7 | 1.8/1.8/1.8 |
YD112M | 0.85/1/1.5 | 3.72/3.06/3.53 | 710/940/1400 | 62/68/75 | 0.56/0.73/0.86 | 1.4/1.2/1.4 | 5.5/6.5/7 | 1.8/1.8/1.8 |
YD132S | 1.1/1.5/1.8 | 4.10/4.22/4.03 | 710/940/1440 | 68/74/78 | 0.60/0.73/0.87 | 1.4/1.3/1.3 | 5.5/6.5/7 | 1.8/1.8/1.8 |
YD132M1 | 1.5/2/2.2 | 5.18/5.41/4.87 | 710/940/1440 | 71/77/79 | 0.62/0.37/0.87 | 1.3/1.5/1.4 | 5.5/6.5/7 | 1.8/1.8/1.8 |
YD132M2 | 1.8/2.6/3 | 6.13/6.84/6.55 | 710/940/1440 | 72/78/80 | 0.62/0.74/0.87 | 1.5/1.5/1.5 | 5.5/6.5/7 | 1.8/1.8/1.8 |
YD160M | 3.3/4/5.5 | 10.2/9.87/11.6 | 720/970/1460 | 79/81/83 | 0.62/0.76/0.87 | 1.7/1.4/1.5 | 5.5/6.5/7 | 1.8/1.8/1.8 |
YD160L | 4.5/6/7.5 | 13.8/14.5/15.6 | 720/970/1460 | 80/83/84 | 0.62/0.76/0.87 | 1.6/1.6/1.5 | 5.5/6.5/7 | 1.8/1.8/1.8 |

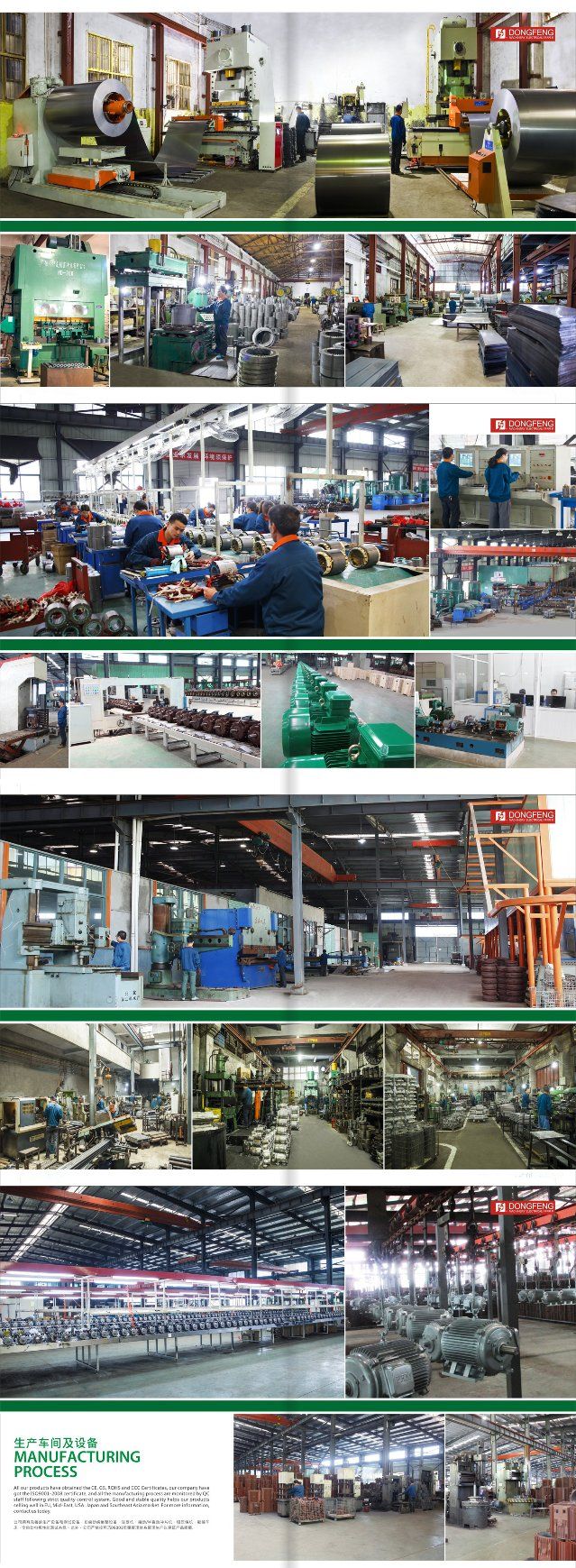

Since 1993, Fujian Dongfeng Machinery Electrical Liability Co., Ltd., as a professional electric motor manufacturer, has won a good reputation in the domestic and international market. We specialize in more than 20 series of electric motors based on the IEC standard, GOST standard and the IE1, IE2, IE3 efficiency request. By complying the strict quality control system, we have obtained the I S O 9 0 0 1 certificate, CE, CCC, RoHS certificates and etc. In order to improve the quality of our products and better control the cost in manufacturing, we produce the main spare parts of motors by ourselves, such as motor housing, lamination sheets, stator and rotor sets. And these parts are for exporting as well. Meanwhile, we have established a strong team with professional managing and marketing members, cooperating with experienced technicians to ensure the effective production and services (including OEM and ODM). With the efforts of our team, our monthly output has increase to 20, 000PCS at present. We never expect one-time business; We always look for the stable and long-term partnerships based on the mutual trust, good understanding and the continual support in each other. For more information, welcome to contact us, we will make every effort to be your best partner!
