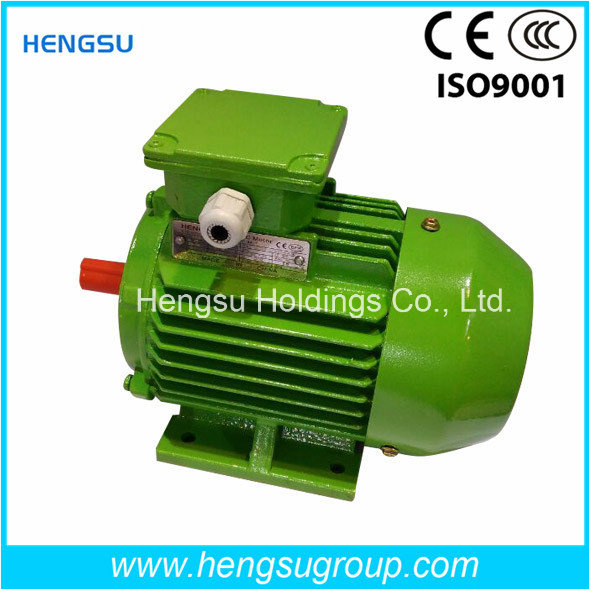

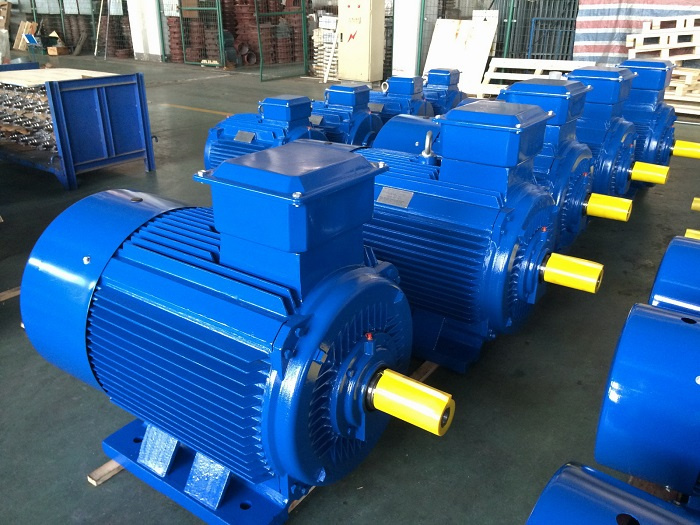

YE3 motors are three phase Asynchronous squirrel-cage induction motors, in cast iron execution, totally enclosed fan cooled (TEFC). YE3 motors are available in frame size H 80-355 in 2-4-6 and 8 poles, 10 pole on request, various combinations of two- and multi speed in frame size H80-280, unwounded size H80-132 in 2-4-6 and 8 poles, including spare parts. The terminal box is standard top mounted.
Grease lip: H180-315 motor with grease lip for regrease.
Performance:CL. F, IP55. IMB3, B5, B35,B14.
Option: Motor can add PTC to well protect the motor on request.OPERATING CONDITIONS:Ambient temperature: -15senti degree≤ 0≤ 40senti degree
Altitude: Not exceeding 1000 meters
Rated voltage: 380V, 220/380V, 380/660V, 400V, 415V
Rated frequency: 50Hz / 60 HzConnection:Y Start-connection for 3KW and below
Delta-connection for 4KW or more
Duty / Rating: Continuous (S1)
Cooling type: IC411
1. We valuing every customer.
2. We cooperate with customer to design and develop new product. Provide OEM.
3. 25-30 days leading time.
4. We'd like to assist you arranging delivery things, test things or others on your request.
Why us?
1. Our Manufacturer is a professional factory for Electric Motor in China
2. Have good price in China
3. Full of export experiences.
4. 100% tested for the quality prior to shipment
5. Special motors can be designed according to customers' requirements
6. Perfect performance, low noise, slight vibration, reliable running, good appearance, small volume, light weight and easy maintenance.
7. Reliable in country, city or factory environments
8. Very low power consumption
9. Superior life
10. The standards conforms to the IEC international standard
11. Sincere and Professional Service
FAQ:
Q: What is the payment terms?
A: 30% T/T in advance, 70% before shipment, L/C at sight, Western Union or Paypal
Q: What is your delivery time?
A: Within 25-30 days after receiving deposit.
Q: Do you offer OEM service?
A: Yes. We accept OEM service.
Q: What is your MOQ of this item ?
A: 1 PC per item.
Q: Can we type our brand on it?
A: Yes of course.
Q: Where is your loading port ?
A: Ningbo Port, Shanghai Port, China.
Q: What is your production capacity?
A: About 500 PCS per day.
Hengsu Holdings Co., Ltd. is located in Zhejiang Yangtze River Delta, one of the most dynamic cities - Taizhou Economic Development Zone. There are three subsidiary companies: Sanmen Hengsu Motor Co., Ltd., Zhejiang Hengsu Electric Motor Co., Ltd., Jiangsu Shilin Electric Motor Co., Ltd., having total land area of more than 200000m2, a building area of 100000m2, jointly established the production of small and medium-sized production base for kinds of electric motors
The company focus on R & D and production of the wider use of technology, advanced small and medium-sized electric motors for domestic and foreign markets, the main products are in line with the international IEC standard three-phase asynchronous motors Y series cast iron motor and Y2 series with cast iron and aluminum housing motor, and the derivative of YB2 series explosion-proof motor, YEJ series electromagnetic brake motor, YVF series frequency adjustable-speed motor, YCT series electromagnetic adjustable-speed motor, YD series pole-changing multi-speed motor, YHSD series soft-start electromagnetic, HS series buffer deceleration motor products; And IEC standard YC and YL single phase electric motor, annual output capacity of 4, 000, 000 kilowatts.
The company established a strong R & D team to continuously optimize the product design and manufacturing processes, improve quality control and advanced production testing equipment, with the characteristics of modern management model, the company strictly in accordance with international standards ISO9001: 2008 quality system implementation of comprehensive-our products have got CE, SGS, and CCC certificate. Companies in innovation, creating value for customers of the purpose and dedication to providing our customers with high quality products and best services
