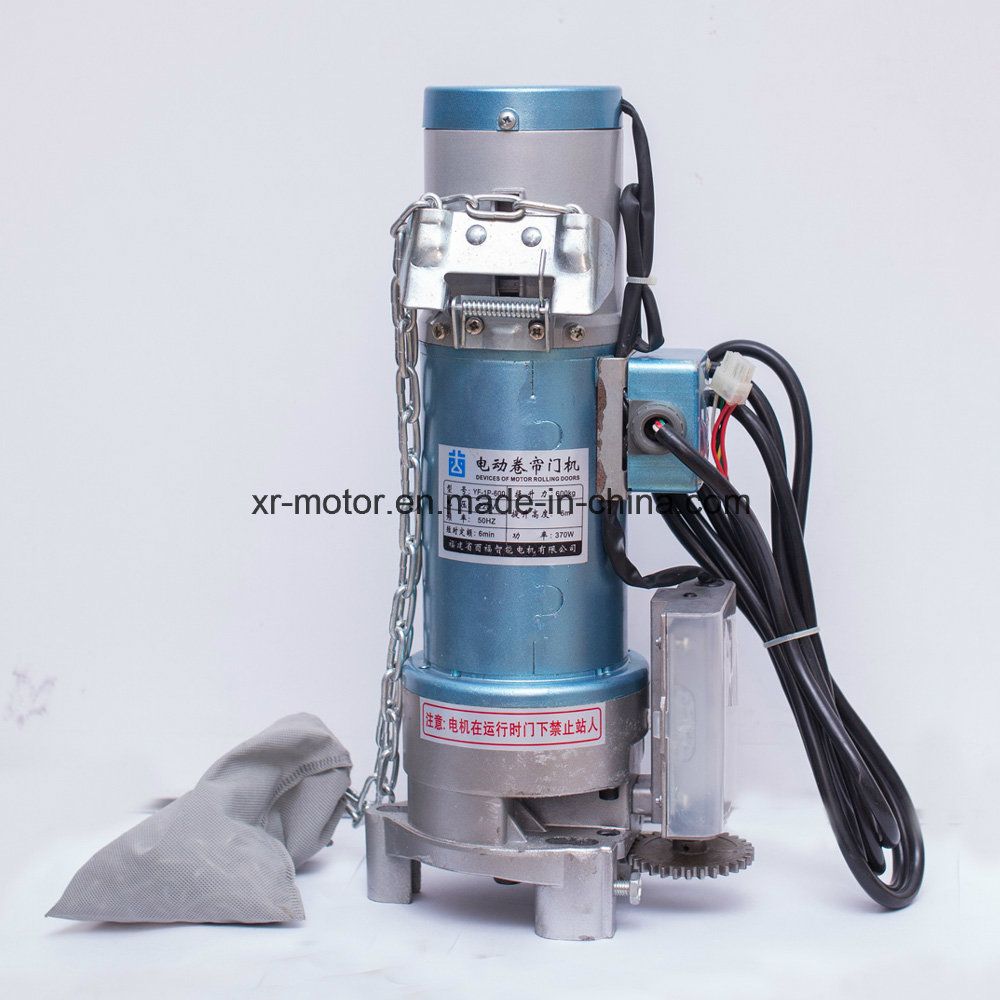

Yf 1000-3p Biphasic Electric Rolling Door Motor
| Price: |
US $ 170-200/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P |
√ Specializing in Electric Motor 25 Years ==√ Own Exporting License ==√ Strong Research and Production Capability ==√ Quality Management == √ Competitive Price ==√ OEM & ODM ==√ On Time Delivery ==√ Good Logistic Service ==√ High Customer Satisfaction
Product Description
| Description | Model | Max Lifting power | Max Lifting Height(M) | Output Power | Voltage/Frequency | Bracket size(mm) |
| AC Aluminum Coil Rolling door motor with remove control | 300KG-1P | 300KG.F | 4.5 | 150W | 220V+10%/50HZ | 4"280*495*3.0 |
| 400KG-1P | 500KG.F | 5 | 180W | 220V+10%/50HZ | 4"280*495*3.0 |
| 500KG-1P | 500KG.F | 5 | 200W | 220V+10%/50HZ | 4"280*495*3.0 |
| 600KG-1P | 600KG.F | 6 | 300W | 220V+10%/50HZ | 4/5"530*320*3.5 |
| 800KG-1P | 800KG.F | 9 | 400W | 220V+10%/50HZ | 5/6"600*320*3.5 |
| 1000KG-1P | 1000KG.F | 9 | 500W | 220V+10%/50HZ | 5/6"600*320*3.5 |
| AC Copper Coil Rolling door motor with remove control | 300KG-1P | 300KG.F | 4.5 | 180W | 220V+10%/50HZ | 4"280*495*3.0 |
| 400KG-1P | 500KG.F | 5 | 200W | 220V+10%/50HZ | 4"280*495*3.0 |
| 500KG-1P | 500KG.F | 5 | 250W | 220V+10%/50HZ | 4"280*495*3.0 |
| 600KG-1P | 600KG.F | 6 | 370W | 220V+10%/50HZ | 4/5"530*320*3.5 |
| 800KG-1P | 800KG.F | 9 | 400W | 220V+10%/50HZ | 5/6"600*320*3.5 |
| 1000KG-1P | 1000KG.F | 9 | 550W | 220V+10%/50HZ | 5/6"600*320*3.5 |
| 3Phase Copper Coil Rolling door motor with remove control | 1000KG-3P | 1000KG-3P | 9 | 400W | 380V-450V/50HZ | 6"690*360*5.5 |
| 1300KG-3P | 1300KG-3P | 9 | 600W | 380V-450V/50HZ | 6/8"690*360*5.5 |
| 1500KG-3P | 1500KG-3P | 9 | 800W | 380V-450V/50HZ | 8"760*410*5.5 |
| DC Rolling door motor with control BOX | DC 300 | 300KG.F | 4.5 | 180W | DC 24V | 4"280*495*3.0 |
| DC 600 | 600KG.F | 6 | 250W | DC 24V | 4/5"530*320*3.5 |
| DC 800 | 800KG.F | 9 | | | 5/6"600*320*3.5 |
The Production Process

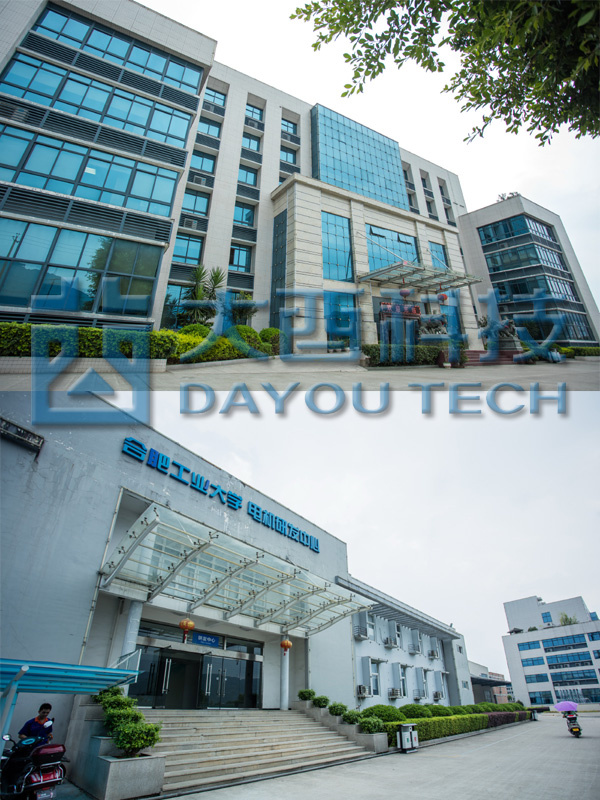

Some basic component are made by ourselves, It will help us to maintain the cost and quality.Company InformationXINRUI MACHINERY is specialized in manufacturing and exporting a wide range of electromechanical products, covering Electric Motor,Rolling Door Motor, BLDC Motor, Water pump, Alternators, Generators, etc. Now Our new energy automobile motor has been completed the small batch production. It will be mass production in next year. And our company Group "DAYOU TECH"will become listed on China soon. Office and R&D Center
Certification
Good customer relationship Visit customers regularly, understand customer quality requirements, maintain the good relationship with customers. FAQQ: Do you offer OEM service?A: YesQ: What is your payment term?A: 30% T/T in advance, 70% balance when receiving B/L copy.Or irrevocable L/C.Q: What is your lead time?A: About 30 days after receiving deposit or original L/C.Q: What certificates do you have?A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etcWhat we do:- Stamping of lamination
- Rotor die-casting
- Winding and inserting - both manual and semi-automatically
- Vacuum varnishing
- Machining shaft, housing, end shields, etc
- Rotor balancing
- Painting - both wet paint and powder coating
- Assembly
- Packing
- Inspecting spare parts every processing
- 100% test after each process and final test before packing.
Sample:According to your design,sample will be offer!!Advantage: - Low MOQ: It can meet your promotional business very well.
- Good Service : We will give professional and efficient service.
- Good Quality :We have strict quality control system.
- Fast Delivery: We can offer railway transportation if have urgent request.
- Warranty & After-sales Service: 1 years, we will give perfect after-sales service.
| Prod Model: |
YF 1000-3P |
| Voltage: |
220V/50Hz |
| Output Power: |
400W |
| Max Lifting Height(M): |
9 |
| Max Lifting Power: |
1000kg-3p |
| Rolling Tube Diameter: |
6" |
| Number Of Stator: |
Three-Phase |
| Function: |
Driving |
| Brand: |
Xinrui |
FUAN XINRUI MACHINERY Co., Ltd., founded in 2010, is a high efficiency motor manufacturer which combines researching, producing and marketing. After 6 years of development, the total area has reached 80, 000 square meters; And the total number of staff reaches more than 400 persons. Company continues to explore innovation, takes variety of advantages, and seizes every opportunity to increase marketing for many countries and areas which including Italy, Germany, UK, Belgium, Russia, Egypt, Iran, Thailand, and Malaysia, and the yearly turnover has exceeded 30 million US dollars. At present, the company has obtained the certificates including ISO 9001: 2008, ISO 14001: 2004, CCC, CE, and so on. Among our products, the IE2, IE3 high efficiency motor has been widely recognized by our overseas customers. By the high-end customer driven the entire product brand and quality improvement, company forms a strong competitiveness in the same industry, and also plays a leading role for the entire industry upstream and downstream chain upgrading. Nowadays, with great enthusiasm and persistence efforts, we are working toward a stable quality and good service oriented enterprise for customer benefits. We are expecting your kind attention, thank you.
