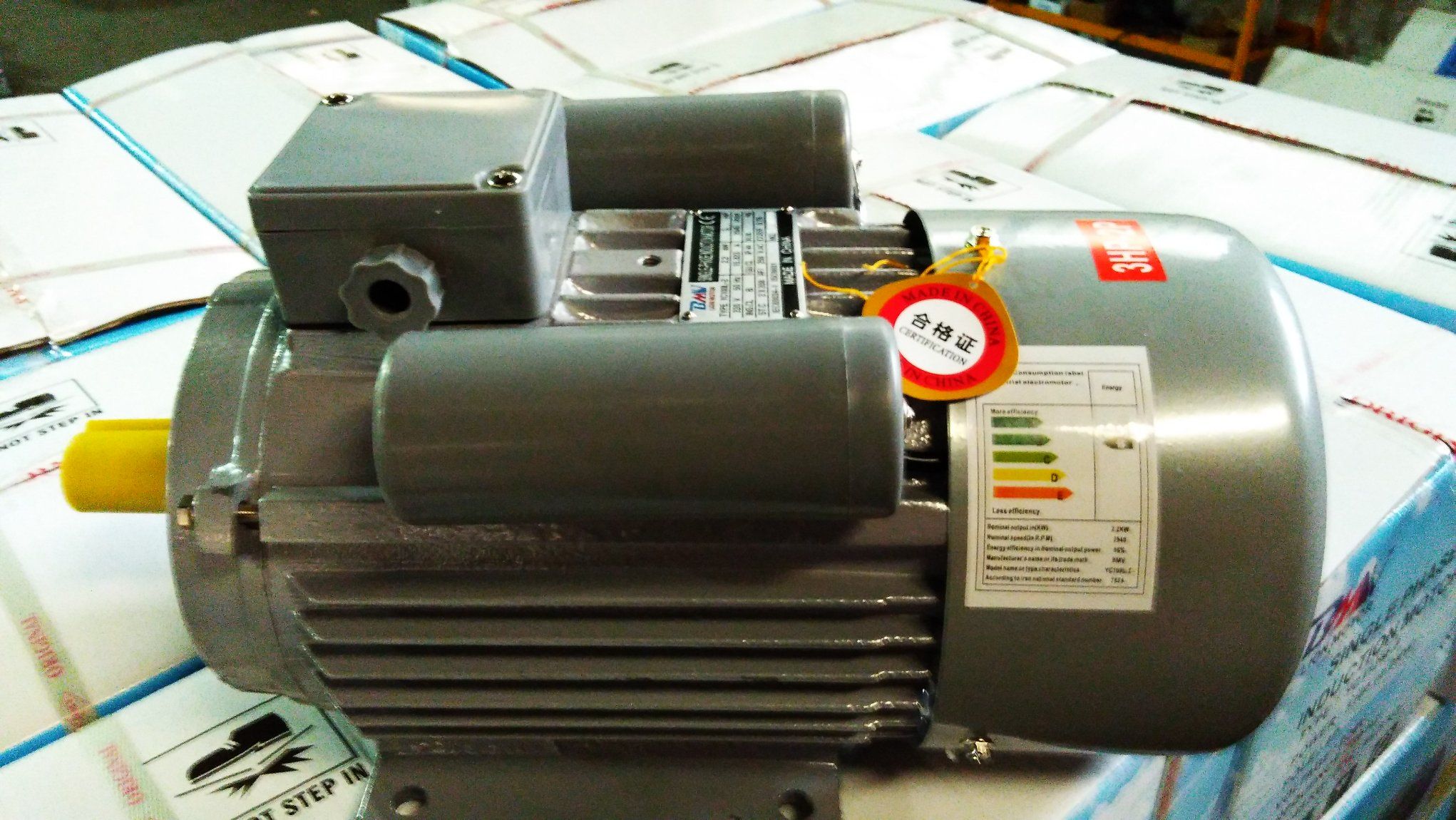

YL Single-Phase Dual-Capacitor Induction Motor (CE)

Name: YL Single-Phase Dual-Capacitor Induction Motor (CE)
Brand: all-electronics-online.com
SKU: 301022639
Availability: InStock
Rating: 5 (121 reviews)

Price:	US $ 50/Piece
Trade Terms:	FOB,others
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

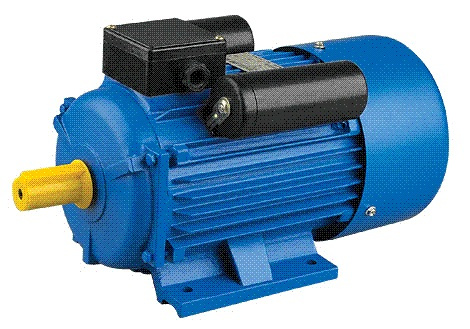

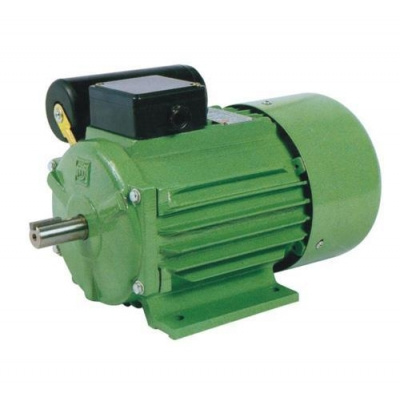

YL series single phase dual- capacitor induction motor is designed and manufactured in accordance with state standards, with outer standing performance of starting and operation, low noise, compact dimensions, light weight, easy maintenance etc.

These motors are widely used in air compressors. Pumps, fans, refrigeration, medical instruments as well as small machinery, etc, especially for occasion where only single-phase power supply is available.

Protection type: IP44
Insulation class: B
Rated voltage: 220V

Cooling type: IC0141
Duty type: Continuous running(S1)
Rated frequency: 50Hz

Any requirements, please feel free to contact with us, we can make products according your specs and supply the competition price.

Product Description

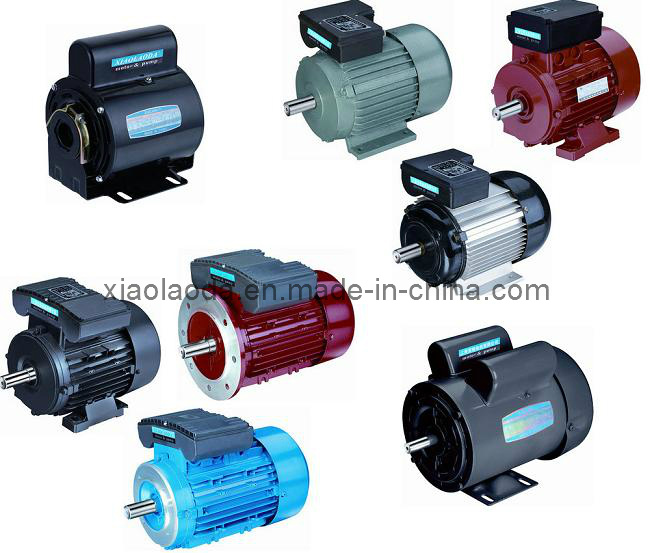

Single Phase Capacitor Motors with CE Approvaled (YC YL YY)

Features: YC series Single Phase Capacitor Start AC Electric Motors / asynchronous motor own High start torque, excellent running performance, little shape, light weight, low noise and easy maintenance.
Usage range: YC Series Single Phase Capacitor Start Asynchronous Motor is suitable for air compressor, pump and other equipment of high start torque.
Single Phase Capacitor Motors with CE Approvaled (YC YL YY)

Protection Class: IP44/IP54/IP55 Cooling Type: IC0141
Insulation Class: B or F Operation Type: S1
Rated Voltage: 115/230, 220V Rated Frequency: 60 Hz(50Hz)
Frame material: Cast iron, cast aluminum and aluminium alloy (only used below 100)

Technical Data (220V/50Hz)

Type	Power		Current (A)	Power Factor (cosΦ )	Eff (%)	Speed (r/min)
Type	Hp	kW	Current (A)	Power Factor (cosΦ )	Eff (%)	Speed (r/min)
YC7112	1/4	0.18	1.89	0.72	60	2800	3.0	7	1.8
YC7122	1/3	0.25	2.4	0.74	64	2800	3.0	7	1.8
YC8012	1/2	0.37	3.4	0.77	65	2800	2.8	6.5	1.8
YC8022	3/4	0.55	4.7	0.79	68	2800	2.8	6.5	1.8
YC90S-2	1	0.75	6.1	0.8	70	2800	3.0	6.5	1.8
YC90L-2	1.5	1.1	8.7	0.8	72	2800	2.5	7	1.8
YC90L-2	2	1.5	11.4	0.81	74	2800	2.5	7	1.8
YC100L-2	3	2.2	16.5	0.81	75	2800	2.2	7	1.8
YC100L1-2	4	3	21.88	0.82	76	2800	2.2	6.8	1.8
YC100L-2	5	3.7	26.64	0.82	77	2800	2.2	6.4	1.8
YC112M-2	4	3	21.4	0.82	76	2800	2.2	7	1.8
YC7114	1/6	0.12	1.88	0.58	50	1400	3.0	9	1.8
YC7124	1/4	0.18	2.49	0.62	53	1400	2.8	7	1.8
YC8014	1/3	0.25	3.11	0.63	58	1400	2.8	6	1.8
YC8024	1/2	0.37	4.24	0.64	62	1400	2.5	6	1.8
YC90S-4	3/4	0.55	5.5	0.69	66	1400	2.5	6	1.8
YC90L-4	1	0.75	6.9	0.73	68	1400	2.5	6.5	1.8
YC90L-4	1.5	1.1	9.6	0.74	71	1400	2.5	6.5	1.8
YC100L-4	2	1.5	12.5	0.75	73	1400	2.5	6.5	1.8
YC112M-4	3	2.2	17.8	0.76	74	1400	2.2	6.5	1.8
YC132S-4	4	3	23.6	0.77	75	1400	2.1	6.5	1.8
YC132S-4	5	3.7	28	0.79	76	1400	2.1	6.5	1.8
YC132M-4	7.5	5.5	32.5	0.95	81	1400	2.1	6.5	1.8

Prod Model:	YL Series
Markets:	South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe
Number Of Stator:	Single-Phase
Function:	Control

We changed our company name to Wenling Xinnuo Electric Motor Co., Ltd. is advanced enterprise specializing in all type of MID-size and small-size electric motors, electric machines. The products include Y and Y2 series three-phase asynchronous, MS series three-phase asynchronous motor with aluminium housing, YO2 series three-phase asynchronous motor, YL series monophase machine, YD series multispeed machine, YCT series electromagnetic ajustable-speed motor, frequency adjustable-speed motor and fractional electric motor, YEJ2 series electromagnetic-brake motor, DSM and M50/4 single-phase resistant start asynchronous motors, etc.

Our management system has been assessed and passed the ISO 9001: 2000 Certificate, our products have got the CCEE, CCC, CQC and CE certificates, moreover we are putting efforts to apply the approvals by UL, CSA, CE. The enterprise has the self-supporting import & export right.

With our high Quality, favorable price and excellent service, we are willing to cooperate with the friends in all circles to circles to create the flourishing future.
