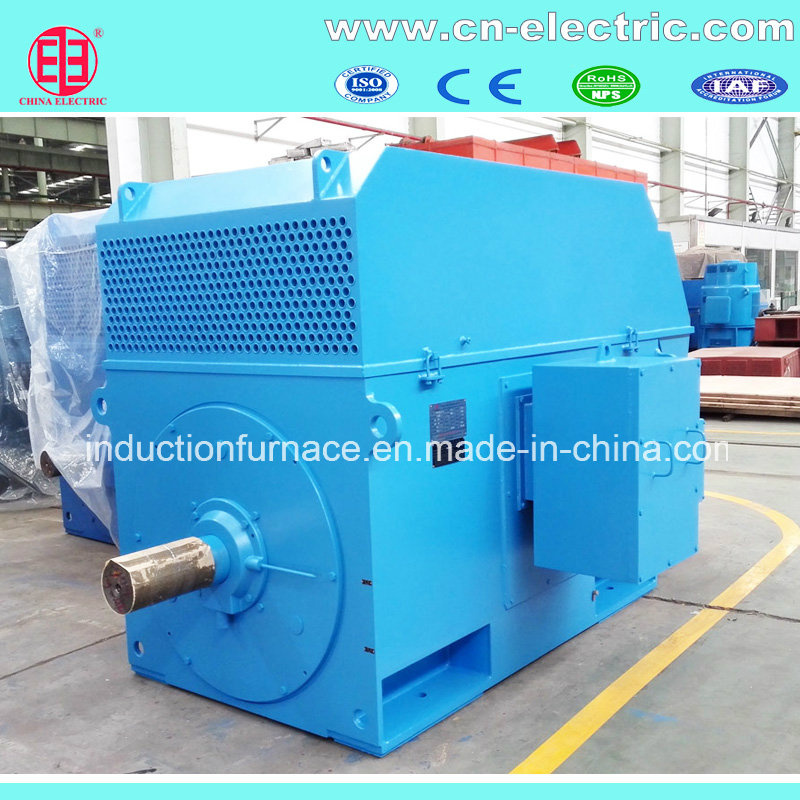

Yrkk IC616 Three-Phase Silp Ring Wound Rotor Induction Motor
Price: |
US $ 1000-30000/Piece |
Trade Terms: |
FOB,CFR |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
YRKK 100-10000kw |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Output Power: |
100kw-10000kw |
Efficiency: |
Ie1, or as Required |
Structure: |
High Voltage Slip Ring Asynchronous Motor |
Winding: |
100% Red Copper |
Protection: |
IP44, IP54, IP55, IP56 |
Driving: |
Compressor, Pump, Fan,Blower, Crusher, Cutting Lat |
Housing: |
Aluminium Shell |
Voltage: |
3kv-11kv |
Cooling Method: |
IC611, IC616, Air-to-Air Cooler Cooling |
Application: |
Industrial |
Operating Speed: |
Constant Speed |
Number Of Stator: |
Three-Phase |
Rotor Structure: |
Winding Type |
Casing Protection: |
Closed Type |
Starting Mode: |
Direct on-line Starting |
Species: |
Yrkk |
Number Of Poles: |
2,4,6,8,10,12 |
Certification: |
IEC |
Brand: |
China Electric |
Product Description
YRKK High Voltage Squrriel Cage Induction Electric Motors (Center height 355-630 m) are updated from old products JS, JSQ, JR and JRQ series.
This series of motor may be used for driving all kinds of general machines such as the compressor,ventilation fan, water pump, stock-removing machine, transportation machines and other mechanical equipment, and are applied as the prime mover in all industrial and mining enterprises such as the mine, machinery, petrochemical industry and power plant, etc.
This series of motors adopt excellent materials, manufacture sophisticated, with high force and energy indicators,low noise and small vibration , high reliability and easy to install and maintain .
This series of motor are high power , large size , electrical performance are in line with the national standard GB755 "rotary motor basic technical requirements," IEC International Electrotechnical Committee standards and machinery and electronics industry enterprise standards JB/DQ3134, JB/DQ3135, JB/DQ3436 and JB / DQ3437.
Motor frame adopt the box-type structure. adopt the use of steel plate welding machine into the box structure, light weight, good stiffness. Base on both sides of face and at the top have small holes, you can install the protective cover or lid. removed the protective cover or cover plate ,you can touched upon the internal of motor,it is very convenient for maintenance and repair of motor.
Operation conditions:
Altitude: =< 1000m;
Ambient temperature: -15- 40ºC
Input power frequency: 50Hz±l%;
Voltage: ±5% rated voltage;
Duty: S1( continuous).
Comparison of different series High Voltage motors
No. | Squirrel cage motor | Y | YKK | YKS | Y2 |
Slip ring motor | YR | YRKK | YRKS | / |
1 | Structure | Box-type construction, made up of steel plates welded with each other | Compact struction |
2 | Cooling method | IC01 or (IC11, IC21, IC31) | IC611 or IC616 | IC81W | IC411 |
3 | Natural ventilation, with top mounted protection cover | With top mounted air-air cooler | With top mounted air-water cooler |
|
4 | Protection type | IP23 | IP44 or IP54 | IP44 or IP54 | IP54 |
5 | Insulation | F |
6 | Mounting arrangement | IMB3 |
7 | Voltage available | 3kv, 3.3kv; 6kv, 6.6kv; 10kv, 11kv |
8 | Frequency available | 50Hz , 60Hz |
