| Prod Model: |
SR022-24-5/P/8S |
| Housing Diameter: |
22mm |
| Wire Numbers: |
13 |
| Contact Material: |
Precious Metal |
| Voltage: |
240VDC-240VAC |
| Speed: |
0-250rpm |
| Working Temperature: |
-20c~+80c |
| Housing Material: |
Engineering Plastic |
| Current: |
2A/Wire (Other Current Avaliable ) |
| Wire Length: |
250mm Each Side (Could Be Customized) |
| IP Grade: |
IP51, Could Be Customized |
Product Description
YUMO SR022-24-5/P/8S 13rings Capsule slip ring
Product Description
Our slip ring products are widely used in a variety of smart devices ,among diverse work rotating electrical systems: such as medical equipment, chemical reactor equipment, lifting gear equipment, CNC machinery equipment, wind power generation equipment , smart appliances, optical communication equipment, wire stranding equipment, robotics, robotic arm, the revolving door, model aircraft, aviation, automobile, shipbuilding, machinery, packaging machinery, lighting display equipment, recreational facilities, mining equipment. Our company has long provided conventional slip ring products and special slip ring for the development of well-known manufacturers of domestic production.
Type
(Standard) SR022
(A Model) SR022A
(B Model) SR022B
(C Model) SR022C
Only limit to 612 rings (D Model) SR022D
Only limit to 612 rings (E Model) SR022E
Specification List
Model | #Wires | Continous Current(amp) | D1A*LG |
2 | 6 | 10 |
SR022 SERIES |
SR022-6 | 6 | 6 | | | Φ22*19 |
SR022-12 | 12 | 12 | | | Φ22*28 |
SR022-12-2P/2S | 4 | 2 | 2 | | Φ22*28 |
SR022-15 | 15 | 2 | | | Φ22*29.5 |
SR022-18 | 18 | 18 | | | Φ22*33.4 |
SR022-18-3P | 3 | | | 3 | Φ22*33.4 |
SR022-24 | 24 | 24 | | | Φ22*41.2 |
SR022-24-4P/6S | 10 | 6 | 4 | | Φ22*41.2 |
Electric data
Specification | Unit |
Voltage | 240VDC-240VAC |
Current | Standard Product: 2A/Ring The current can be made on customers request, e.g. combine 2 rigs to get 4 A |
Lead size | AWG28.AWG26:2A, AWG16:10A Colour coded FPE insulated lead wires |
Standard Lead length | 250mm (other lengths on request) |
High pot | 500VAC@60HZ, 60s |
Insulation Resistance | 1000MΩ/500VDC |
Dynamic contact Resistance | 0.01Ω |
Mechanical data
Specification | Unit |
Operate Speed | 250 rpm |
Temperature range | -20 - + 80 |
Contact material surface | Gold - gold |
The steel bearing | The precise small steel ball bearing |

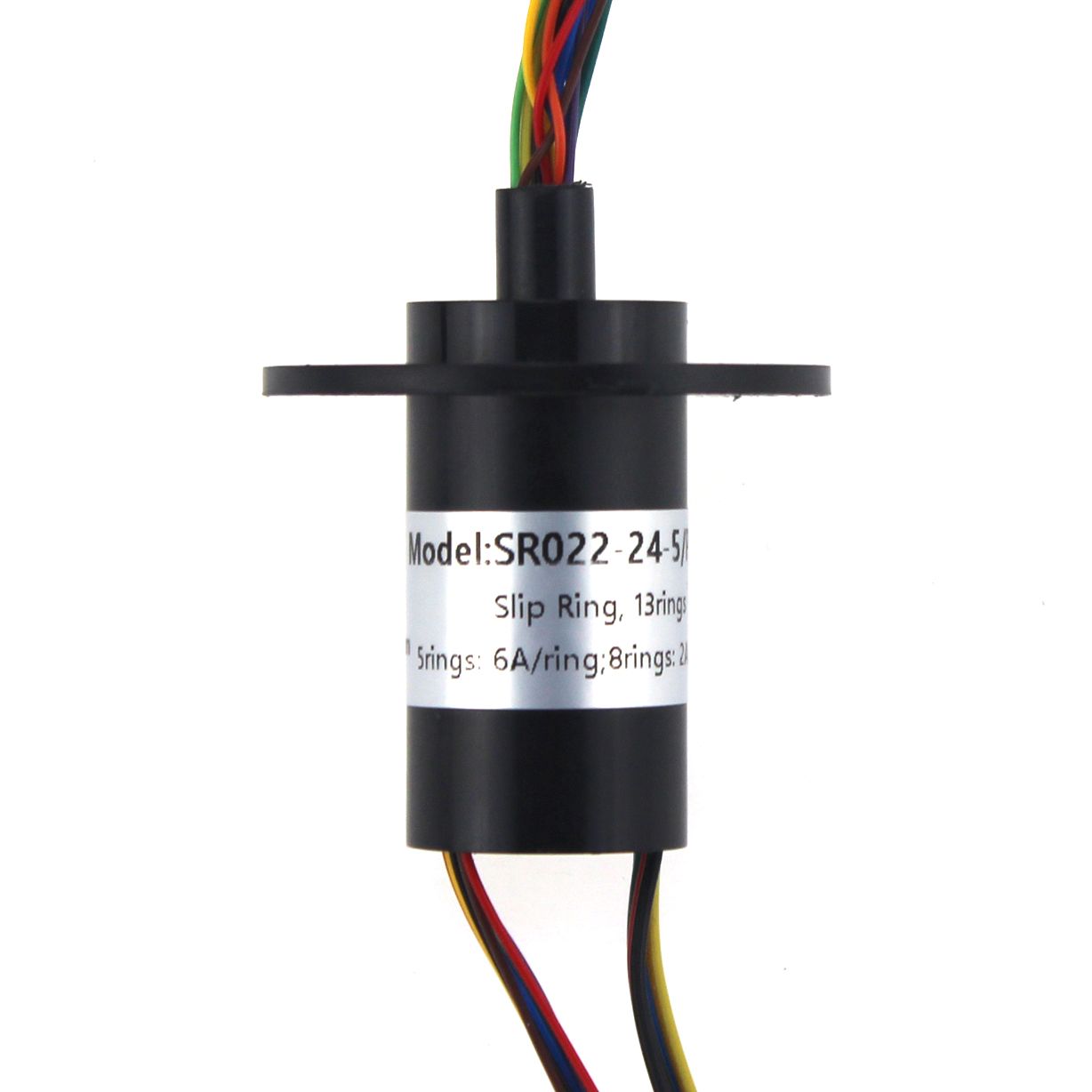

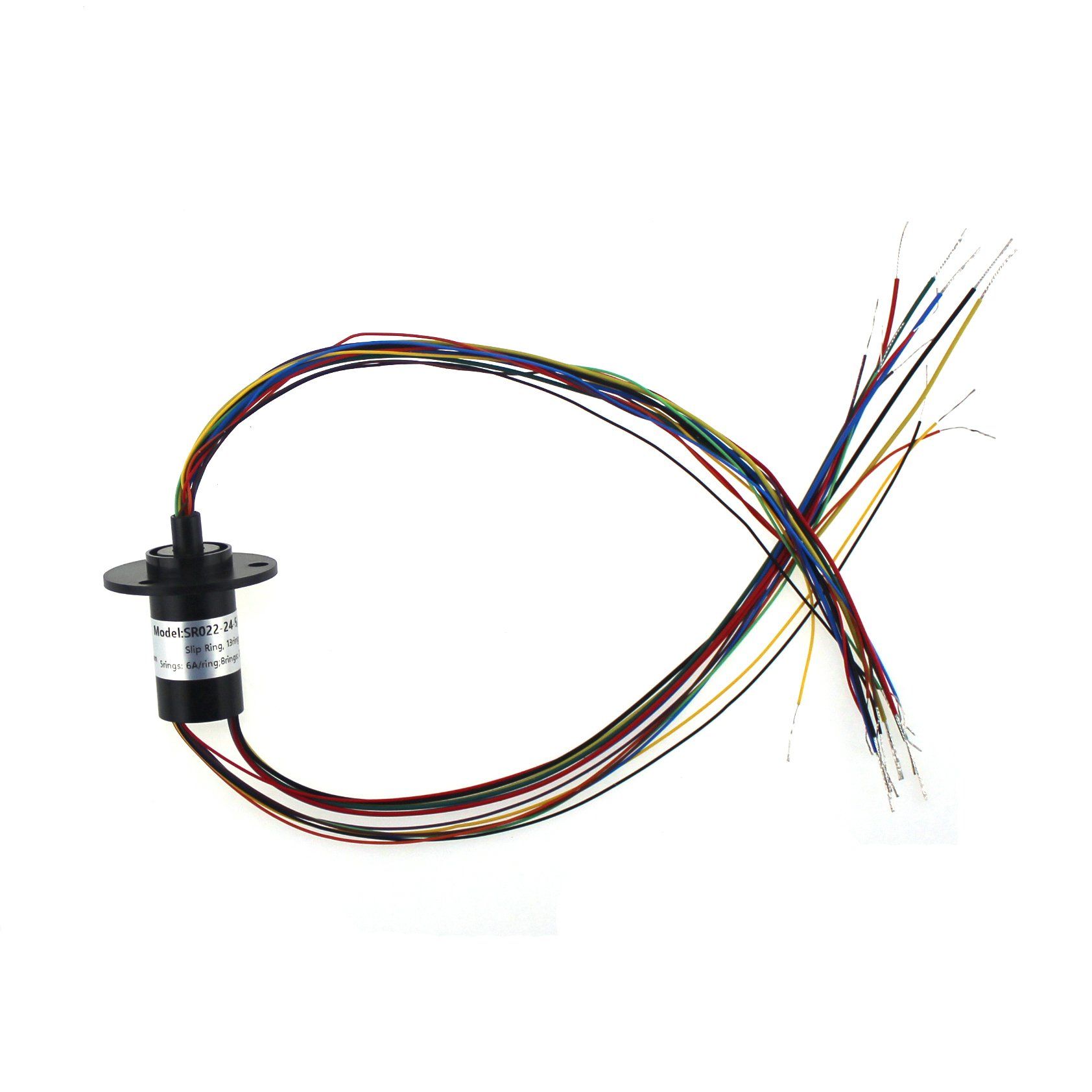

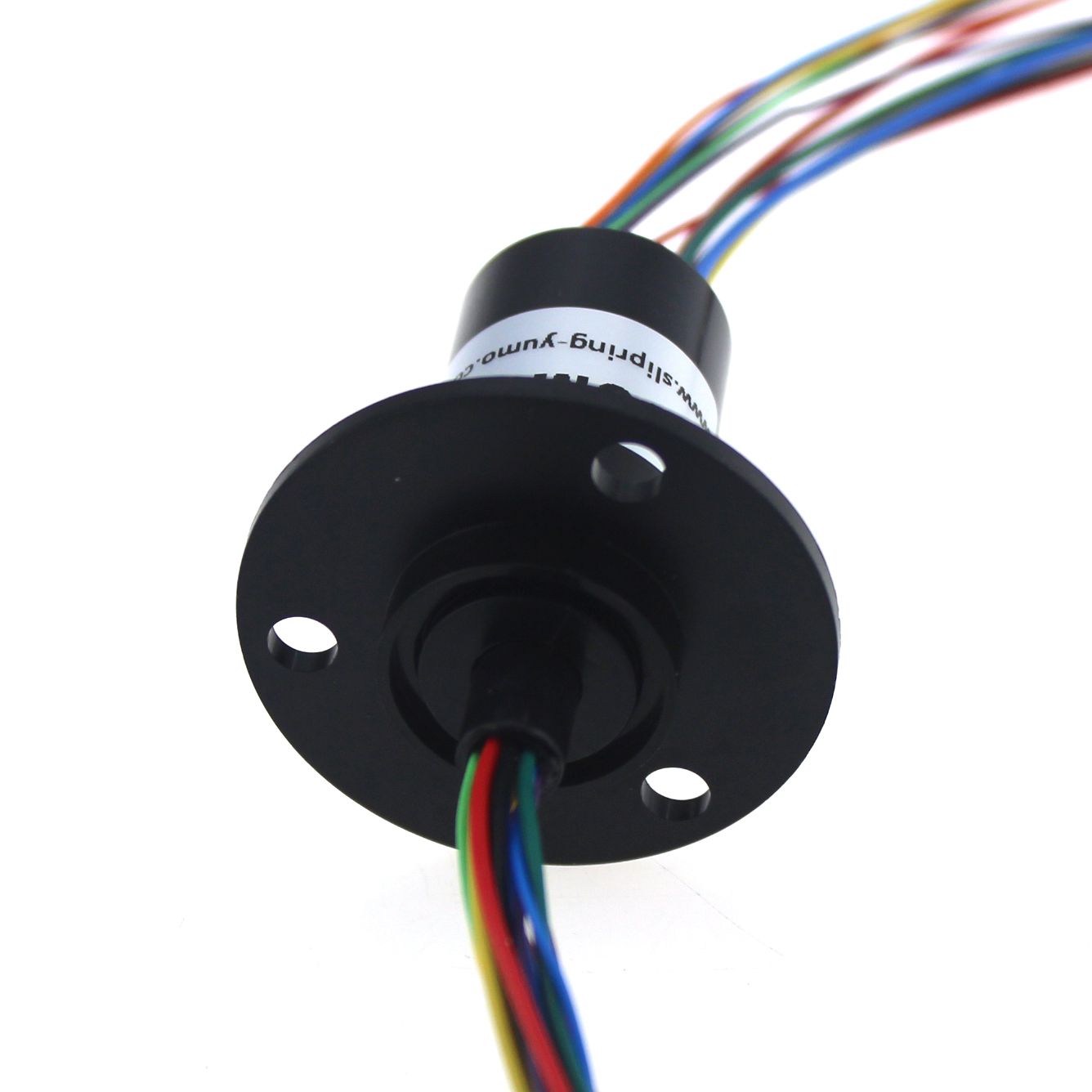

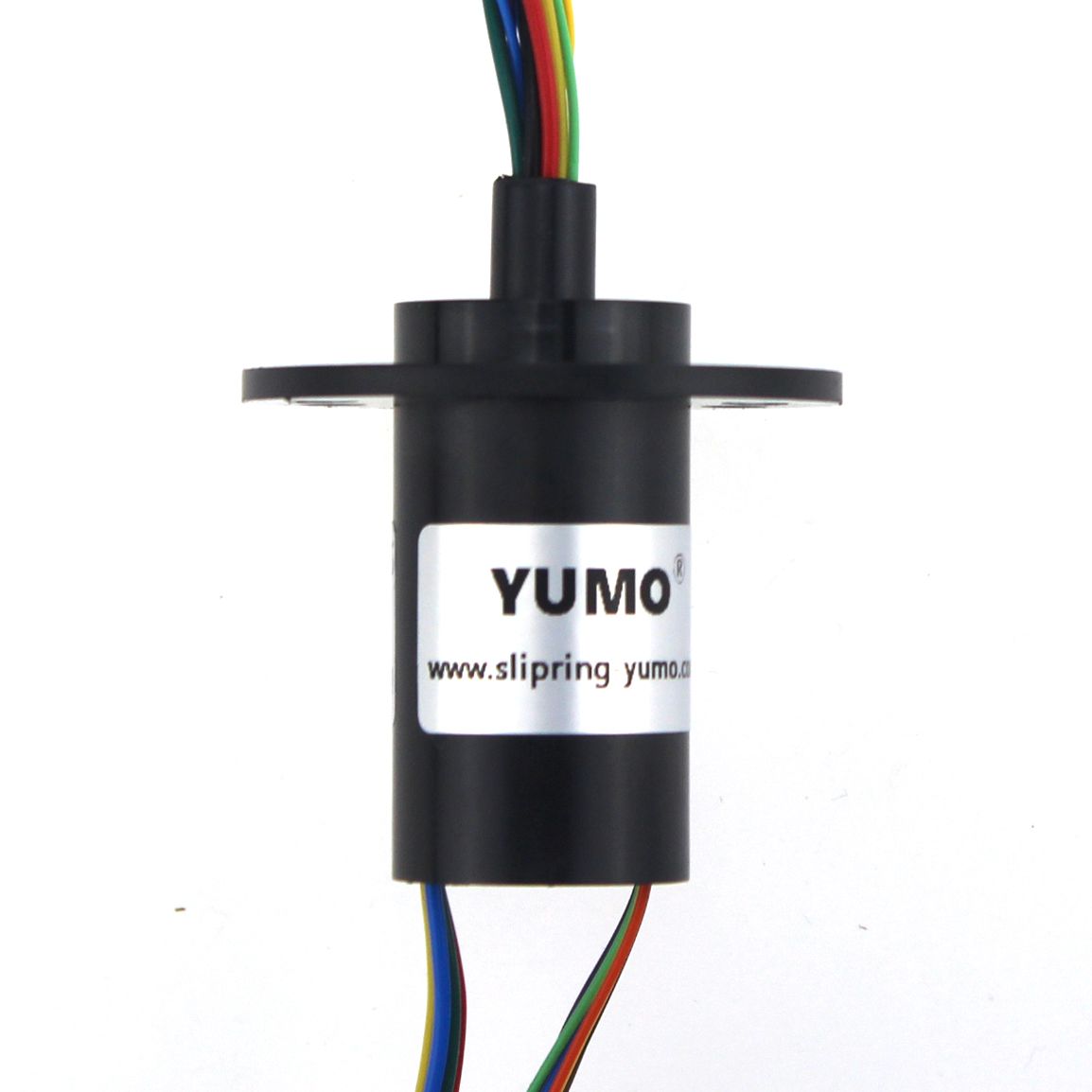

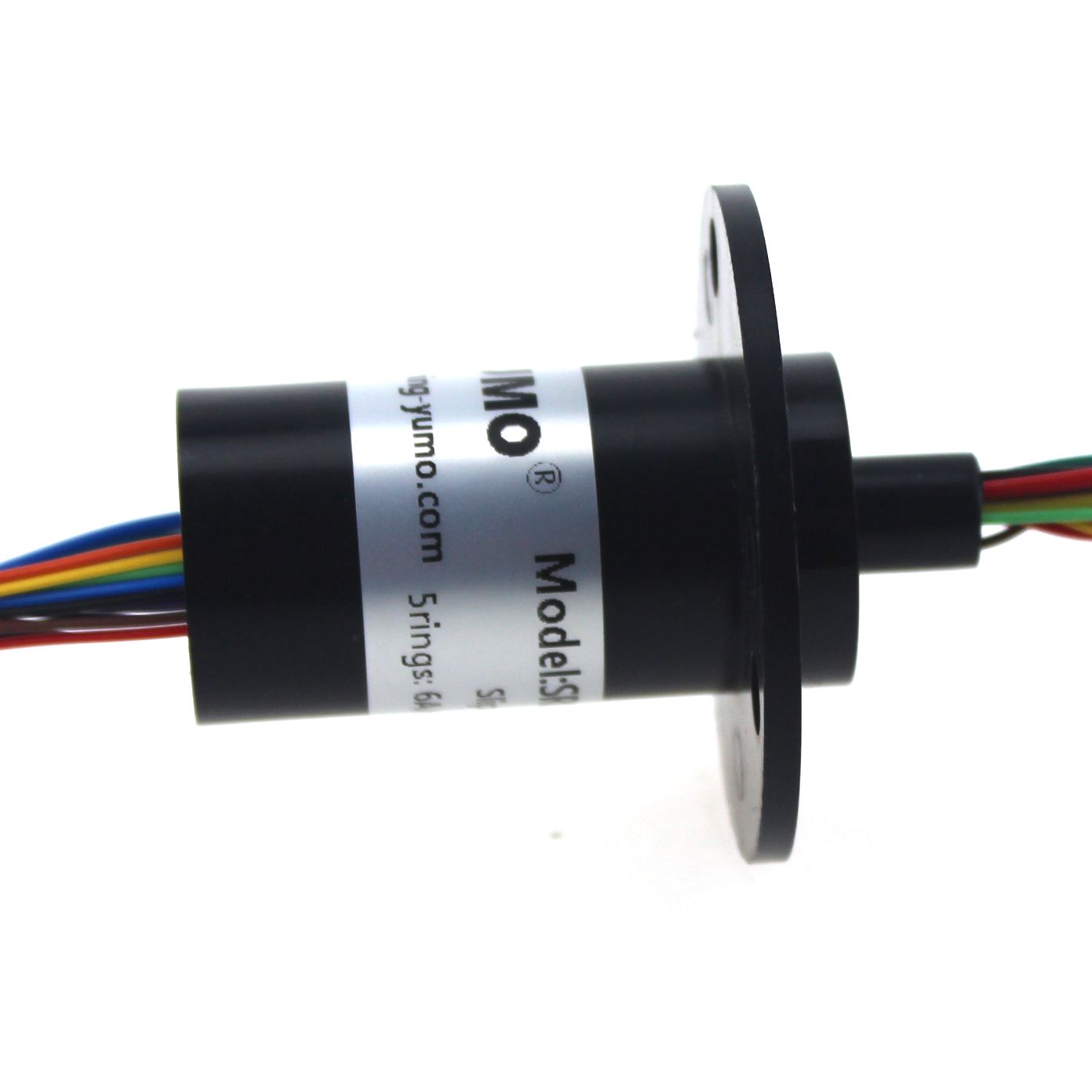

Product picture
