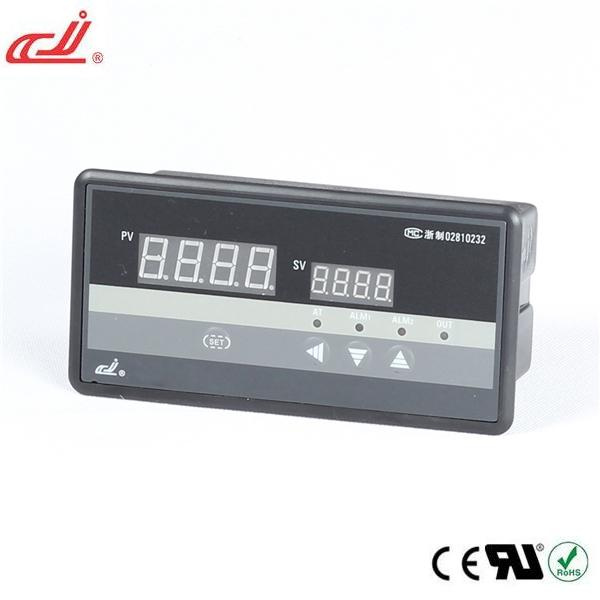

Yuyao Gongyi Meter Xmt-808 (N) Digital Temperature Meter

Product Description

Key Specifications

1. Input and rangeone meter can be compatible
(1) Thermocouple: K (-50~1300oC), S (-50~+1700oC), T (-200~+350oC), E (0~800oC), J ( 0~1000oC), B (0~1800oC), N (0~1300oC), WRe (0~2300oC)
(2) Thermal resistance: CU50 (-50~150oC) PT100 (-20~600oC)
(3) Linearity voltage05V15V01V0100mV020mV
(4) Linearity currentwith diffluent resistance010mA020mA420mA
(5) Linearity input: -1999~+9999 (user freely setting)

2. Precision
(1) Input by thermal resistance, linearity voltage and linearity current 0.5F. S± 1
(2) Thermocouple input adopt copper resistance or freezing compensate cold end 0.5 F. S± 1
(3) Although the meter can measure B, S, WRE during the temperature 0~600oC, its measurement could not reach 0.5 class
(4) differentiate rate1, 0.1

3. Response time
≤ 0.5s (filter parameter sets 0)

4. Adjusting mode
(1) ON/OFF control methodReturn difference can be adjusted
(2) Common PID controlwith the parameter of self-setting function
(3) Intelligence adjustment(including vague PID adjustment and advanced control algorithm with the parameter of self-setting function)

5. Output specificationit make out directly output parameter modularity or without modularity
(1) The switch of relay contact point outputopen+ closed250VAC/7A or 30VDC/10A
(2) SSR voltage: 12VDC/30mA(apply for driving SSR relay)
(3) Contact point output with controllable silicon: Can contact 5~500A two directions controllable silicon; 2 separate directions controllable silicon opposite direction parallel.
(4) Liner electric current output initial current and terminal current value can be defined when the output is 0~24mAvoltage range 11~23VDC

6. Communication
Support RS485communication mode, adopt AIBUS communication agreement, and baud rate support the below selection 1200bps4800bps7200bps9600bps

7. Alarm
Support two passive contact output, relay contact 250VAC/7AIt has four methods including upper limit, lower limit, positive deviation, negative deviation. It can output 2 ways at most

8. Tolerance for pressure when it is segregated
Between electric power, relays contact and signals end, do 2000V pressure tolerance test 1s, there is no abnormal phenomenon;

9. Movement with hand
Automatic /Manual

10. Power supply
(1) 85V-242VAC, 50-60HZpower consumption ≤ 4W
(2) 24VDC/AC power consumption≤ 4W
(3) 220VAC± 10% 50HZpower consumption≤ 4W

11. Working circumstance
Environment temperature: 0~50, humidity ≤ 85, no corrode and strong electromagnetism disturb

12. Product authentication
XMT*-808 series temperature meter acquire CE authentication and ROHS Environmental Protection authentication.

Operation flow chart



Product code

XMT _ -  8   _   8   __
      (1) (2) (3) (4) (5)
(1)The surface dimension:
Blank:160×80×120 Installation hole 152×76;
A:96×96×110 Installation hole 92×92;
D:72×72×110 Installation hole 68×68;
E: 48×96×110 Installation hole 44×92;
F:96×48×110 Installation hole 92×44;
S:80×160×120 Installation hole 76×156
G:48×48×110 Installation hole 44×44
(2)Control Mode:'8':four key set, two row LED display,,fuzzy control.
(3)Additional alarm:'0':no alarm ; '1':one group alarm; '3':two group alarms '5':voice alarm
(4)Signal input type:'8':freely exchange signal
(5)Suffix:
Main control output method:
'Blank':relay's open and closed contact output;
'A':Single-phase over-zero spark pulse;
'A3':Three-phase over-zero spark pulse;
'B':Single-phase shift-phase spark pulse;
'B3':Three-phase shift-phase spark pulse;
'C':0~10mA or 4~20mA constant electric current output
'E':Linearity voltage output;
'G':ON/OFF solid state relay(SSR)adjustment output;
Auxiliary ways:
'K':with RS485 or RS232 communication module interface;
'Wt':with micro-printer output signal;
'V':DC24V,DC12V,DC5V output; 'P':30 segment program
