Yy-01 Taxi Passenger Seat Sensor for Seat
| Price: |
US $ 10.5-15/Piece |
| Trade Terms: |
FOB,CIF,CIP |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |

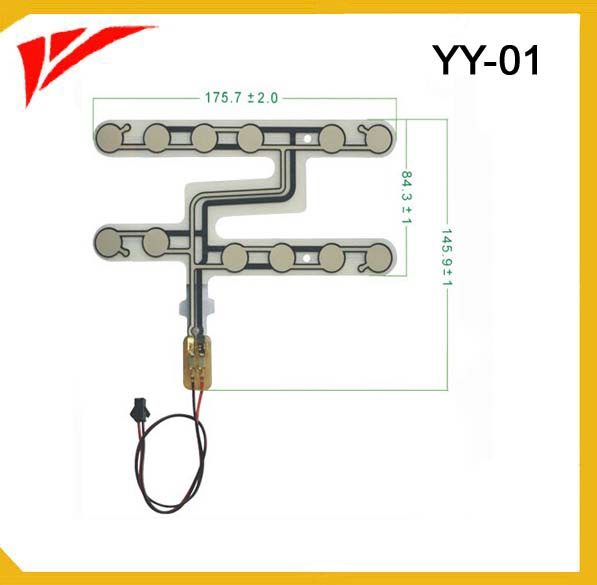

YY-01 TAXI Passenger Seat Sensor for Seat
This occupancy sensor,design for cars,taxis,GPS tracking device,safety belt etc.
It's occupancy sensor,can recognise if person on seats or not.
New design,a new product in the auto market,most popular
occupancy sensor sample is available
Performance Parameters Table |
Parameter |
Condition |
Sign |
Numerical Value |
Unit |
| | |
Min |
Max |
|
Working Voltage |
|
U working |
0 |
20 |
V |
Working Current |
|
I Working |
0 |
50 |
mA |
Non-trigger resistance value |
No load |
Rx=R No load |
10.0K |
|
Ω |
Trigger resistance value |
Bearing body |
Rx=R Trigger |
0 |
100 |
Ω |
Insulation impedance |
No load |
Rx=R No load |
10 |
20 |
MΩ |
Specification |
Material |
PC |
Material surface thickness |
0.188mm |
Output Signal |
Resistance<100Ω |
Film thickness |
0.5+-0.1mm |
Bottom glue |
PET 3MDouble-sided glue |
Enviroment Temperature |
-15°C-80°C |
Permanence |
>150000 Time |
Pressure range single-spot test(Special Poise) |
70g |
100%non-conducting |
130g |
100%conducting |
Connector |
Seal gum |
To match as the seat |
1. Sample Policy: You can test the quality of our sample firstly before you purchase them in mass quantity.
2. Payment Way: T/T, L/C, Western Union, Paypal .
3. Delivery Date: 10-25 days after deposit paid. It depend on your order quantity.
4. Shipping Way: By Sea or By Air.
5. After Service: 12 months expiration date .
Trade Terms:
1.Price term: FOB, CIF, C&F, EXW
2.Delivery Port: Shanghai or Ningbo port , China
3.Payment term: T/T, L/C, Western Union, Paypal etc.
FAQ:
1, How I can know your seat will fit my machiney ?
We are the factory ,You can tell us your mounting size .we could provide OEM .
2,If I needn't 100 pieces ,Can place an order ?
Yes ,we could accept low MOQ .
3,what's the delivery time?
15-25 days after you deposit .
4,Can I buy 1-2 pieces for test ?
Yes ,you can ,if you place an big order ,will return the sample cost .
For more details, welcome to visit our company website to get more relative information about us
Contact us for latest price :
Tel:0086-18007092180
Our website: www.qlseats.com
| Prod Model: |
YY-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
Yy-03 |
| Use: |
Car Seat, Taxi Seat, Mini Bus |
| Warranty: |
12 Months |
| Cable Length: |
40-60cm |
| Size: |
0.5+-0.1mm |
| Film Thinckness: |
0.5+-0.1mm |
| Material Surface Thickness: |
0.188mm |
| Output Signal: |
Resistance<100 |
| Pamance: |
>150000times |
| Bottom Glue: |
Pet 3md Double-Sided Glue |
| Application: |
Forklift, Taxi |
| Contact: |
Normally Close |
| Type: |
Pressure |
| Number Of Switch: |
DOT |
| Usage: |
Car, Forklift, Taxi |
Nanchang Qinglin Automobile Accessories Co., Ltd is a factory professionally produce seats and Auto parts. Our products are seats for bus and heavy trucks, construction machine, agricultural machine and garden tool machine. We also make some stamping parts and other auto parts.
Currently we have two bases making seats and other machinery parts: Nanchang, Jiangxi and Yangzhou, Jiangsu. With an area of 26000 square meters. Qing Lin has Annually output 400, 000PCS seats. Our Products are mainly for Domestic and Interantional OEM and Aftermarket. At Presenst, 40% Products are being exported to Europe and America etc Counties.
With high quality and favorable price, We're pleased to get your Inquiry and we will come back to you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
