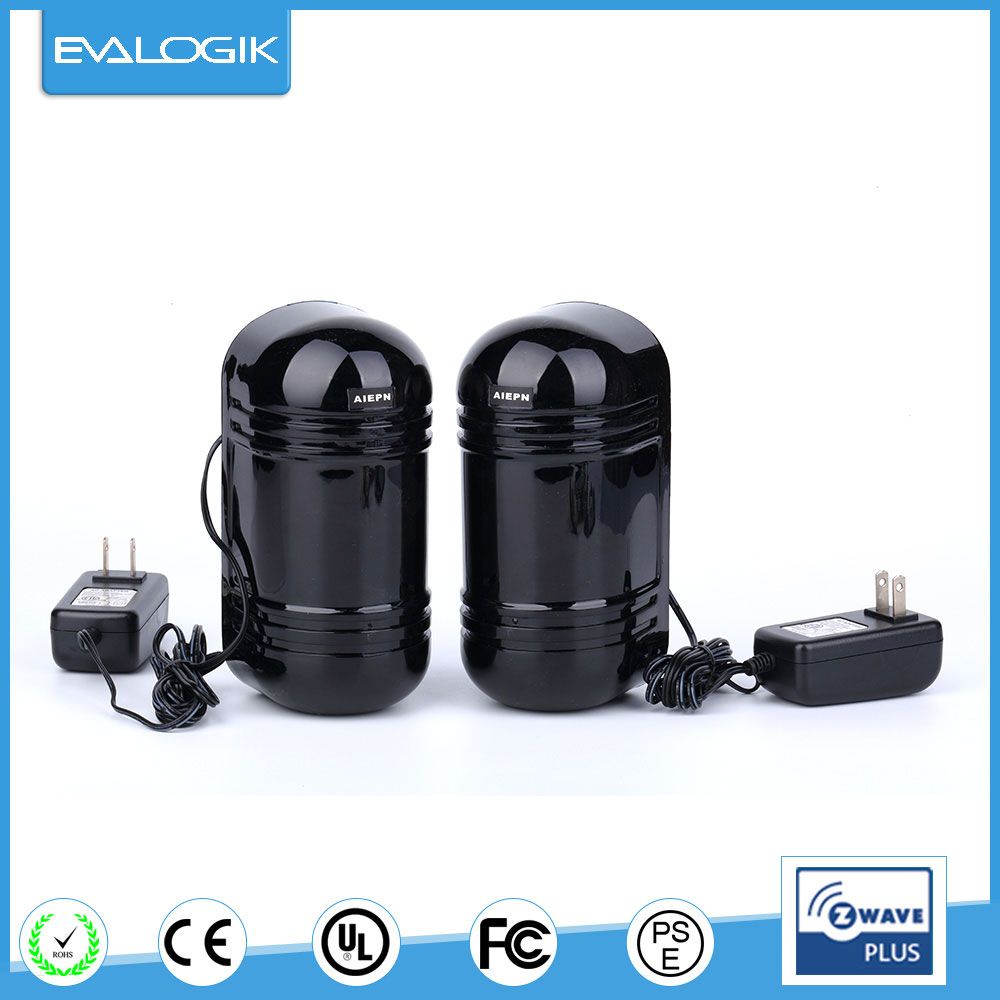

Z-Wave Best Price Smart Home Two Beans Active Infrared Sensor

Prod Model:	ZW113
Detection Range:	30~100meter;
Detection Angle:	180deg+/-90(Horizontal); 20deg+/-10deg(Vertical)
Operating Temp:	-25oc~55oc
Power Supplier:	12VDC
Frequency:	868.42MHz/908.42MHz/919.82MHz/921.42MHz
Certification:	SGS, RoHS, Ce

Product Description

Product Description
ZW113   Z-wave Two Beams active Infrared sensor



Technical data & Installation

Introduction

This sensor is a Z-Wave enabled device (interoperable, two-way RF mesh networking technology) and is fully compatible with any Z-Wave enabled network.

Technical data


Detection range	30~100meter;
Detection angle	180°±90°(horizontal); 20°±10°(vertical)
Power supply	12VDC
Range	30m line of sight
Operating temp	-25°--+55°(ºC)
Quiescent current	18(uA)
Alarm current	100(uA)
Dimensions	171(L)*50(W)*77(H)mm
Frequency	868.42MHz/865.2MHz/869.0MHz/908.42MHz/921.42MHz


Installation

1. Release cover tab to open the cover.
2. Install ZW113 to the relate position, avoid obstacles such as trees, insure the set-base is stable, and avoid sunshine/lamplight directly shining.
3. Close the cover back to sensor.
4. For "Add" in (adding to): Put the Z-Wave Interface Controller into "Add" mode, and following its instruction to add the ZW113 to your controller. To get in the "Add" mode, the distance between sensor and controller is suggested to be in one meter. Press the learn switch of ZW113 once. The LED on the ZW113 should stop flashing, if not, please try again. For "Remove" from (removing from) a network: Put the Z-Wave Interface Controller into "Remove" mode, and following its instruction to delete the ZW113 to your controller. Press the learn switch of ZW113 once to be excluded. The LED on the ZW113 should start to flash. For "Group": removing the cover of the ZW113 to get into "Awake" mode, then put the Z-Wave  Interface Controller into "Group", and following its instruction to associate the ZW113 with other device. Close the cover back after "Group" done, afterward the ZW113 will get into "Sleep" mode for power saving. Support one association group (5 nodes). Note: "Awake" mode: it is to leave the "Sleep" mode by removing the cover of ZW113, to allow the Z-Wave Interface Controller to do "Group.
5. Using gum wall plug & screws to mount ZW113 at 2 meters above surface. To enhance proper operation, place ZW113 on the angle which can detect the room widely. The solid area means the detector's coverage range.

Safety and maintenance instruction
-       Make sure that all electric connections and connection cables meet the pertaining regulations and are in conformity with the operating instruction.
-       Do not overload electrical outlets or extension cords, fire or electric shocks can be the result.
-       Please contact an expert in case you have any doubts about the mode of operation, the safety or connecting the appliances.
-       Keep all parts away from young children's reach.
-       Do not store this item on wet, very cold or warm places, this can damage the electronic circuit boards.
-       Avoid dropping or shocks, this can damage the electronic boards.
-       Never replace damaged power cables yourself! In such case, remove them from the net and take the devices to a workshop.
-      Wireless system are subject to interference from cordless phones, microwaves, and other wireless devices during installation and operation.

Maintenance
The devices are maintenance-free, so never open them. The guarantee becomes void when you open the appliance. Only clean the outside of the devices with a soft, dry cloth or a brush. Prior to cleaning, remove the devices from all voltage sources.

NOTE
Do not use any carboxylic cleaning agents or petrol, alcohol or similar. These will attack the surface of devices. Besides, the vapors are hazardous to your health and explosive. Do not use any sharp edged tools, screw drivers, metal brushes or similar for cleaning.

Warranty 1 year
