| Prod Model: |
ZW103 |
| Battery Operation: |
AAA * 3PCS (Battery Life 1 Year) |
| Range: |
Min 30m Line of Sight |
| Operating Temp: |
0~40 Degree |
| Working Voltage: |
4.5V |
| Dimensions(L*W*H): |
78*42*16mm |
| Z-Wave Frequency: |
868.4MHz/865.2MHz/869.2MHz/908.4MHz/921 |
| Output Signal Type: |
Wireless |
| Material: |
Plastic |
Product Description

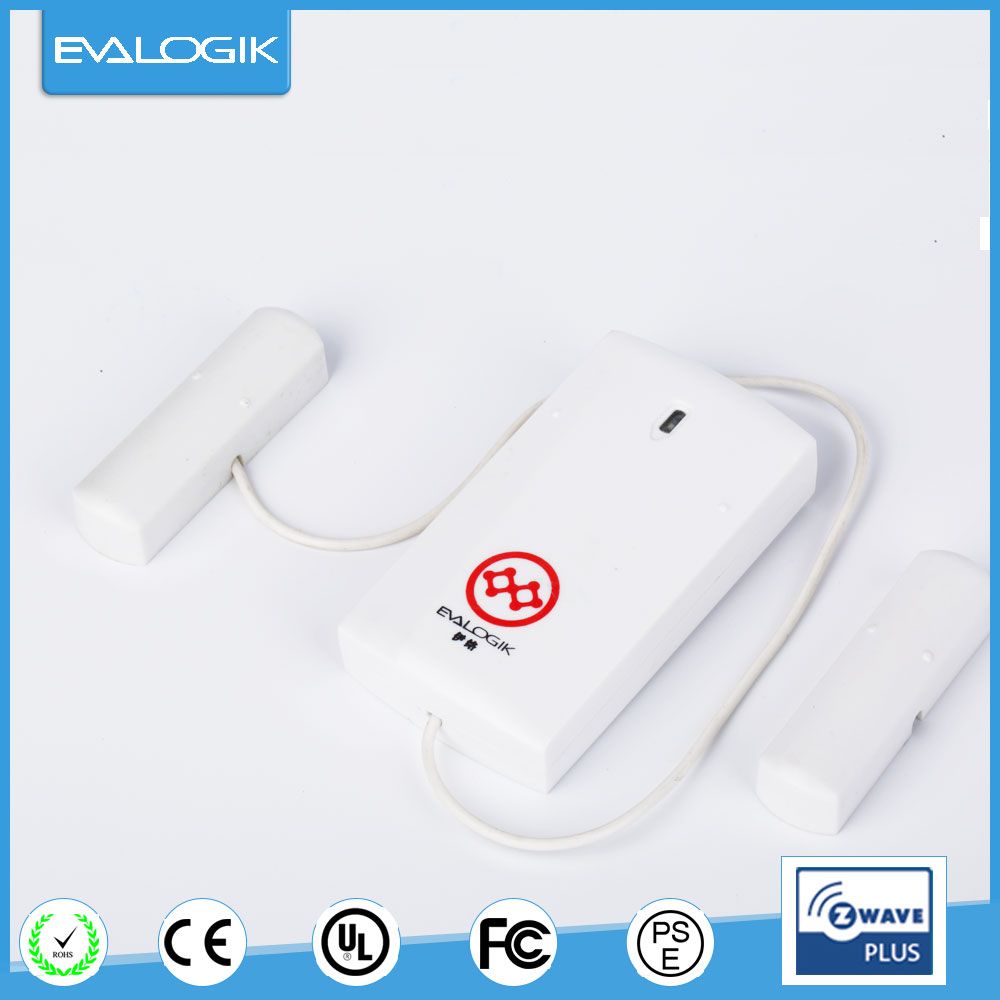

ZW103 Garage Door Sensor
Introduction &Technical data
Introduction
This device is an accessory of the Z-Wave system and enable detection of garage door opens, easy installation, works with z-wave controller.
Technical data
*Detects when your Garage is opened or closed
*Magnetic separation trigger function
*Hidden tamper prevention Trigger
*Low battery detection
*External Switch
*LED Status Indicator
| Battery Operation | 1.5V AAA size*3pcs(not include) |
| Operation Gap | 10mm |
| Range | Min 30m line of sight |
| Dimensions(L*W*H) | 78*42*16mm |
| Net Weight | 50g |
| Work with | Z-Wave Conroller |
| Frequency | 868.42MHz/865.2MHz/869.0MHz/908.42MHz/921.42MHz |
Installation
1. First, add ZW103 to ZE200 controller or others, it must be in range of the controller, because the procedure of add to the ZE200 requires direct communication with the controller.
2. Set controller to "Add" mode, quickly pressing learn switch1 second at least & release to be included (the button is also the anti-packing switch).
3. After correct "Add" it to ZE200 controller it will be signaled by ZE200.
4. For "Remove" from a network: set up the Z-wave interface controller into "Remove" mode, and following its instruction to delete the ZW103 from your controller. Press the learn switch of ZW103 for 1 second at least &release to be excluded.
5.Use double EVA or screws to fix ZW103 on the Door/Window two sides, pls. be note correction position of the sensor and the magnet (dot-to-dot).
6.Re-setting ZW103: Remove the battery, touch the senor's body with magnet,
re-install battery, trigger ZW103 one time, and reset will be confirmed by LED blink.
Safety & Maintenance instruction
- Make sure that all electric connections and connection cables meet the pertaining regulations and are in conformity with the operating instruction.
- Do not overload electrical outlets or extension cords, fire or electric shocks can be the result.
- Please contact an expert in case you have any doubts about the mode of operation, the safety or connecting the appliances.
- Keep all parts away from young children's reach.
- Do not store this item on wet, very cold or warm places, this can damage the electronic circuit boards.
- Avoid dropping or shocks, this can damage the electronic boards.
- Never replace damaged power cables yourself! In such case, remove them from the net and take the devices to a workshop.
- Wireless system are subject to interference from cordless phones, microwaves, and other wireless devices during installation and operation.
Maintenance
The devices are maintenance-free, so never open them. The guarantee becomes void when you open the appliance. Only clean the outside of the devices with a soft, dry cloth or a brush. Prior to cleaning, remove the devices from all voltage sources.
Payment&Shipping
Our Certifications
You should know!
Do not use any carboxylic cleaning agents or petrol, alcohol or similar. These will attack the surface of devices. Besides, the vapors are hazardous to your health and explosive. Do not use any sharp edged tools, screw drivers, metal brushes or similar for cleaning.
Warranty 1 year
