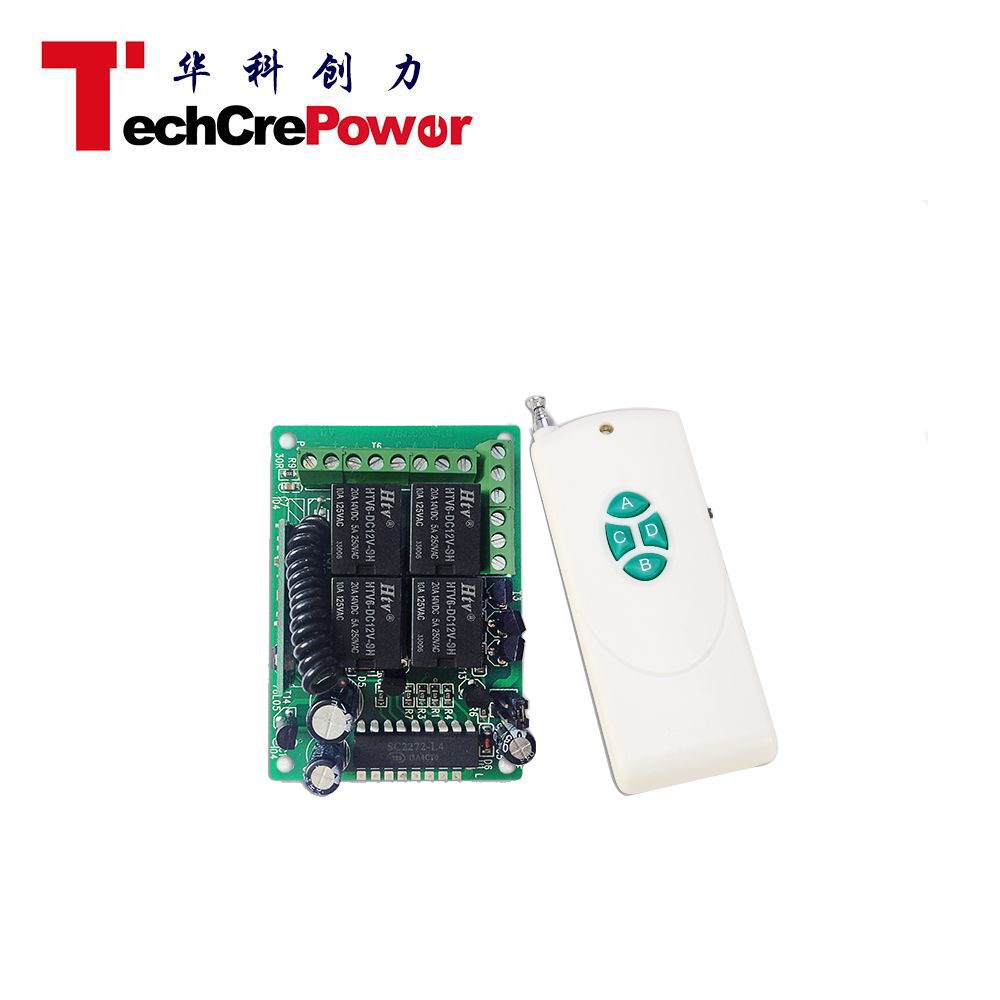

ZAB-4LM+ZY8-4 Super Mini 4CH wireless receiver with 4button 1000m distance white remote control switch
Our Superiority:
1.Professional Manufacturer
2.Provide R&D, Manufacturing and Sales
3.OEM & ODM are available
4.High Quality(components are all imported)
5.Competitive Price
6.Sincere Service
7.One week delivery period
8.Lifetime warranty
Brief Introduction:
This wireless receiving controller, high confidentiality, Large memory, stable performance, low power consumption, convenient using , without using traditional jumpers or switches coding, just make the receiving controller receive and save the signals from wireless remote control, then they can be realized to use together . If the learned control is lost in using process, just clear the information stored in the controller, the loss of remote control cannot control the receiving controller , must learn once again before using. There are four state of output : (non-locking, interlocking, self-locking), choosing different working conditions, decided by learning different remote keys.
- High confidentiality, large storage , stable performance and dispensing with traditional jumpers or switches coding, just wireless remote control will be fired the receiving signal controller, make this controller receive and store the signal from remote control.
- Apply in many kinds of wireless devices - including hand-held and portable units, window/door transmitters and a variety of detectors and other devices.
- Commonly used to control those wireless products in family, office, hotel, hospital, shopping malls, warehouse etc.
Tech Spec About ZAB-4LM: |
Operating voltage | DC12V/24V |
Operating frequency | 315/ 433.92 MHz |
Frequency deviation | ± 0.2MHz |
Operating temperature | -40'C ~ +80'C |
Receiving sensitivity | ≥-105dBm |
Modulation | AM |
Signal output method | L4:Latch-signal,M4:Momentary-signal,T4:Toggle-signal |
Decoder chip | fixed code (PT2272/ PT2262/PT2264/SC2262 ) |
Size (L*W*H) | 66*39*21mm |
Transmitting Distance | 100m/200m/1km/3km |

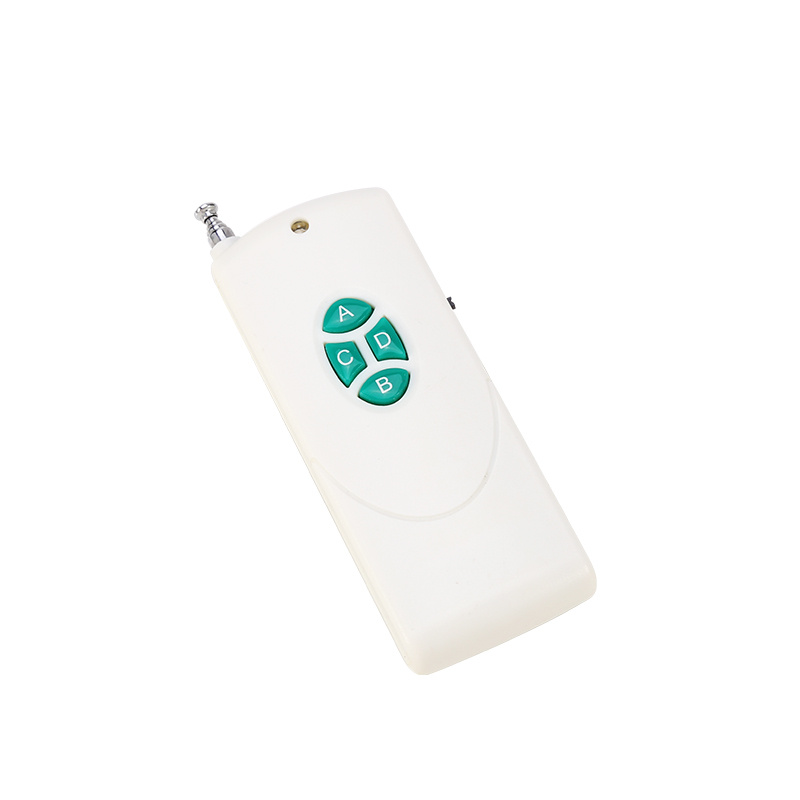

Tech Spec About ZY8-4: |
Operating voltage | DC12V0.09kg |
Operating current | <35mA |
Transmitting power | <20W |
Modulation mode | ASK |
Operating frequency | 315MHZ,433.92 MHZ |
Transmitting distance | 1000m(open space ) |
Transfer Data Rate | 3-6K |
Encoding type | fixed Code, learning code,rolling code |
Encoding Chip | PT2262, EV1527, HCS301 |
Size | 90mm*35mm*10mm |
About us:
Techcrepower is a professional supplier, who has specialized in Access Control Sytem over 10 years, we has provided hundreds of millions of product, such as access controller, electronic lock, release button, reset switch,etc. in China and worldwide.
We always focus on quality and services firstly. Believe you would be impressed with our products and services !
We will cherish any opportunity to cooperate with you!

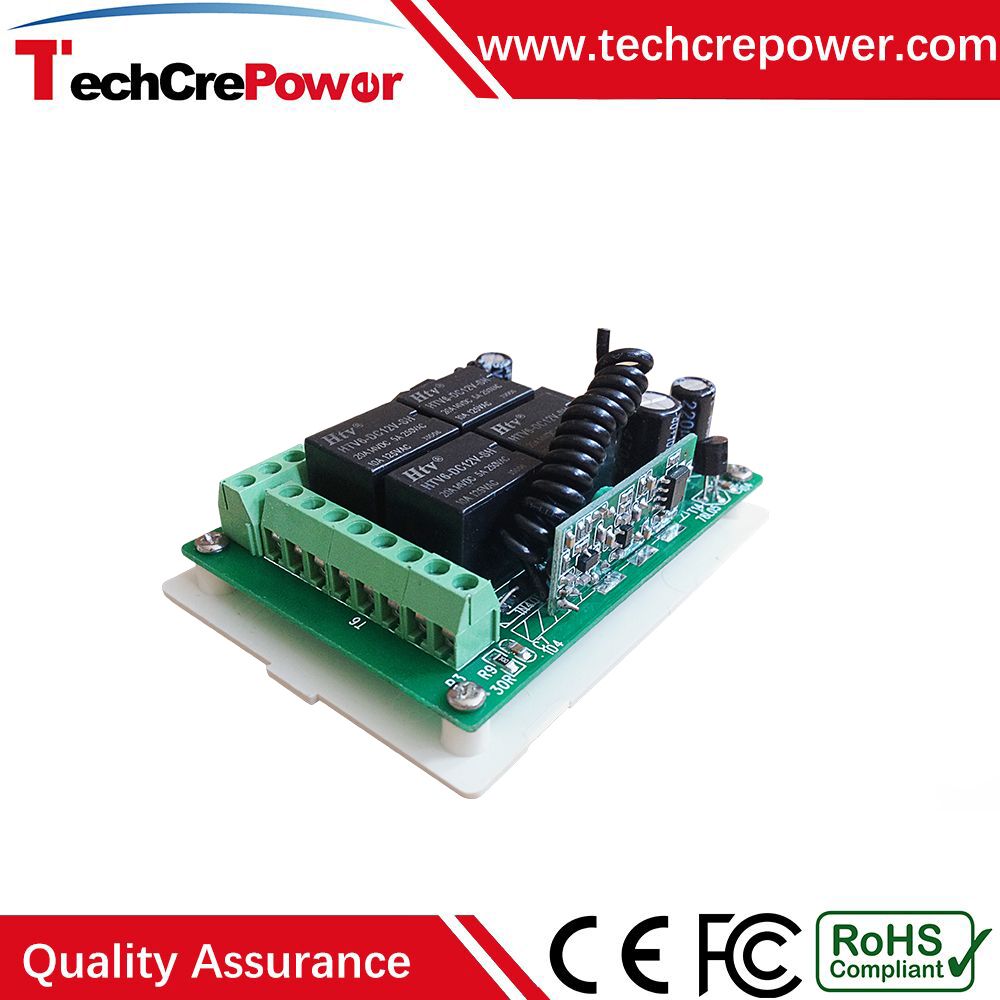

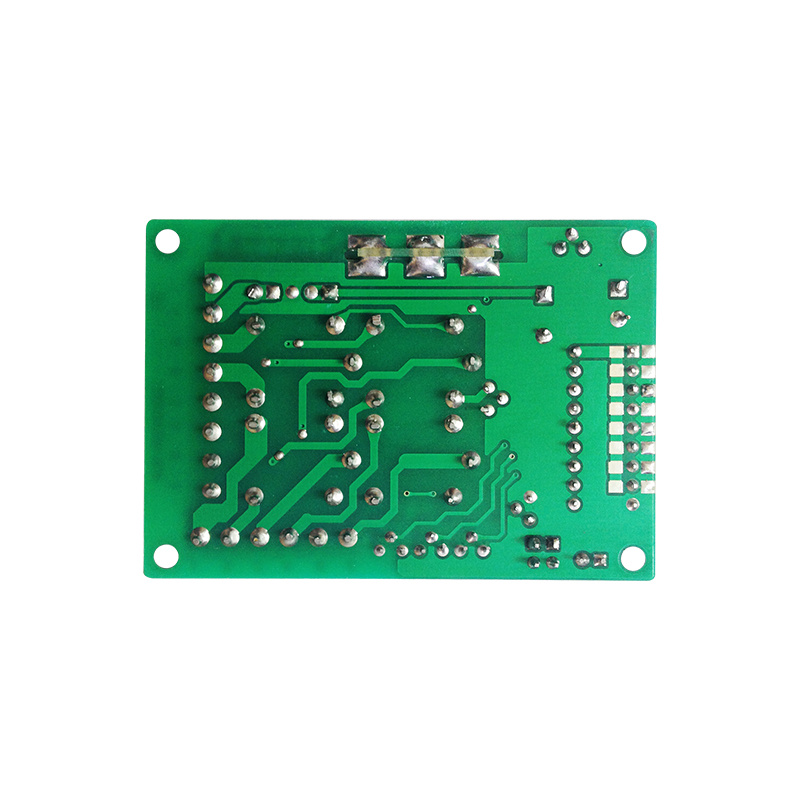

Product Picture:
Product Certification :

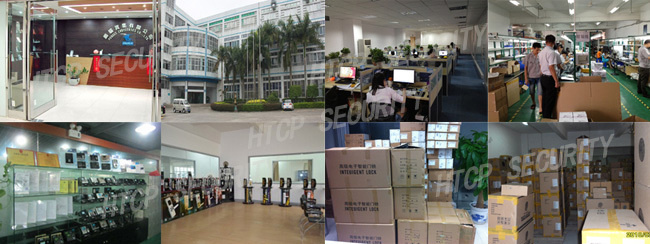

Our Factory:
Our Advantage:1. Professional R&D department, can offer you OEM/ODM services;
2. Professional technique supports and good service;
3. We strictly control the quality and regard it as our base for existence! QC staffs make piece-by-piece checks for all products. Products are conducted aging test for 72 hours.
4. Our products are chosen high quality materials and ensure the prophase stability.
5. Our products meet ISO, CE, FCC, RoHS certificates;
Our Target:Provide cost-effective products and timely services with the concept of "one store purchasing", realize win
to-win cooperation!How to Pay:By T/T, paypal, western union, Moneygram, L/C.
How to Deliver:1. Fast way: By express, e.g. DHL, Fedex, UPS, TNT, EMS... take about 3-7 days. 2. Cheap way (small package): By China post, take about 15-70 days. 3. Cheap way: By Air or by Sea shipment for heavy and big goods.
The Warranty:We provide 1~2 years warranty from the date of delivery but lifetime technical support.
Contact us:hanks for your visiting! Please contact us online or send your inquiry details in the below,
click "send" now, we are waiting for your any inquiry!
Established in 2003, Shenzhen Techcrepower Technologies Limited (Subsidiary of Shenzhen Huake Tech. ) is specialized in R&D and production of access control Products, including RS485 and TCP/IP based control panel, IE web based Control panel, RFID network and single door offline access controller, wiegand reader and other peripheral access control products. As a manufacturer with strong developing team and production capacity, we always look at the forefront of the world advanced technologies, dedicated to developing the clients' most requested products, we always improving and improving!
We strictly control the quality and regard it as our base for existence! Our products are chosen high quality materials and ensure the prophase stability. Our 5 assembly line workers are well trained and can provide very professional work. All our products will be conducted aging test for 72 hours. QC staffs make piece-by-piece checks for all products. The RFID Reader monthly Production Capacity is 15000PCS in our ISO 9001: 2000-certified factory. With multi-kind of test equipments, our quality can be ensured to meet international Standards.
We are proud of our advanced technologies, top quality products, as well as fast services! At present, we are an affordable hardware provider, supply strong support for distributors, resellers and integrators. In future, we aim to become an excellent solution provider for SME (small & medium enterprise) in security sector!
Our Target: Provide cost-effective products and timely services with the concept of "one store purchasing", realize win-to-win cooperation!
