Zb Type Plate Resistor/Wire Wound Resistor

Name: Zb Type Plate Resistor/Wire Wound Resistor
Brand: all-electronics-online.com
SKU: 726589535
Availability: InStock
Rating: 4.8 (99 reviews)

Price:	US $ 0.05-9.95/Piece
Trade Terms:	FOB
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

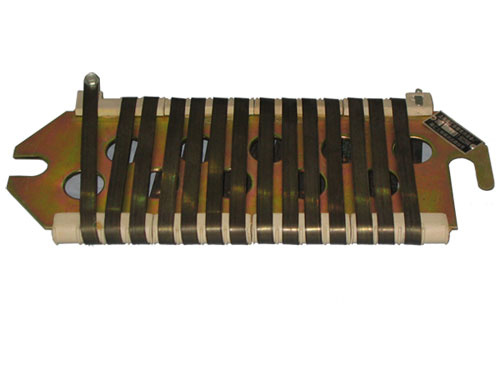

ZB Type Plate Resistor/Wire Wound Resistor
Product Description:
1. Resistance Range: 0.5-500Ω
2. Resistance tolerance: ± 5%(J)± 10%(K)

Type

Power (W)

Resistance
Range(Ω)

Dimensions(mm)

Tolerance

T.C.R
(PPM/ºC)

350

0.5~500Ω

306

252

128

105

J=±5% K=±10%

350PPM/ºC≤TCR
≤+350PPM/ºC

500

0.5~500Ω

365

305

128

105

1000

0.5~500Ω

352

300

158

134

Advantage:
1. Competitive price
2. High stability and high quality

Packing:
We can pack your goods in export-worthy carton, on pallet.

Shipping:
1. We will ship the items within 3 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx.
3. We are not responsible for any accidents, delays or other issues caused by the forwarder.
4. Any import fees or charges are on the buyer's account.

All products of the size, electrical performance can be designed. If you have any questions or requirements, please contact us freely in any time.

Prod Model:	ZB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Environmental Certification:	ISO14000
Quality Certification:	ISO9001: 2008
Resistance Range:	0.5-500ohm
Tolerance:	5%,10%
Resistance:	Fixed Resistor
Function For Resistance:	Protective Resistor
Installation:	DIP Resistor
Material:	Wire-wound Resistor
Package Type:	Surface Mount
Type:	Fuse Resistor
Brand:	Liwang

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment"
