ApplicationLJ series zero-sequence current transformer, it's used for earthing protection of low grounding current system or motor stator coil or cable. DD11/6 & DL11/0.2 model relays matches with LJ transformer, once grounding failure hhappens, zero-sequence current generates in secondary cycle of transformer to cause relay action.

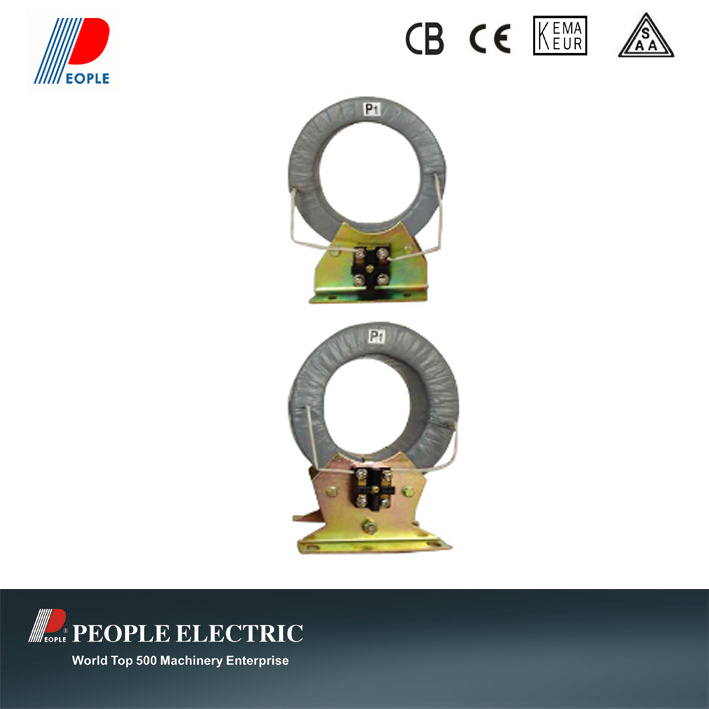

LJ-Φ75 type indoor current transformer. It's applied in the devices, AC 50Hz, voltage up to 500V. Can allow three phases cables(max diameter not exceed 75mm) to operate DL11/0.2 relay for metering zero-sequence current & protection of earthing failure.
Normal working & installment conditions1.Temperature: -25ºC~+40ºC
2. Humidity: ≤80%
3. Altitude: ≤1000m
4. Mounting place: indoor place without metal dust or obvious shock
Specification | Model | cable through No | secondary general impedance(Ω) | Relay circuit setting current(A) | Precision(A) | secondary cycle unbalanced voltage(mV) |
| LJ-2 | 1~2 | ≤10 | 0.03 | 1~3 | 40 |
| LJ-4 | 3~4 | ≤10 | 0.03 | 1~3 | 40 |
| LJ-7 | 5~7 | ≤10 | 0.03 | 1~3 | 40 |
| Max protective precision(A) | Max cable diameter for usage(mm) | One second heating reliability | Rated secondary current(A) | connecting wire resistance(Ω) | Relay setting current range(A) | Relay starting current(parallel) |
| ~10 | 70 | 200 | 24/Z | 1 | 0.1~0.14 | 0.1A |

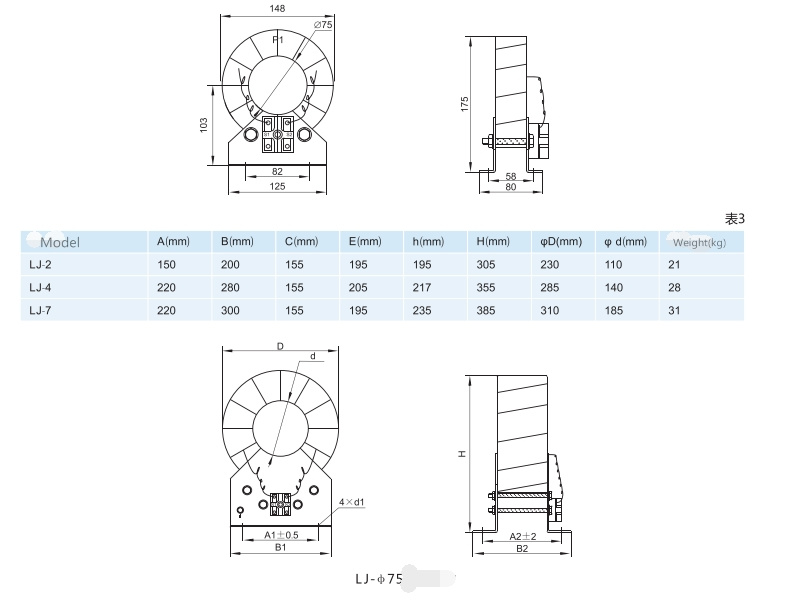

Appearance & installment dimension
