Zg11 Enamel Variable Wire Wound Resistor (High power)

Name: Zg11 Enamel Variable Wire Wound Resistor (High power)
Brand: all-electronics-online.com
SKU: 826394825
Availability: InStock
Rating: 4.8 (117 reviews)

Price:	US $ 0.5-60/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Model Number: Rx20
Type: Fixed Resistor
Technology: Wirewound
Package Type: Surface Mount
Resistance: 5-25K
Resistance Tolerance: ±5%±10%
Rated Power: 25W-3000W

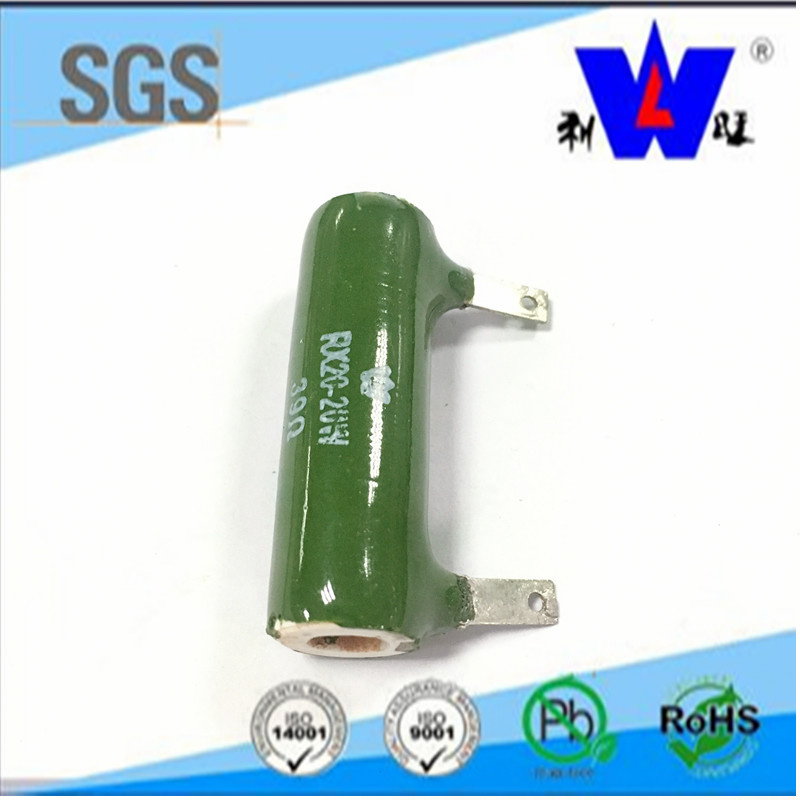

RX20 Enamel Wire Wound Resistor(High power)

Item	Tested	Requirements
Resistance series tolerance	AC1500V 1 minute	E24 ±5%±10%
Dielectric Strength (only insulation type)	DC500V 1 minute	No flashover insulation breakdown
Solder ability	265 ±5%,2S+0.5S 1.5-2.0mm	>20MΩ/C
Terminal Strength	10N 10S5S	R≤±(1%R+0.05Ω) Covered withnew solder by 95% at least NO damage
Short time overload	5Xrated power 5S	R≤±(1%R+0.05Ω)
Solding heat	350±10, 3-3.5mm	R≤±(1%R+0.05Ω) No damage
Vibration	10-500Hz,0.75mm,or 98m/s2x/y/z/All 6h	R≤±(1%R+0.1Ω) No damage
Load life	1.5h on 0.5h off 1000h	R≤±(5%R+0.1Ω) R>1GΩ
Moisture	RH90-95% 40 96h	R≤±(5%R+0.1Ω) R≥20MΩ/C

If you are interest in our products, please feel free to contact us!

Prod Model:	ZG11
Environmental Certification:	ISO14001
Quality Certification:	ISO9001: 2008
Resistance Tolerance:	5%,10%
Color:	Green
Resistance:	Fixed Resistor
Function For Resistance:	Protective Resistor
Installation:	DIP Resistor
Material:	Wire-wound Resistor
Package Type:	Surface Mount
Type:	Photoresistor
Brand:	Liwang

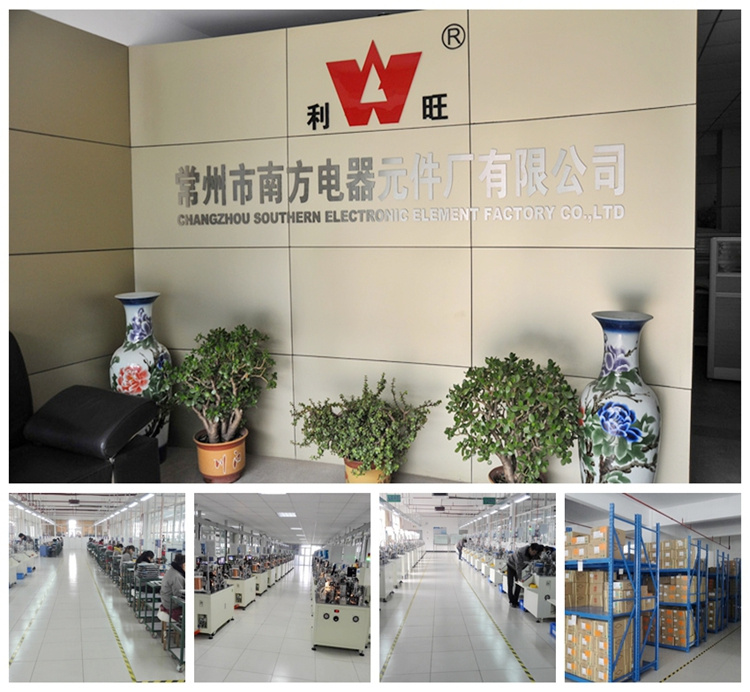

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment"
