Zj600d Contactor 600A Power Contactor

Name: Zj600d Contactor 600A Power Contactor
Brand: all-electronics-online.com
SKU: 836073425
Availability: InStock
Rating: 4.3 (75 reviews)

Price:	US $ 38/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

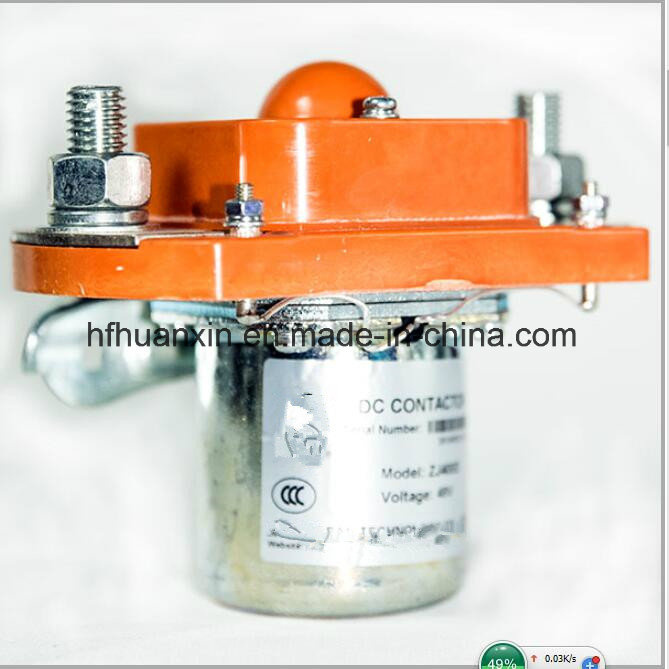

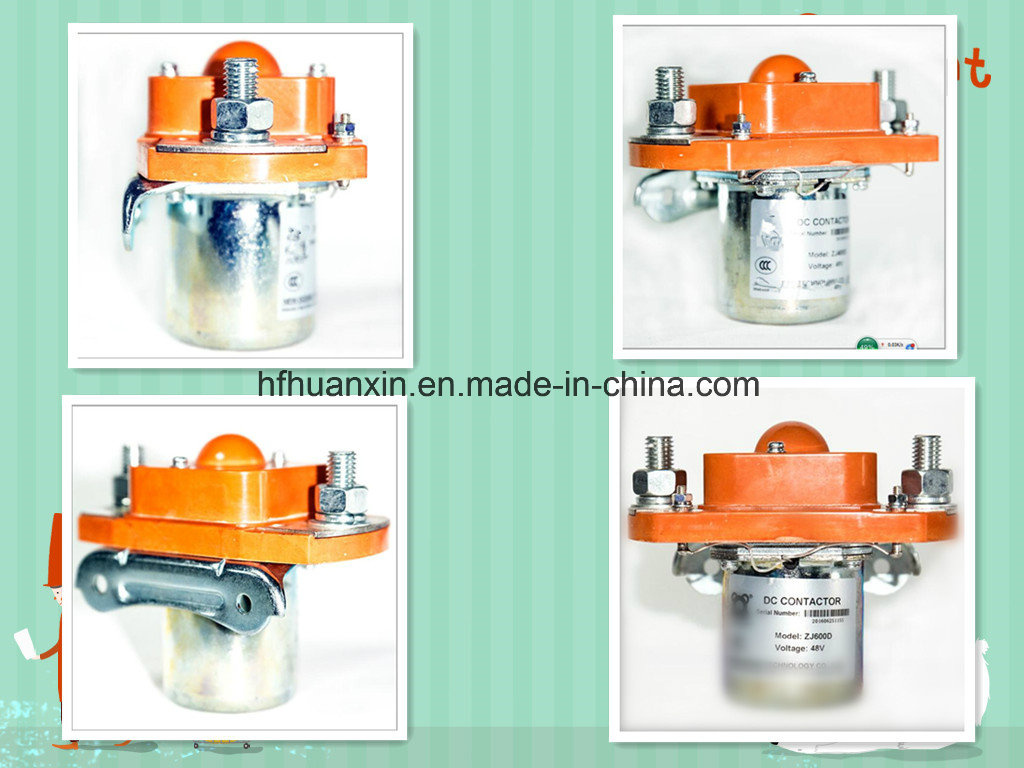

ZJ600D Contactor 600A Power Contactor

Product Description:

Specifications:

Model: ZJ600D
Voltage Options (Volts): 12V, 24V, 36V, 48V or 72V.
Ambient temperature:-25~+40ºC
Altitude range:0~2000m
Max.relative humidity: 90% at 25ºC
Installation method:vetically or horizontally
Voltage fluctuating:0.7~1.1Ue

Overview

The ZJ600D contactor is a SPST (Single Pole Single Throw; normally open type) DC contactor, designed for direct current loads, particularly for motors on small electric vehicles such as light industrial trucks, electric forklift, electric pallet stacker, golf cart, etc. ZJ600D has double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

Main rated load current of contact circuit (amps): 600A
Dielectric (volt) strength: 50Hz 1000V AC 1min
Current volt drop of main contact at 600A: Not above 80mV

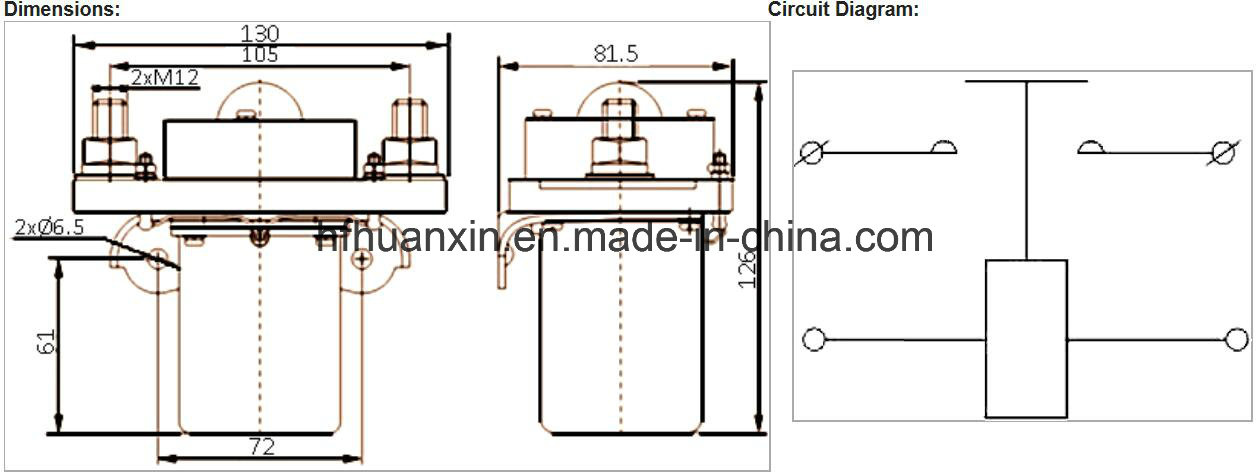

Dimensions (LxWxH ): 130x81.5x126 mm
Mounting: two 6.5mm fixing holes in bracket; pitch-row: 72mm
Continual working duration: 8h
Mechanical life: 100,000 times
Electric life: 2,000,000 times

Our Service
Hefei Huanxin Technology Development Co., Ltd. has been devoting ourselves to developing and manufacturing and other since 2004. We are located in Hefei, Anhui Province, with convenient transportation access. We employ over 101 - 200 People staff members. We have achieved great improvement since our company was founded in 2004. We abide by the motto of Firstclass quality, Reasonable price, Best service and Professional product support.

Packing & Delivery

Package:Normally we use the standard exporting packaging. We also can according to clients' request .

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperating.
2. By Air: Delivery from the Shanghai airport to customer's destination city air port.
3. By Sea: Delivery from the Shanghai sea port .

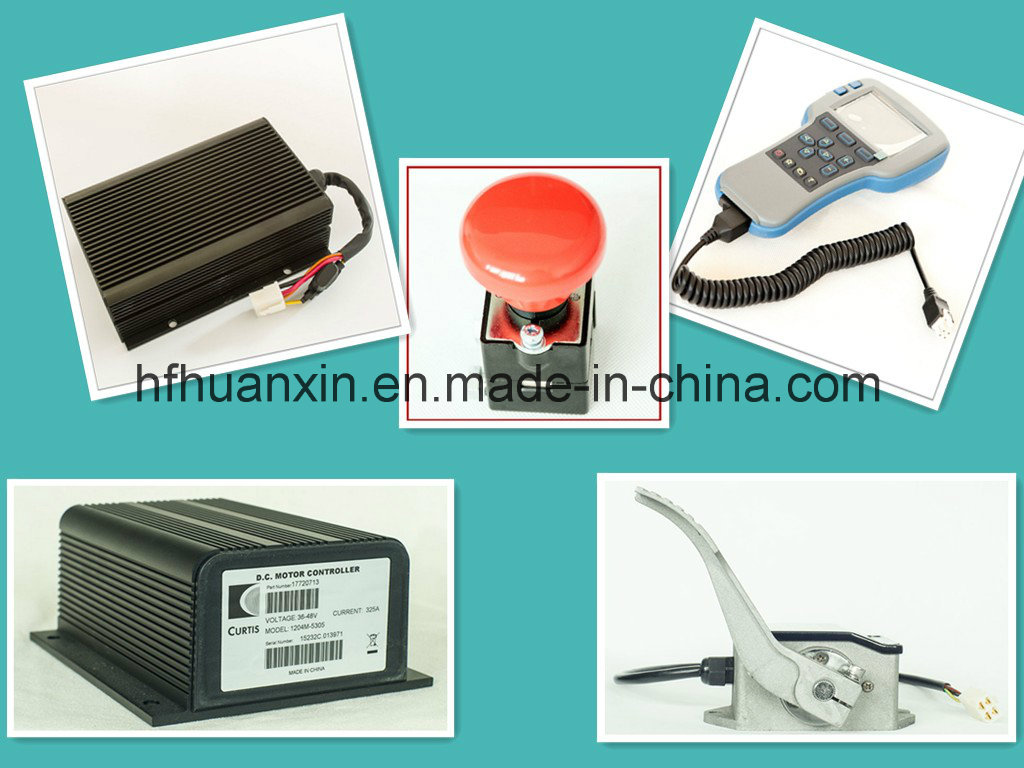

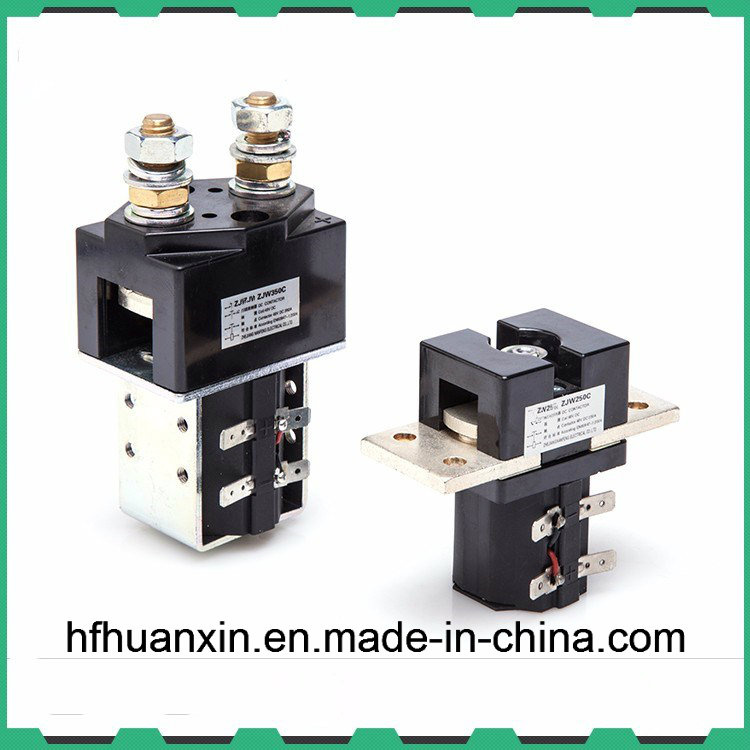

Related Products

Contact us:

Prod Model:	ZJ600D
Brand Name:	Huanxin
Model Number:	Zj600A
Quality:	Reliable
Warranty:	1 Year
Place Of Origin:	Anhui
Port:	Shanghai
Voltage:	12V 24V 36V 48V 72V
Current:	600A
Color:	Black
OEM:	Yes

Hefei Huanxin Technology Development Co., Ltd, established in 2004, is a professional manufacturer engaged in the research, development, production, sales and service of electric vehicle controller, handle, meter, electronic accelerator and so on. Our company specialized in various kind of pallet trucks parts and forklift parts for both domestic and international markets.

Also our company is the first-level agent of CURTIS BRAND and appointed of Britain Albright Contactor. In addition we have obtained ISO9001 and CE Certificates.

Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your souring requirement.

We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
