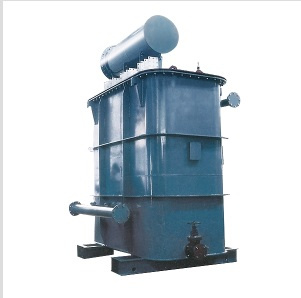

Zs Rectifier Transformer for Intermediate Frequency Furnacegroup: Oil-Immersed Transformers
| Price: |
US $ 1000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Scope of applicationThis transformer provides rectification power supply especially for intermediate frequency furnace, according to its load characteristics of intermediate frequency furnace, the transformer is featured with high overload capacity, less harmonic current, good cooling efficiency, etc.
Technical parameters | Model | Rated capacity | Rated voltage (kV) | Connection group | Weight (kg) | Outline dim. (m) |
| | (kVA) | HV | LV | symbol | Machine body | Oil weight | Gross weight | L | W | H |
| ZS-500/10 | 500 | 6.0
6.3
10
35 | 0.575
0.66
1.25 | Dy11 | 970 | 380 | 1800 | 1.63 | 1.13 | 1.62 |
| ZS-630/10 | 630 | 1260 | 450 | 2210 | 1.75 | 1.15 | 1.74 |
| ZS-800/10 | 800 | 1620 | 580 | 2880 | 1.82 | 1.36 | 1.88 |
| ZS-1000/10 | 1000 | 1850 | 750 | 2450 | 1.95 | 1.63 | 2.012 |
| ZS-1250/10 | 1250 | 2080 | 780 | 3660 | 2.04 | 1.84 | 2.12 |
| ZS-1600/10 | 1400 | 2240 | 800 | 3950 | 2.06 | 2.03 | 2.17 |
| ZS-1800/10 | 1600 | 2550 | 850 | 4300 | 2.10 | 2.06 | 2.22 |
| ZS-2000/10 | 1800 | 2650 | 1100 | 5200 | 2.80 | 2.12 | 2.27 |
| ZS-2500/10 | 2000 | 2950 | 1140 | 5310 | 2.30 | 2.24 | 2.32 |
| ZS-3000/10 | 2500 | 3350 | 1515 | 6500 | 2.35 | 1.78 | 2.65 |
| ZS-3500/10 | 3000 | 3600 | 1600 | 7600 | 2.55 | 2.16 | 2.71 |
| ZS-1000/10 | 3500 | 4350 | 2100 | 8850 | 2.65 | 2.20 | 2.75 |
| ZS-1250/10 | 1000 | 6.0
6.3
10
35 | 2×0.575
2×0.66 | Dy11/Dd0 | 2200 | 1180 | 3950 | 2.30 | 1.70 | 2.20 |
| ZS-1400/10 | 1250 | 2430 | 1230 | 4530 | 2.36 | 1.75 | 2.27 |
| ZS-1600/10 | 1400 | 2600 | 1400 | 5200 | 2.43 | 1.80 | 2.00 |
| ZS-1800/10 | 1600 | 2940 | 1460 | 5800 | 2.43 | 2.04 | 2.43 |
| ZS-2000/10 | 1800 | 3050 | 1550 | 6030 | 2.40 | 2.24 | 2.50 |
| ZS-2150/10 | 2000 | 3050 | 1570 | 6450 | 2.40 | 2.30 | 2.50 |
| ZS-2500/10 | 2500 | 3350 | 1850 | 7300 | 2.40 | 1.95 | 2.60 |
| ZS-3000/10 | 3000 | 3580 | 1880 | 7600 | 2.48 | 2.12 | 2.60 |
| ZS-3150/10 | 3150 | 3960 | 1900 | 7970 | 2.55 | 2.17 | 2.60 |
| ZS-3600/10 | 3600 | 4480 | 2150 | 8600 | 2.80 | 2.20 | 2.82 |
| ZS-4000/10 | 4000 | 2×1.25 | 4650 | 2350 | 9500 | 3.00 | 2.70 | 2.75 |
| ZS-5200/10 | 5200 | 5900 | 2600 | 11500 | 3.13 | 2.90 | 2.93 |
| ZS-6300/10 | 6300 | 6650 | 2900 | 12800 | 2.95 | 2.39 | 2.92 |
| Model | Rated voltage (kV) | Connection group | Loss (kV) | No-load current | Short-circuit impedance | Weight (kg) |
| | HV | LV | symbol | No-load | On-load | (%) | (%) | Machine body | Gross weight |
| ZS-30/0.5 | 0.38 | Determine
on
request | Dyn11 | 0.13 | 0.60 | 2.1 | 4.5 | 100 | 312 |
| ZS-50/0.5 | 0.17 | 0.87 | 2.0 | 4.5 | 245 | 410 |
| ZS-100/0.5 | 0.29 | 1.50 | 1.6 | 4.5 | 356 | 650 |
| ZS-180/0.5 | 0.45 | 2.40 | 1.3 | 5 | 510 | 810 |
| ZS-160/0.5 | 0.40 | 2.20 | 1.4 | 5 | 500 | 900 |
| ZS-200/0.5 | 0.48 | 2.60 | 1.3 | 6 | 560 | 890 |
| ZS-260/0.5 | 0.56 | 3.05 | 1.2 | 5 | 645 | 1150 |
| ZS-315/0.5 | 0.87 | 3.65 | 1.1 | 5 | 625 | 1275 |
| ZS-400/0.5 | 0.80 | 4.30 | 1.0 | 4.5 | 854 | 1575 |
| ZS-200/10 | 10
6.3
6 | 0.46 | 2.50 | 1.4 | 10 | 435 | 1030 |
| ZS-320/10 | 0.65 | 3.40 | 1.2 | 8 | 1085 | 2215 |
| ZS-420/10 | 0.80 | 4.30 | 1.1 | 8 | 1096 | 2495 |
| ZS-560/10 | 1.05 | 5.30 | 0.9 | 8 | 1520 | 2850 |
| ZS-650/10 | 1.20 | 6.20 | 0.9 | 8 | 1600 | 3300 |
| ZS-780/10 | 1.40 | 7.50 | 0.8 | 8 | 1615 | 3510 |
| ZS-1000/10 | 1.70 | 10.30 | 0.7 | 10 | 1840 | 3760 |
| ZS-1250/10 | 1.95 | 12.00 | 0.6 | 10 | 2190 | 4250 |
| ZS-1600/10 | 2.60 | 14.50 | 0.6 | 10 | 2400 | 4120 |
| ZS-2000/10 | 3.40 | 19.80 | 1.1 | 12 | 3730 | 6455 |
| ZS-2500/10 | 5.00 | 22.00 | 0.9 | 9.5 | 3630 | 6490 |
| ZS-3150/10 | 5.50 | 39.00 | 0.8 | 8 | 3330 | 7880 |
| ZS-4000/10 | 6.50 | 42.00 | 0.6 | 8 | 4300 | 8200 |
Order guide Please specify the product model, rated capacity, HV/LV rated voltage and high-voltage tapping range, phase number, frequency, connection group symbol and so on in the order.
HONLE Electric Co.,Ltd.is a famous manufacturer specialized in voltage regulator,transformer and UPS.
Located in Liushi, WenZhou, which is a capital of electrical in China;
We have been in Power industry for more than 18 years;
Good quality ,Reasonable price;
Accepted Retail if we have product in stock;
Accepted Wholesale,Brand Agents,OEM,ODM and Can be Customized;
Accepted Payment Type: T/T,Western Union,L/C,PayPal;
CONTACT US YOU WILL GET IMMEDIATELY REPLY
| Prod Model: |
ZS 500K-6300KVA |
| Connection Symbol: |
Dyn11 or Dyn0 |
| Application: |
Rectifier |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Honle |
