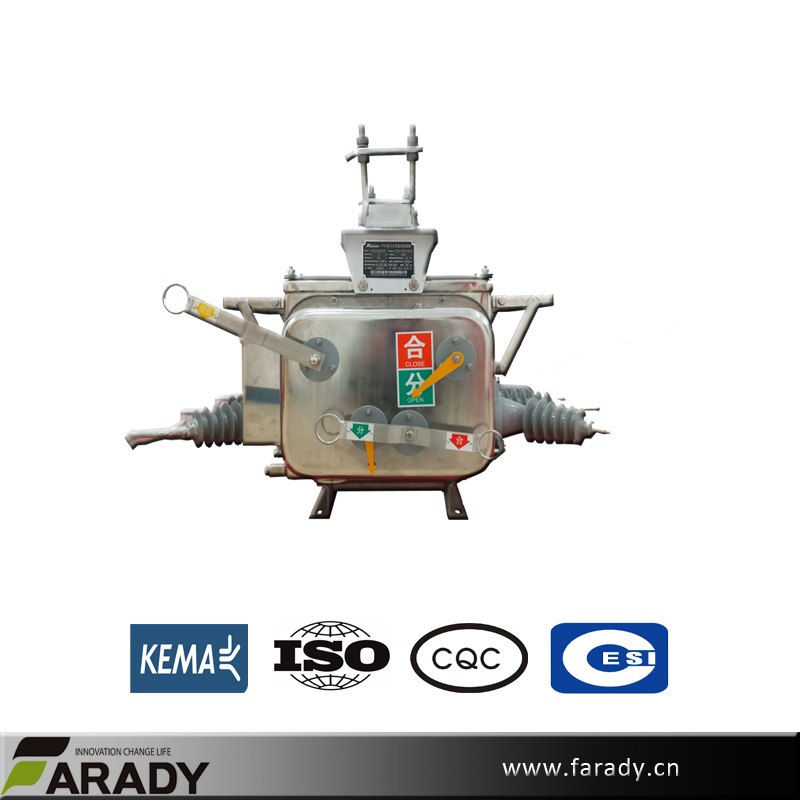

Zw20-12/T630-25 Type Automatic Safety Protection WiFi Working Principle of Air Circuit Breaker Vacuum Circuit Breaker
| Price: |
US $ 100-1000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Overview
ZW20PW series circuit breaker is the intelligent power distribution equipment which to solve the problems listed below:
1.Failures in T branch of overhead line cause the whole distribution off
2.Short circuits in the user end cause the whole distribution line off
Working with our CMS-4000 distribution automation system to switch off the short circuit failures and earthing failures automatically. They can monitor the line status, realize remote control, telemeter, remote signal and remote regulating, and are the ideal intelligent distribution automation circuit breaker.
Service Condition
1.Altitude: ≤3000 Meters
2.Enviroment temperature: outdoor -40ºC ~ +40ºC the daily temperature difference is 25ºC
3.Wind speed: ≤35m/s
4. Location is without inflammable substances, explusives, rustry chemicals and strenuous vibaration

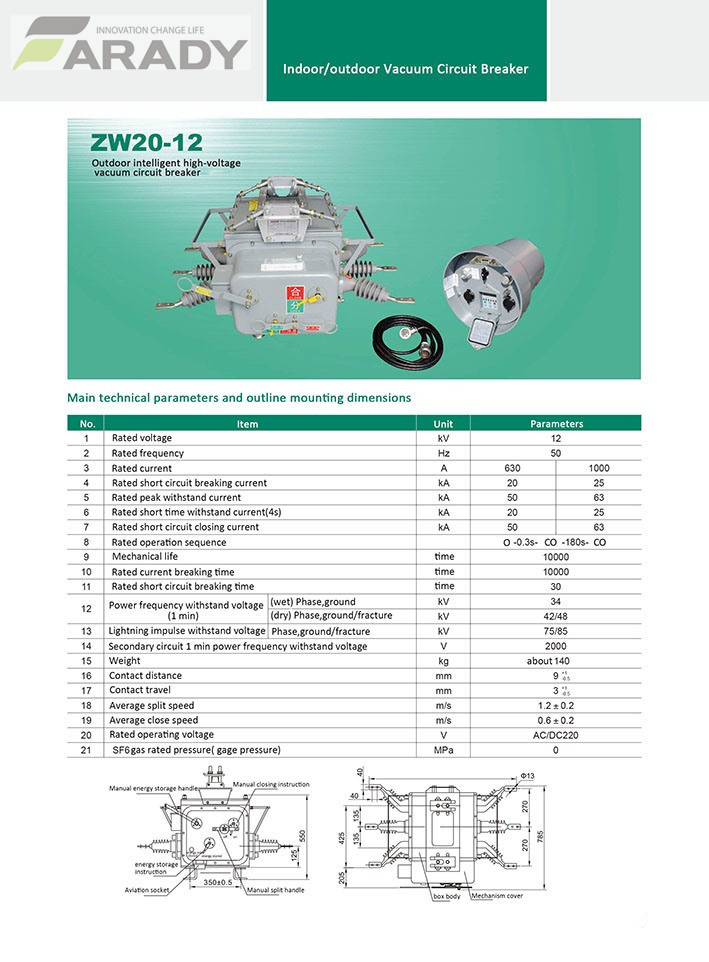

Technical Parameters
| NO. | Item | Unit | Numeric |
| 1 | Nominal Voltage | KV | 12 |
| 2 | Rated Frequency | HZ | 50 |
| 3 | Rated Current | A | 630 |
| 4 | Rated Short-circuit Breaking Current | KA | 20 |
| 5 | Dynamic Stability rated current | KA | 50 |
| 6 | RMS/Rated the rmal stabilization | KA/S | 20/4 |
| 7 | Mechanism life | Times | 10000 |
| 8 | Rated short-circuit closing breaking Number | Times | 30 |
| 9 | Rated operating sequence | | O-0.3s-CO-180s-CO |
| 10 | Rated breaking current number | Tmes | 10000 |
| 11 | Rated short-circuit close-open current | KA | 50 |
| 12 | Rated insulation level | KV | | Short Power-frequency withstand | Thunder
shocking |
| PE | 42/34 | 75 |
| PP | 42/34 | 75 |
| Fracture | 48/34 | 85 |
| Assist | 2 | |
| 13 | SF6 rated pressure (20 spend pressure) | MPa | 0.01 |
| 14 | Rated short-circuit closing breaking Number | T | 30 |
| 15 | Rated short-circuit cut-off current's DC component | %dc | 51.3 |
Packaging & Shipping

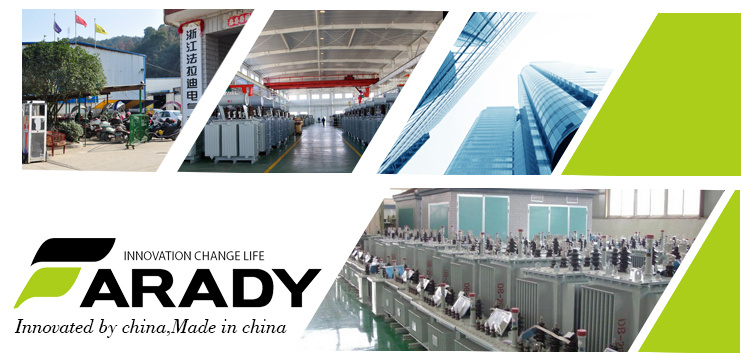

About Us
Founded in 1996, with a registered capital of 10 million USD, Zhejiang Farady Electric enjoys about 20 years' experience in MV transmission and distribution electrical equipment manufacture.
We are National Hi-tech enterprise, National Spark plan Program,State Hi-tech enterprise, State Innovation R&D center, Patent demonstrate company.Farady is located in Liushi of Yueqing, Zhejiang,China,main products include: Transformer/RMU/switchgear/AVR/ACR and MV indoor and outdoor switch. All the products of ours have passed the national and international laboratory type test, Farady Electric was qualified supplier of China State Grid and China southern Grid.With ISO9001/14001/18001, we are strike for create value for our partner and customer.There is more than 20 distributors and agents worldwide already trust us and distribute Farady product there, we are not only export product, but also provide whole technology solution to help partner to establish local factory in our business line.Today, boasting the value of products specialization, brand management, and business globalization, with the sprits of pragmatism, innovation, efficiency, and responsibility, Farady Company is dedicated to become the top name in the international business from china, and contributes its share to the transformation from the Made in China into the Invented in China.
Our Advantages
(1). Energy conservation: Farady voltage regulating type capacitors will change the output reactive power by regulating voltage on capacitors, so that the reactive power can be adjusted smoothly. Comparing with other method, it can ensure the capacitors in best condition, the energy saving effect is much better
(2). Low cost:If the old power transformer substation need to reform, only need to add a voltage regulator between the circuit breaker and capacitors, the original circuit breakers, reactors, capacitors can be reuse, greatly reduce the cost of transformation
(3). Maintance Free:When traditional circuit breaker and contactor switching, switching devices and capacitors often damaged because of the above problems, result in high maintenance costs, using Farady devices, automatic control reactive power output, there is no potential risks of other equipments, greatly reducing maintenance and staff costs in power transformer substation (4) Quality AssurancesWe have a strictly quality control process from the raw material to finished products. Advanced testing lab to make sure products quality and improve our creative ability. Quality and Safety is the soul of our products.(5) Excellent Services Many years of manufacturing experience and rich export business help us to establish a well-trained sales service team for all customers.(6) Fast DeliveriesStrong manufacture capacity to satisfy urgent leading time. It is around 15-25 working days after we receive the payment. It varies according to the different products and quantity.(7) OEM ODM and MOQStrong R&D team for quick new products' development, we welcome OEM, ODM and customize request order. Whether selecting a current product from our catalog or seeking engineering assistance for your application. You can tell us about your sourcing requirements Normally our MOQ is 100pcs per models. We also produce OEM and ODM as you requirement. We are developing worldwide agent.FAQ
1.Why choice us Farady?After compare quality,delivery and price you will find out answer2. Is that possible to be one of distributor of Farady in my country?Yes,once you action is fast enough 3,More question......Feel free to contact you,you will get immediately reply Contact Us
| Prod Model: |
ZW20 |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Vacuum |
| Installation: |
Fixed |
| Structure: |
ACB |
| Poles Number: |
3 |
| Certification: |
ISO9001-2000 |
