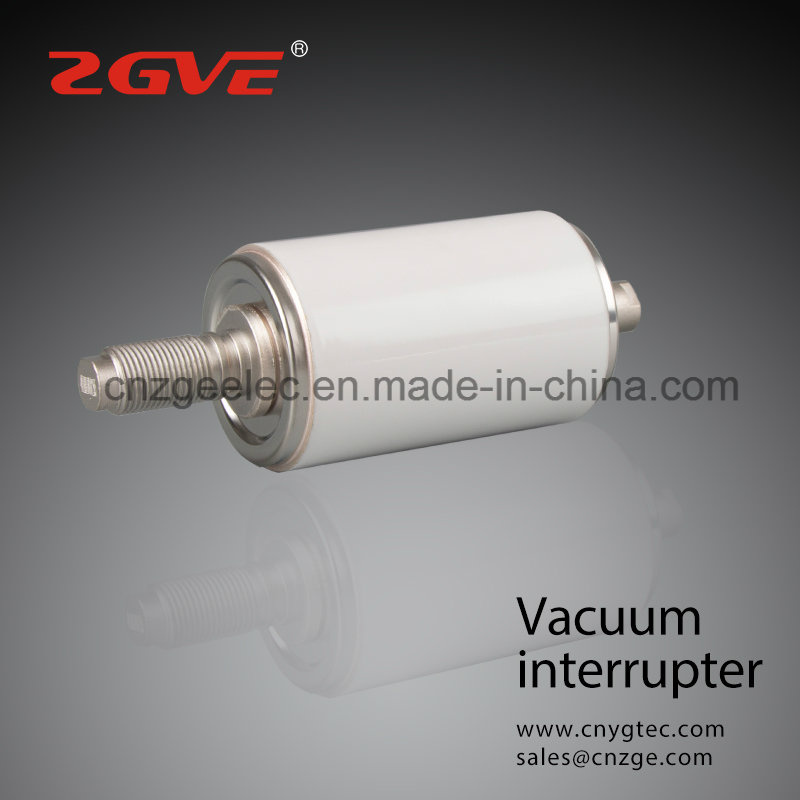

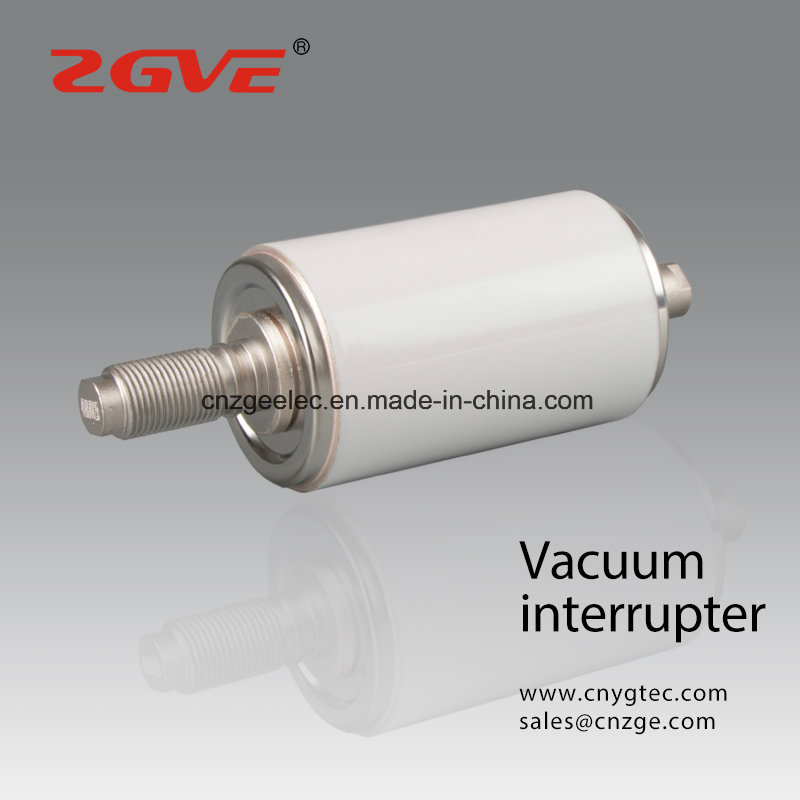

ZW32 Vacuum Interrupter For Outdoor Circuit Breaker

Main Technical Data

Main Technical Data
Rated Voltage	12kV
Rated Current	630A
Rated Frequency	50Hz
Rated Short-time power frequency withstand voltage(1min)	42kV
Rated Lighting impulse withstand voltage	75kv
Rated short-time withstand current	16/20KA
Rated peak withstand Current	40/50kA
Rated short-circuit making current	40/50kA
Rated short-circuit making current	630A
Rated active load breaking current	630A
Rated cable charging breaking current	10A
Rated sigle capacitor bank breaking current	400A
Rated duration of short-circuit	4s
Mechanical life	10000times
Contact closing force due to bellows and atmosphere	70±40N
Counterforce at rated contact stroke	120±50N
Circuit resistance at rated contact force	≤45μΩ
Shelf life	20 years
Contact erosion limit	3mm
Weight of moving parts	≤0.7kg
Mechanical Data Required for matched vacuum switchgear
Rated contact stroke	6±1mm
Average opening speed	1.0±0.2m/s
Average closing speed	0.65±0.2m/s
Added contact force	700/900±50N
Contact bouncing duration at closing operation	≤2ms
Contact bouncing bank amplitude of opening operation	≤2mm
Three-pole simultaneity	≤1ms

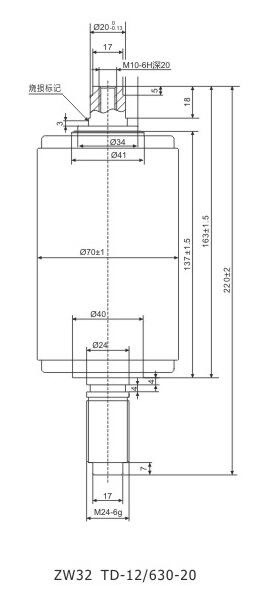

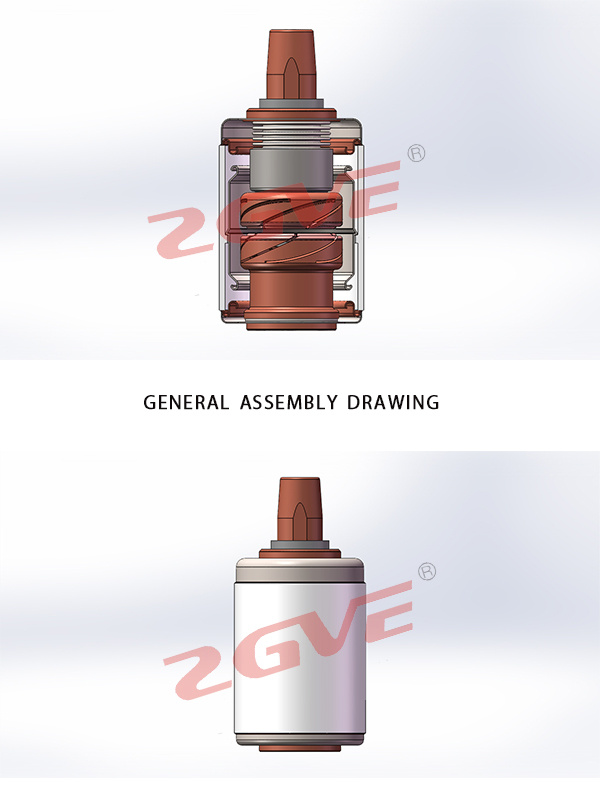

Dimensional Drawing

Prod Model:	201A
Warranty:	12 Month
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Energy-storage Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Fixed
Poles Number:	3
Certification:	CQC
Structure:	Vacuum
Type:	Vacuum
Function:	Vacuum
