0.05 Class Rating Output 380V 20A AC Three Phase Standard Power Source
| Price: |
US $ 5000-9000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,Western Union |
| Prod Model: |
ZX5080 |
| Output Frequency: |
40-70Hz |
| Output Power Factor: |
-1 ~ 0 ~ + 1 |
| Output Harmonic: |
2-31th |
| Phase Output: |
0 ~ 359.99° |
| Output Voltage: |
range: 57.7V, 100V, 220V, 380V |
| Output Current: |
0.2A, 1A, 5A, 20A |
| Display And Operation: |
Large TFT color LCD, touch panel, mask button |
| Output Type: |
Triple |
| Warranty: |
1 Year |
| Output Power: |
1 - 50W |
| Input Voltage: |
110-220V |
| Certification: |
ISO |
| Brand: |
GDZX |
Product Description

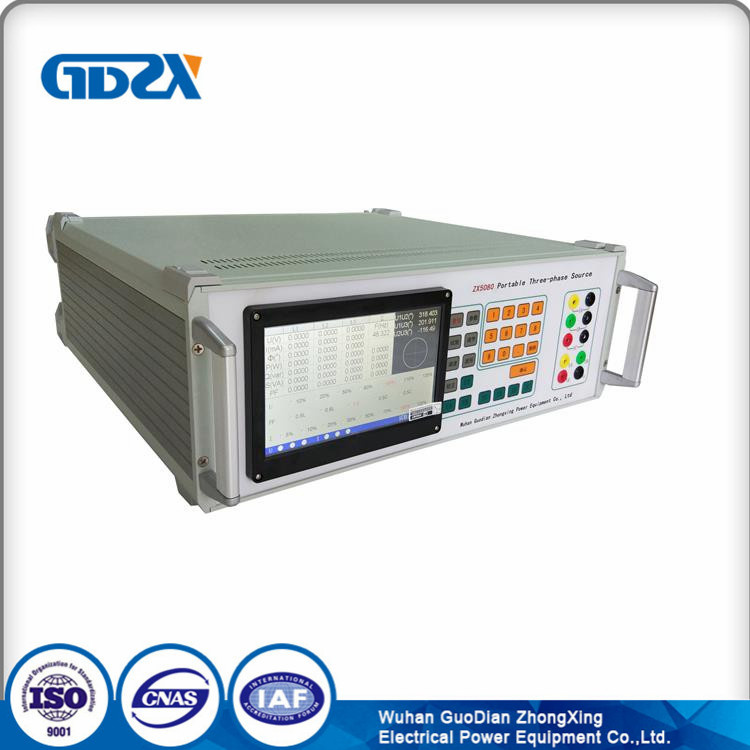

Standard Power Source

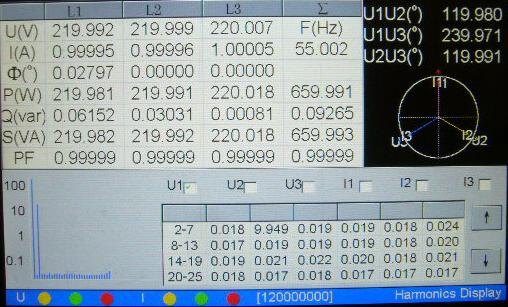

Features:- Touch panel and mask button, massive information to see and simple to use
- built-in standard energy meter for digital closed loop feedback, U, I, Φ, F, W, VAR, VA, PF for reference
- Perfect over circuit, over voltage. short circuit, open circuit, over heat, over load protection

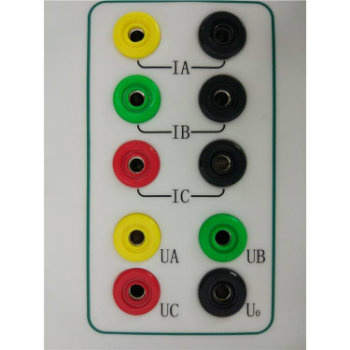

- Independent control on Three phase voltage current circuits, every phase U I can be regulated.
- Auto shift range, can freely preset rated value
- Multiple choose of voltage, current, phase regulation test point

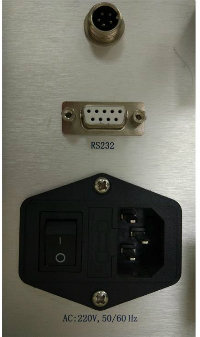

- With R232 communication interface for PC control and software upgrade
- Accuracy levels 0.05 or 0.01 for options
Source Output
AC Phase voltage output
Regulation fineness: 0.01% RG
Resolution: 6 effective digits
Accuracy: better than 0.1% RG
Stability: better than 0.02%RG/ 2 min
Distortion degree: <0.2% (non capacitive load)
Output power: rated 25 VA/phase
Full load regulation rate: ≤0.01% RG
Range: 10V - 460V
Four gears: 57.7 V, 100 V, 220 V, 380 V, switch automatically
Long-term stability: ± 60 PPM/year
AC current output
Adjust fineness: 0.01% RG
Accuracy: better than 0.1% RG
Resolution: 6 effective digits
Stability: <0.02% RG / 1 min
Distortion degree:< 0.5%
Output power: rated output 20 VA/Phase
Full load regulation rate: 0.01% RG
Range: 1mA~24A
Gears: 0.2A, 1A, 5A, 20A, switch automatically
Power output
Accuracy: better than 0.1% RG
Stability: better than 0.02% RG / 1 min
Resolution: 6 effective digits ( active power, reactive power, apparent power)
Power factor
Adjusting range:-1 ~ 0 ~ + 1
Resolution: 0.00001;
Accuracy: 0.001
Phase angle
regulation range: 0 ~ 359.99°
Resolution: 0.001°
Accuracy: 0.05°
Frequency
Adjusting range: 40 Hz ~ 70 Hz
Resolution: 0.001 Hz
Accuracy: 0.005 Hz
Harmonic
Output 2~31th harmonic, each order can be overlapped and output simultaneously but total harmonic content should not exceed below limit:| Harmonic order | Voltage harmonic maximum content percentage (relative to fundamental wave) |
| 2-8 | 40% |
| 9-15 | 30% |
| 16-31 | 20% |
| 32-51 | 5% |
Content display accuracy: accuracy: 0.1%
Content resolution: 4 effective digits
Harmonic phase regulation range: 0 ~ 359.99°(relative to fundamental wave)
2. Technique parameters:
Output power impulse constant: 18000000×5/In( "In":current gear: 60(100),20,5,1,0.2)
Output impulse level: 5V
electricity meter input impulse circuit: 1
electricity meter input impulse level: <5V or Passive
electricity meter error display range: ±0.000%--±99.99%
electricity meter error display resolution: 0.001%
electricity meter meter constant input range: 6 effective digits, decimals allowed
electricity meter regulation testing point: Imax,0.5 Imax,1.2Ib,1Ib,0.5 Ib,0.2 Ib,0.1 Ib,0.05 Ib,0.02 Ib,0.01 Ib
Power factor testing point that can be set: 1.0, 0.5L, 0.8C, 0.5C
Meter circling number setting: 1-9999
3. Usual output regulation set point:
Voltage test point: 10%,20%,50%,80%,100%,110%,120%.
Current test point 5%,10%,20%,30%,50%,70%,100%,120%.
Phase test point: 0.5L,0.8L,1.0,0.8C,0.5C
Three phase voltage current amplitude adjustable, fineness: 10%,1%,0.1%,0.01%, max 125%
Phase and power factor of 3 phase voltage current adjustable, fineness: 10°1°0.1°0.01°
Phase of UB, UC to UA can also be regulated
Frequency regulation is together with three phase voltage/current: 5Hz, 1Hz, 01Hz, 0.01Hz
4. Power supply: Single phase AC 220V, 50/60Hz
5. Dimension and weight: 480*600*178mm, 27Kg
