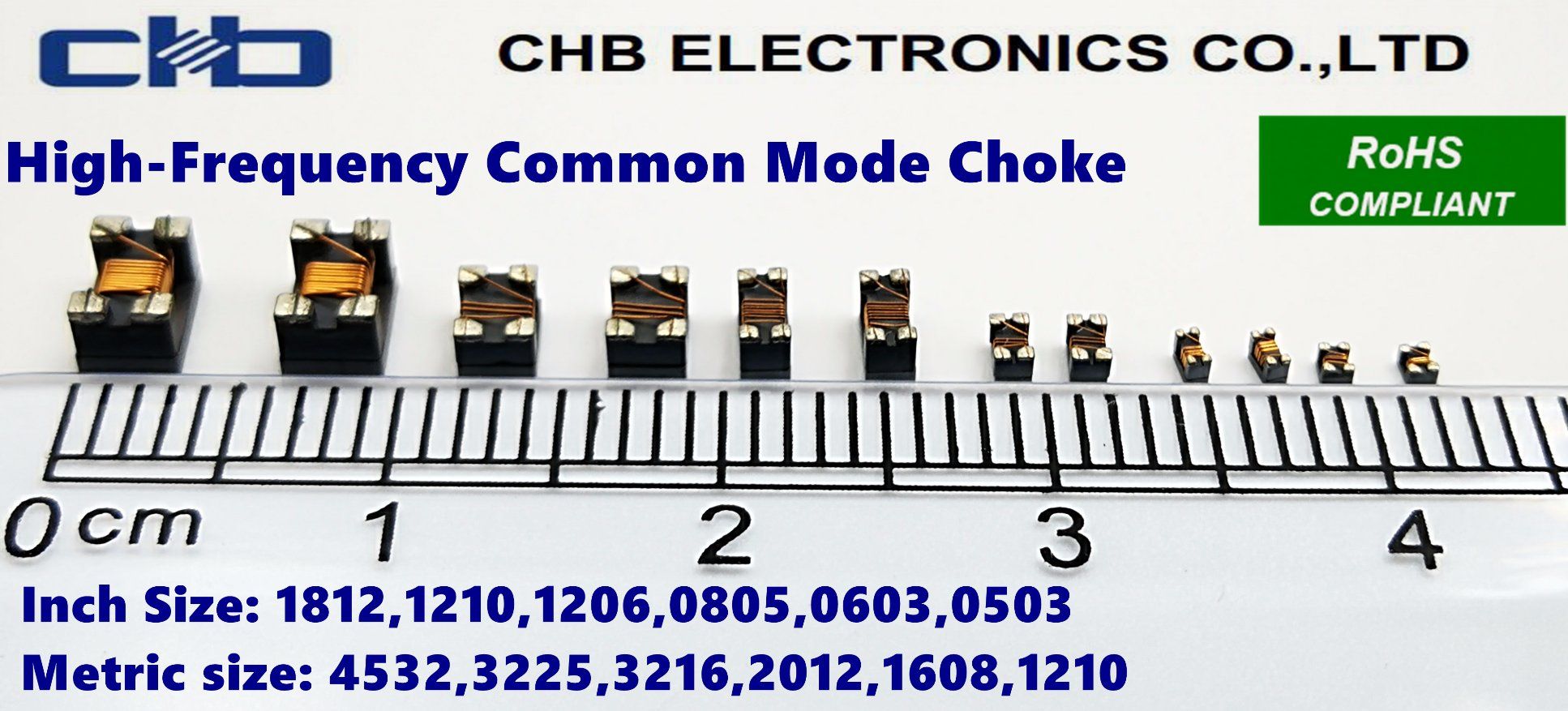

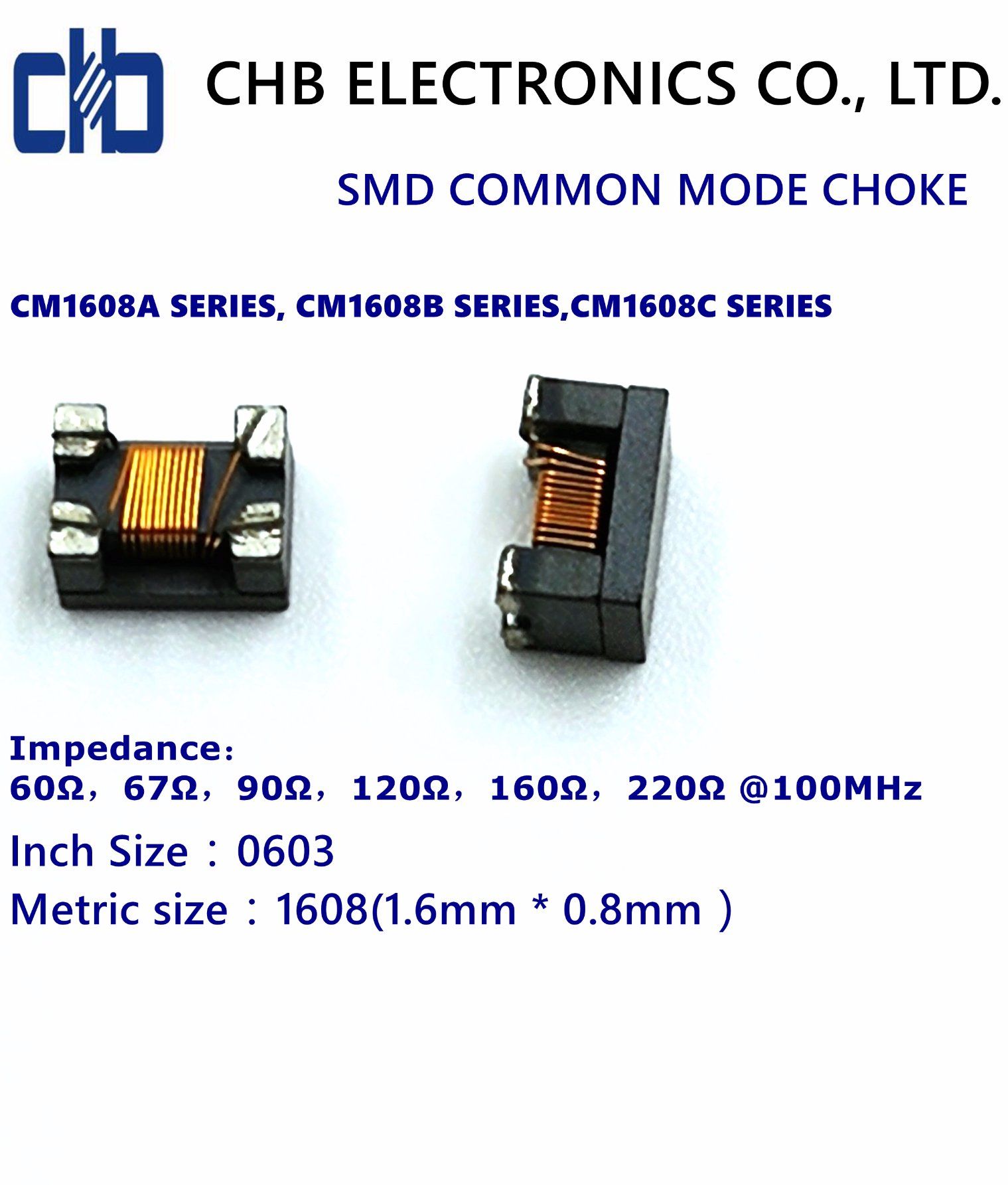

0603 Impedance: 220ohm @100MHz, Common Mode Choke for USB2.0/IEEE1394 Signal Line, IDC~200mA, DCR~ 0.42Ω Max. Size: 1.6mm *0.8mm

Name: 0603 Impedance: 220ohm @100MHz, Common Mode Choke for USB2.0/IEEE1394 Signal Line, IDC~200mA, DCR~ 0.42Ω Max. Size: 1.6mm *0.8mm
Brand: all-electronics-online.com
SKU: 721062282
Availability: InStock
Rating: 4.9 (23 reviews)

Price:	US $ 0.026-0.03/Piece
Min Order:	2000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CM1608A-221S
Type:	Choke Inductor
Structure:	Inductive Choke
Brand:	Chb

Product Description

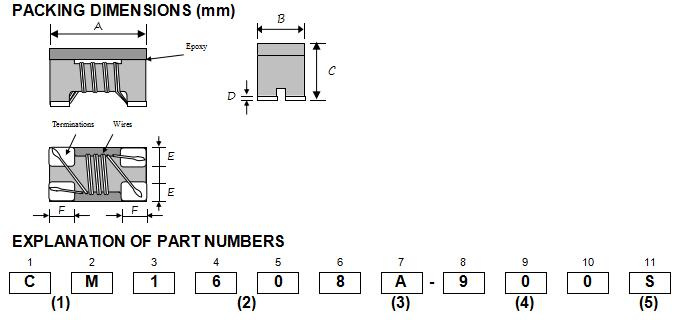

EXPLANATION OF PART NUMBERS:

(1) Product Symbol: Chip common mode choke

(2) Shapes and dimensions: Length(A) x Width(B) x Thickness( C)
Dimensions in mm (inch)

TYPE

0806

0.85± 0.1

0.65± 0.1

0.45 max.

0.15 max.

0.27Typ.

0.22Typ.

1210

1.2 ± 0.2

1.0 ± 0.2

0.9 max.

0.15 max.

0.36Typ.

0.33Typ.

1608

1.6 ± 0.1

0.8 ± 0.1

1.1 ± 0.1

0.1 ± 0.1

0.25Typ.

0.33Typ.

2012

2.0 ± 0.2

1.2 ± 0.2

0.2 ± 0.1

0.40Typ.

0.45Typ.

2520

2.5 ± 0.2

2.0 ± 0.2

1.8 ± 0.2

0.2 ± 0.1

0.4 ± 0.1

0.45 ± 0.1

3216

3.2 ± 0.2

1.6 ± 0.2

1.9 ± 0.2

0.2 ± 0.1

0.60Typ.

3225

3.2 ± 0.2

2.5 ± 0.2

2.2 ± 0.2

0.2 ± 0.1

0.80Typ.

0.65Typ.

4532

4.5 ± 0.2

3.2 ± 0.2

2.8 ± 0.2

0.2 ± 0.1

1.2Typ.

1.0Typ.

(3)Shielding Type :

1GHz

USB2.0/IEEE1394 Signal Line

3.5GHz

HDMI 1.4 CAT1

6GHz

HDMI 1.4 CAT2/Display Part

7.5GHz

HDMI 1.4 CAT2/USB3.0

10GHz

HDMI 1.4 CAT2/ USB3.0/ USB3.1

(4) Impedance
670:67Ω;900:90Ω;121:120Ω;161:160Ω;181:180Ω;221:220Ω;261:260Ω;361:360Ω

(5) Tolerance: S=±25%;M=±20%

ELECTRICAL CHARACTERISTICS

P/N	Z(Ω)	DCR (Ω)	Idc(mA)	Rated Voltage	Insulation Resistance	Withstanding Voltage
	Common Mode
	Impedance	[ Max ]	[ Max ]	Vdc	IR	Vdc
	at 100MHz			(V)Typical	(MΩ)Min.	(V)Typical
CM1608A-600S	60	0.30	300	50	10	125
CM1608A-670S	67	0.30	300	50	10	125
CM1608A-900S	90	0.30	300	50	10	125
CM1608A-121S	120	0.36	250	50	10	125
CM1608A-161S	160	0.40	200	50	10	125
CM1608A-221S	220	0.42	200	50	10	125

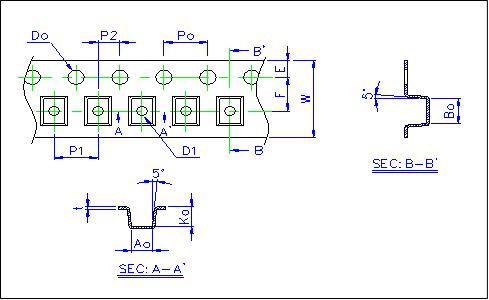

Reel Dimension & Tape Dimension

Type

A(mm)

B(mm)

C(mm)

D(mm)

7"x8mm

9.0±0.5

60±2

13.5±0.5

178±2

7"x12mm

13.5±0.5

60±2

13.5±0.5

178±2

Size

Ao(mm)

Bo(mm)

Ko(mm)

W(mm)

E(mm)

F(mm)

Po(mm)

P1(mm)

Do(mm)

1608

1.65±0.10

1.00±0.10

1.18±0.10

8.00±0.20

1.75±0.10

3.50±0.05

4.0±0.05

4.0±0.10

none

Packaging Quantity

Chip Size			1608			2012			3216
8mm/ Reel			2000			2000			2000
