09050 Snap-in Illuminated Rocker Switch 10A 250V off-on I-0 Spst 3 Pin

Prod Model:	Snap-In Illuminated Rocker Switch
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Maiyu
Poles:	Spst
Terminals:	3 Pins
Position:	on-off
Lamp Color:	Red Yellow Green Blue
Rated Voltage:	10 a - 250 VAC (15 a - 125 VAC)
Overall Size:	31 X 14 mm Approx.
Mounting Size:	28 X 10.5 mm Approx.
Material:	Plastic, Metal
Usage:	Toys
Standard:	Standard
Lamp:	With Lamp
Certification:	CE
Condition:	New
Color:	White,Blue,Black,Orange,Red Gray,Grey

Product Description

Snap-In Illuminated Rocker Switch 10A 250V OFF-ON I-0 SPST 3 Pin

Switch action: SPST (Single pole, single throw)
OFF-ON (I-O sign)
10 A - 250 VAC (15 A - 125 VAC)
3 Pin (with 6.3 mm terminals)
Panel Mount, Snap-In
Suits cutout: 28 x 10.5 mm approx.
Overall dimensions: 31 x 14 mm approx.

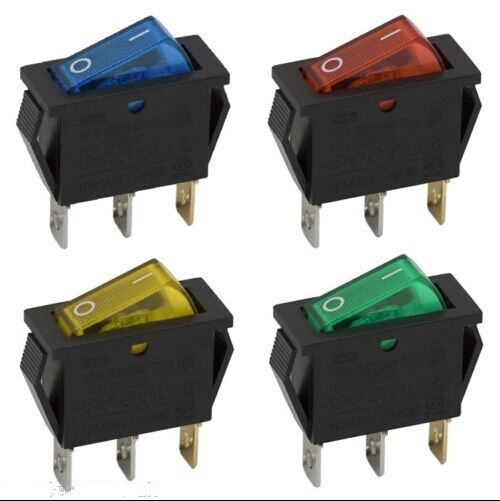

I.
Colour: Black body with Blue illumination
II.
Colour: Black body with Red illumination
III.
Colour: Black body with Yellow illumination
IV.
Colour: Black body with Green illumination

Packaging & Delivery

Packaging Details:	50pcs in a box, normal carton
Delivery Detail:	7-14days after confirm payment


.



Single Pole Single Throw ON - OFF,ON-OFF-ON switch
Black hard surface rocker.
Laser etched ROOF LIGHTSLegend
Single upper  light.
Single lower  light.
Upper light is ON when the switch is pressed UP.
Lower light can be wired to separate dash light circuit.
Same size as the ARB switches.
Rated 20A 12V.
This switch uses the same light configuration as the ARB switches.
No rear barriers between terminals.
Wiring diagram supplied with switch.
Switch cut out size 0.83'' x 1.45''.
Panel thickness between 1/16'' and 1/4''

All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.
The switch is rated at 20amp's however in ALL case we recommend that you wire the accessory through a fused relay.
