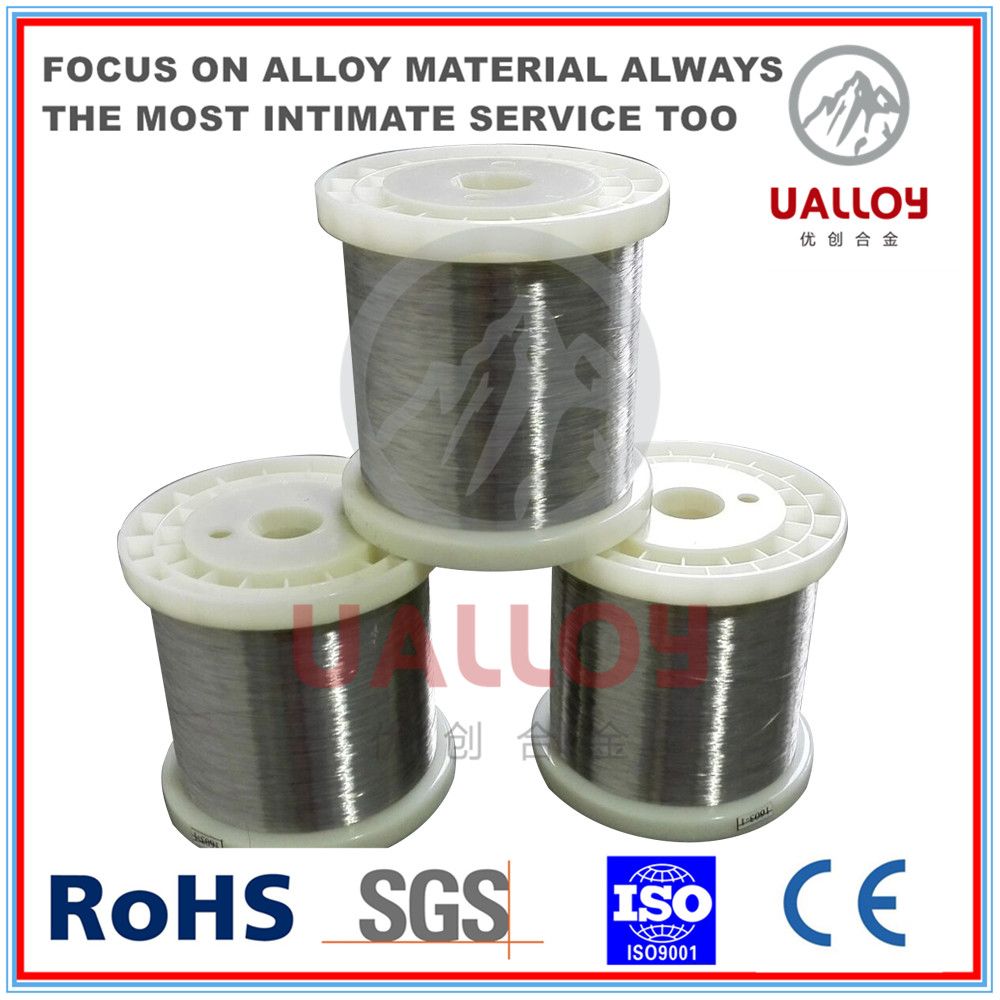

0cr21al6 Electric Heating Tube Insulated Fecral Wire

Prod Model:	0cr21al6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Status:	Oxidized
Max Continuous Service Temp:	1250oc
Resisivity At 20oc:	1.42±0.07 Ohm mm2/M
Density:	7.16 g/cm3
Type:	Insulated
Conductor Type:	Solid
Application:	Heating
Insulation Material:	Silicone Rubber
Certification:	ISO9001
Conductor Material:	Fecral

Product Description

Electric heating tube/Insulated Fecral Wire


                                                                             0Cr21Al6
Chemical Content(%)

C	P	S	Mn	Si	Cr	Ni	Al	Fe	Other
Max0.06	Max 0.025	Max 0.025	Max0.70	Max 1.0	19.0~22.0	Max 0.60	5.0~7.0	Bal.	-


Mechanical Properties

Max Continuous Service Temp	1250ºC
Resisivity at 20ºC	1.42±0.07 ohm mm2/m
Density	7.16 g/cm3
Thermal Conductivity	63.2 KJ/m·h·ºC
Coefficient of Thermal Expansion	14.7×10-6/ºC
Melting Point	1500ºC
Tensile Strength	637~784 Mpa
Elongation	Min 12%
Section Variation Shrink Rate	65~75%
Repeatedly Bend Frequency	Min 5 times
Continuous Service Time	-
Hardness	200-260HB
Micrographic Structure	Ferrite
Magnetic Property	Magnetic



Description: I
T is made of the surface resistance to high temperature insulation treatment of iron chrome aluminum heating element.

Feature:
When used in the 1000 centigrade, there is almost no volatile matter. Being used between 1000 centigrade and 1250 centigrade, the voltatile is less and transparent. It has a long service life used in high temperature. Thermal efficiency increased by more than 20%.

Usage:
It is widely used in all kinds of electric heater and heating equipment.
Especially suitable for making such as high temperature far infrared radiator, electric oven devices such as the heating element.

The main performance
1. Can be arbitrary direction installed and used.
2. There is no need of protective atmosphere or vacuum protection, assembly is convenient, low cost, use security.
3. Heating up fast, high thermal efficiency, temperature uniformity.
4. Service life: 10000--500000 hours.
