1.0m Satellite Vsat Antenna Reflector
| Price: |
US $ 10-100/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
HXWT1.0m |
| Size: |
1.0m |
| Polarization: |
Linear/Circular |
| Drive Type: |
Manual |
| Color: |
White |
| Warranty: |
1 Year |
| Enterprise Nature: |
Manufacturer |
| Customized: |
Available |
| Certificate: |
ISO9001 |
| Market: |
Global |
| Logo: |
Huaxin/Customized |
| Usage: |
Communication Antenna |
| Material: |
Al |
| Usage Occasion: |
Antenna Reflector |
| Operating Wavelength: |
Ku-Band |
| Nature Of Operation: |
Rxtx Antenna |
| Sturcture Form: |
Without Mount |
Product Description

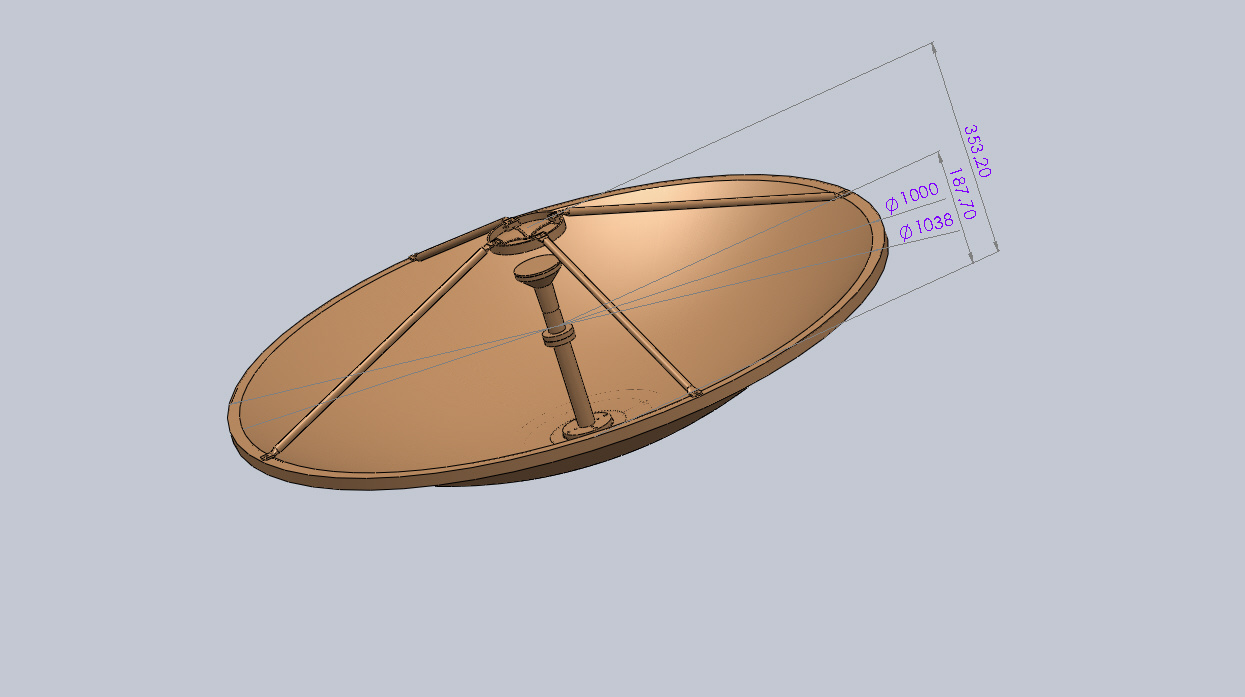

1.0m VSAT Antenna Reflector
Features: Dual shape ring-focus designWhole aluminum or carbon fiber panelHigh gain and excellent sidelobe performanceFactory feed system assembled to reduce installation timeExcellent in stability Approvals or Compliance: ASIASATAPTCHINA SATCOMSINOSAT Main parts:Feed hornOMT & FilterPanelConnecting interface Options:POL motorizedCustomized availableSpecification of 1.0m VSAT Antenna Reflector| R.F SPECIFICATIONS | 0.88m VSAT Antenna Reflector | 1.0m VSAT Antenna Reflector |
| Ku-RECEIVE | Ku-TRANSMIT | Ku-RECEIVE | Ku-TRANSMIT |
| 1. Frequency(GHz) | 12.25-12.75 | 14-14.5 | 12.25-12.75 | 14-14.5 |
| | 10.95-12.75 ★ | 13.75-14.5 ★ | 10.95-12.75 ★ | 13.75-14.5 ★ |
| 2. Typical Gain(dBi) | 39.36 at 12.5GHz | 40.15 at 14.25GHz | 40.47 at 12.5GHz | 41.26 at 14.25GHz |
| 3. VSWR | 1.25:1 |
| 4. Beamwidth (-3dB) | 1.769° | 1.615° | 1.557° | 1.422° |
| 5. Antenna Noise Temperature(K) | 2Port Feed | | 2Port Feed | |
| 10°Elevation | 46K | | 45K | |
| 20°Elevation | 40K | | 39K | |
| 40°Elevation | 36K | | 35K | |
| 6. Typical G/T at 20°EL | 18.94dB/K (12.5GHz, 70K LNA) | 20.9dB/K (12.5GHz, 70K LNA) |
| 7. Power Handling Capability | | 1KW/Port | | 1KW/Port |
| 8. Feed interface | WR-75 |
| 9. Feed Insertion Loss | 0.25dB | 0.2dB | 0.25dB | 0.2dB |
| 10. Tx to Rx Isolation | ≥85dB |
| 11. Cross Pol Isolation | |
| On Axis | ≥35dB |
| 12. Sidelobes | CCIR.580-6 |
| MECHANICAL SPECIFICATION | ENVIRONMENTAL SPECIFICATION |
| 1. Antenna Type | Dual-reflector | 1. Wind Loading, operational (Maintain precision) | / |
| 2. Drive Type | Manual / Motorized | 2. Wind Loading, operational (Decrease precision) | / |
| 3. AZ Travel | / | 3. Wind Loading, survival (Fixed heavenward) | / |
| 4. EL Travel | / | 4. Ambient Temperature | -40°C to 60°C |
| 5. POL Travel | ±90° | 5. Rain | 100mm/h |
| 6. Reflector Material | Precision formed aluminum | 6. Relative humidity | 0 to 100% |
| 7. Reflector Segments | 1 | 7. Solar Radiation | 360 BTU/h/ft2 (1000Kcal/h/m2) |
| 8. Mount Type | Connecting interface | 8. Ice | 25mm on all surface or 13mm on all surface with 130km/h wind gusts |
| 9. Surface Accuracy | 0.5mm(R.M.S) | | |
| | | | |
| Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice. |
| | | | | | |
Company Introduction
Established in 1985, HUAXIN ANTENNA is a professional manufacturer which is specialized in all series of Satellite Earth Station Antennas, Carbon Fiber Antennas and Customized Antennas with size from 0.35m to 16.0m. Keeping adequate inventory and providing professional customized service, HUAXIN is able to meet clients' emergency requirements and satisfy clients' individual needs.
HUAXIN products have achieved ISO9001: 2008 Quality Management System Certification, some are type approved by Asiasat, APT, China Satcom, and some have Intelsat, Eutelsat, SES, and FCC certificates. Integrated with research, development, manufacturing and sales, HUAXIN has developed into one of the leading companies in the market with excellent quality and competitive price domestically and internationally.
Manufacturing Ability
Factory covers an area of 395000 sq FT, which owns workshop area of 215300 sq FT and research & development center area of 54000 sq FT.
Professional R&D center and test center (antenna feed technology lab, microwave test center, antenna far-field test center)
Independently design, develop and manufacture all kinds of antenna mould and antenna parts, which can effectively reduce the cost and shorten the lead time.
Excellent Production Capacity - 2 or 3 Shifts, able to operate big projects in short time; Keep a large stock of goods; Prompt and short period of delivery.

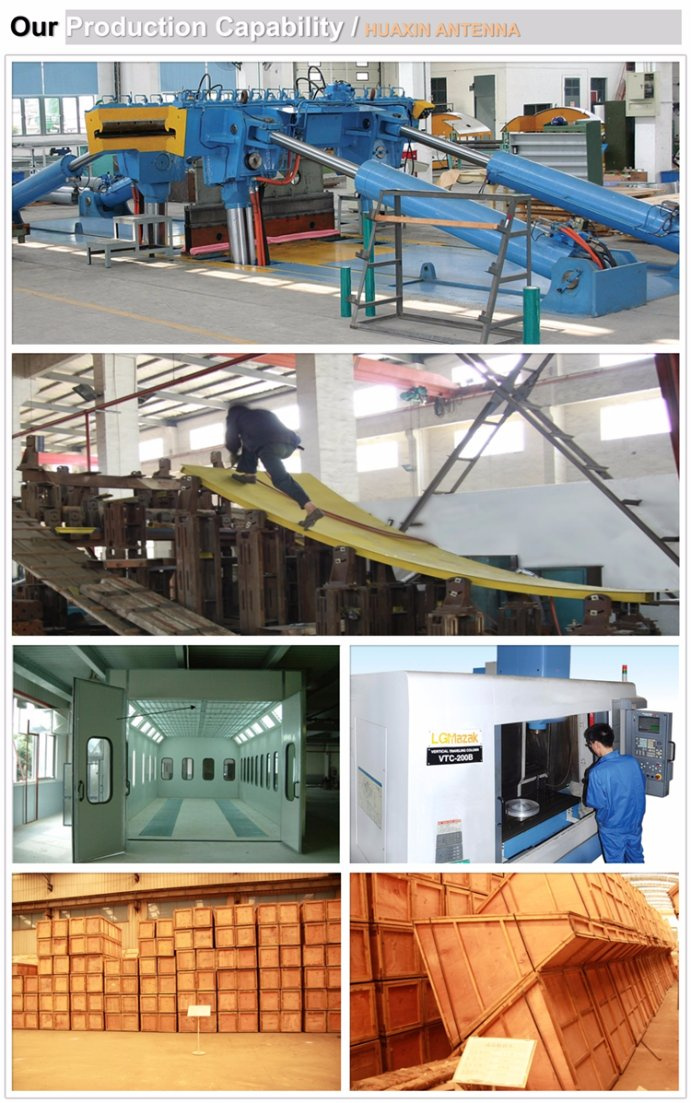

Precise CNC machine, dedicated tooling equipment:
Structural component processing equipment: CNC Machine Centre, CNC Gantry Milling Machine, CNC Boring Machine, CNC Lathe, CNC Vertical Drill Machine, CNC Cutting Machine, CNC Bending Machine
Panel processing equipment: Panel stretcher, Large-tonnage Hydraulic Machine, Autoclave
Tooling: Single Panel Riveting Tooling, Reflector Assembly Tooling
Surface Accuracy Measuring Equipment: MPS/S Single Camera Industrial Photogrammetric System
Electric Performance Test Equipment: Scalar Network Analyzer, Scalar Network Signal Source, Spectrum Analyzer, Signal Source
Surface Treatment Equipment: Shot blasting machine, Surface Grinding Machine, Professional Clean Spray Room
