1.0mm 3p FPC/FFC Connector Flat Cable Connector

Name: 1.0mm 3p FPC/FFC Connector Flat Cable Connector
Brand: all-electronics-online.com
SKU: 814635185
Availability: InStock
Rating: 4.4 (35 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HY-1003F

Product Description

FPC/FFC Connector Flat Cable Connector

Specifications
Pitch	0.5,0.8,1.0,1.25,2.54mm
Poles	2~50
Voltage	60V
Current Rating	0.5~1AMP
Contact Resistance	30mΩ
Working temperature	20~105ºC
Material
Contact	Phosphor Bronze
Solder tab	Stainless Steel
Plating	Tin over Nickle
Housing	High-temp Nylon (UL94V-0)

Features:
1. KEC-unique S-shaped spring is adopted for the spring structure, while realizes 1.0mm in stacking height.
2. Because no part of pins were exposed owing to the bottom wall of the connector in spite of its slim and low profile, a pattern can be laid between lands of tails rows, which enables less limited pattern layouts on boards.
3. The pinching structure, highly resistant to vibration and drop shock is adopted in contacts and the original structure excluding splashed flux or foreign matters attached is adopted on contacting points in order to obtain high contacting reliability.
4. Fine locking mechanism 'adopted for mating structure realizes the nice clicking response and firm retention force aganist unmating despite of the ultra low profile.
5. A checker connector to be mated with a connector is also available to check electrical continuity or short circuit of the connector.

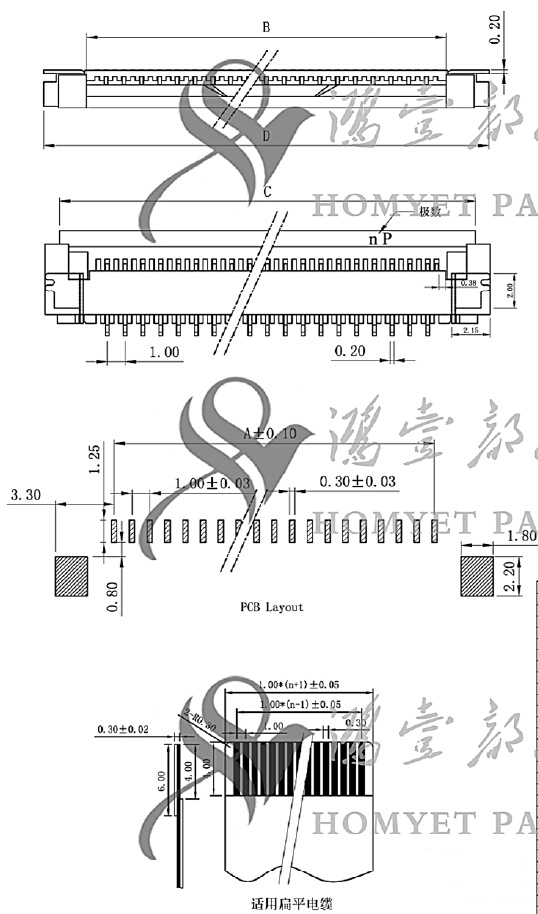

Product Drawing:

Packaging & Shipping :
1) Packaging: Reel&Tape Packing+Carton
2) Shipping:
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
3) Payment Terms: T/T, L/C, PayPal; 20% deposits; 80% balance before delivery

Why Choose Us?
1) We can provide you with different types of micro switches for your selection.
2) MOQ: 2000pcs,mixed order acceptable, welcome trial order.
3) We can provide free samples for your test.
4) Various operating force, height and colour for one item for your choice.
5) Safety, on-time delivery, excellent quality with competitive price.
6) OEM and ODM professional design.

Company Profile:
Homyet Parts Electronics Co.,Ltd has been engaged in the high-quality electronic commponent industry for a long time.Now all of our products have been manufactured under Rohs requirement and tested by SGE association.

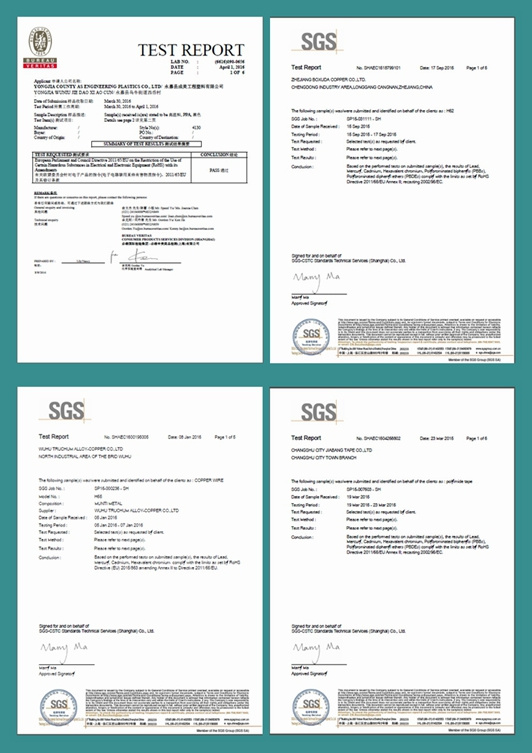

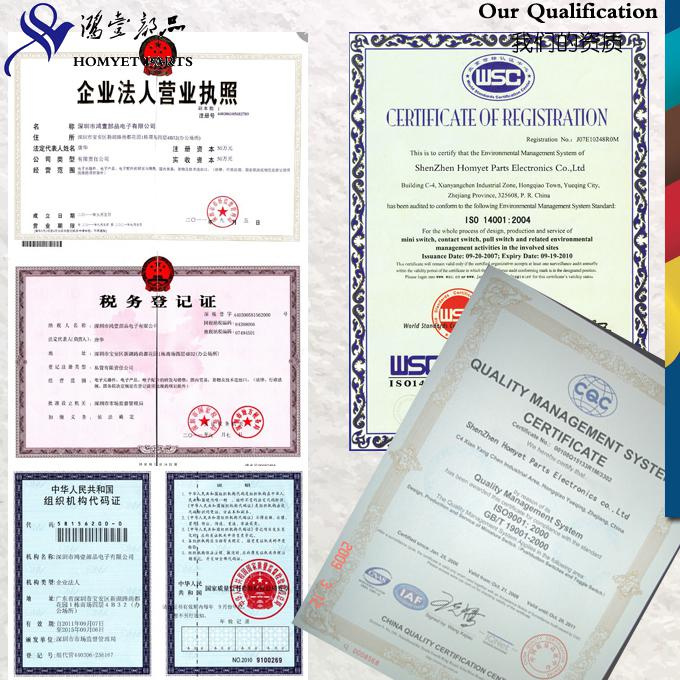

We have obtained the certificates: ISO9001:2000 and ISO14001:2004.
