Antenk Electronics Co., Ltd. >> 1.0mm Housing Doulble/Single Rows Connector Wire AWG 30 to 32

1.0mm Housing Doulble/Single Rows Connector Wire AWG 30 to 32

1.0mm Housing Doulble/Single Rows Connector Wire AWG 30 to 32
Price: US $ 0.02/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 500/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: wire to board connectors series 001
Markets: North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Type: Dual Hole Terminals
Material: Copper Galvanized

Product Description

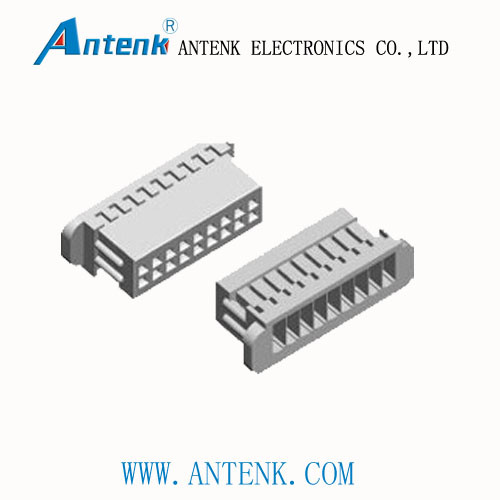

1.0mm Housing doulble/single rows connector wire AWG 30 to 32
Specifiation
1. Current rating: 1.0A AC/DC
2. Voltage rating: 50V AC/DC
3. Contact resistance: 20m ohm. Max
4. Insulation resistance: 100M ohm. Min
5. Withstanding voltage: 500V AC for one minute
6. Operating Tempeature range: -25A degree~+85A degree
Material and Finish
1. Insulator: Nylon 66(UL94V-0)
2. Contact: Phosphor Bronze
3. Plating: Tin plated
4. Application: Wire AWG 30 to 32
