| Prod Model: |
HW9110E 1-10KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Norminal Voltage: |
220/230/240VAC Single Phase 2 Wire+G |
| Norminal Frequency: |
50/60 Hz |
| Voltage Range: |
115~300VAC |
| Power Factor: |
0.98 |
| Frequency Range: |
50Hz:(46~54Hz);60Hz;(56Hz~64Hz) |
| Current Crest Ratio: |
3:1 |
| Communication Port: |
Smart RS232, Snmp (Optional) , USB(Optional) |
| Elevation: |
1500m |
| Recharge Time: |
Recharge Time |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Sorotec |
Product Description

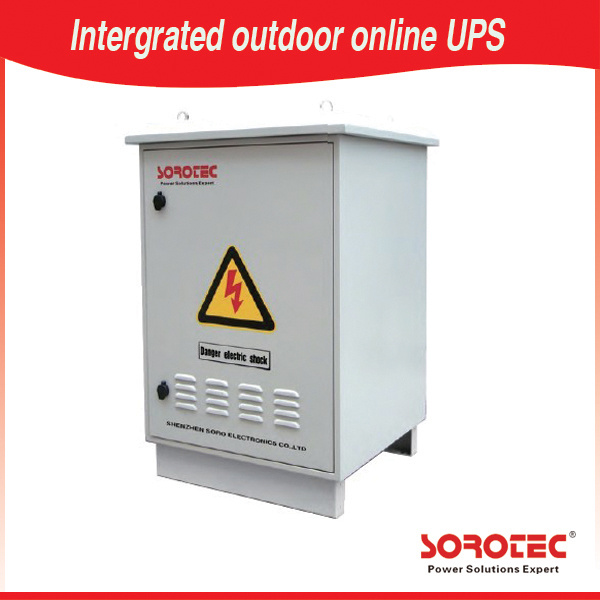

1-10KVA Charge Current Adjustable Data integrated outdoor Online UPSIP55 Outside Plant Power Outdoor Cabinet Outdoor cabinet is the high protection grade battery cabinet Specialized for the outdoor base station power supply Facilities.The system integrate of Intelligent temperature Controlled ventilation system, heater and reserve battery Installation space.The high protection grade battery Cabinet and the advanced temperature control design
Guarantee the reliable operation of the system in the Outdoor environment
Advantages and Characteristics:1.Wide working temperature range:-10--+45° C( Southern type), -40--+45° C(Northern type)
2.The battery warehouse space:Two groups reserved battery installation space, each group capacity biggest to150AH
3.Easy maintenance:Completely front-side operation and maintenance
4.Easy to install:Suitable for the ground, platform of roof, the tower platform etc
5.Protection level:IP44, effectively separated from external factor, guarantee equipment can operate reliably
6.Intelligent ventilation system:Effectively reduce the system consumption
7.Security design:With the intelligent entrance guard alarm function and strong prevention of burglary module
HW9110E SERIES Technical specifications | Model | HW9110E 1-10KVA |
| 1KVA | 2KVA | 3KVA | 6KVA | 10KVA |
| Capacity | 1KVA/0.7KW | 2KVA/1.4KW | 3KVA/.1KW | 6KVA/4.2KW | 10KVA/7KW |
| Nominal Voltage | 220/230/240VAC |
| Nominal Frequency | 50HZ/60HZ |
| Input | |
| Voltage Range | 115~295VAC(±3VAC) | 176~297VAC(±3VAC) |
| Frequency Range | 50HZ:(46HZ~54HZ); 60HZ:(56HZ~6HZ) |
| Soft Start | 0~100% 5sec |
| Power Factor | 0.98 |
| Output | |
| Voltage Precision | 223/230/240x(1±2%) |
| Frequency Precision | 50/60HZ±0.05HZ |
| Power Factor | 0.7/0.8(Optional) Standard 0.7 |
| Wave Distortion | Linear load<3% Non-linear<6% |
| Overload Capability | Overload(110%~150%)for 30 seconds,then automatically transfer to bypass.when load is normal,it can automatically transfer to normal mode. |
| Crest Factor | 3:1 |
| Transfer Time | 0MS(AC to DC) |
| Battery | |
| DC Supply Voltage | 36VDC | 96VDC | 96VDC | 240VDC | 240VDC |
| Charge Current | 4A/8A(optional) | 4A/8A(optional) | 4A/8A(optional) | 4.2A | 4.2A |
| Internal Battery Caoacity | (38/65/80/100AH)optional |
| Panel Displsy | |
| LED | Load level/Battery level,Battry indicator,Unility Power,Bypass,Overload,Fault |
| Communications | |
| Communicate Interface | RS232,SNMP Card(optional) |
| Work Environment | |
| Temperature | -40° C~50° C |
| Humidity | 0~95%(Non-condensing) |
| Storage Temperature | -25° C~55° C |
| Elevation | <1500m |
| Physical Characterisstics | |
| Weight(KG) | N.W | 85 | 125 | 125 | 150 | 155 |
| Dimensions(WxDxH)mm | 613x640x954 | 650x753x1227 | 650x753x1227 | 940x940x1770 | 940x940x1770 |
