| Prod Model: |
HW9110E 1-10KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Voltage: |
220/230/240VAC |
| Nominal Frequency: |
50/60Hz |
| Voltage Range: |
115~295VAC(± 3VAC) |
| Power Factor: |
0.98 |
| Frequency Precision: |
50/60Hz± 0.05Hz |
| Crest Factor: |
3:1 |
| Transfer Time: |
0ms(AC to DC ) |
| Temperature: |
0~40° C |
| Storage Temperature: |
-25° C~55° C |
| Elevation: |
< 1500m |
| Phase: |
Single Phase |
| Type: |
Line Interactive |
| Protection: |
Short Circuit |
| Brand: |
Sorotec |
Product Description

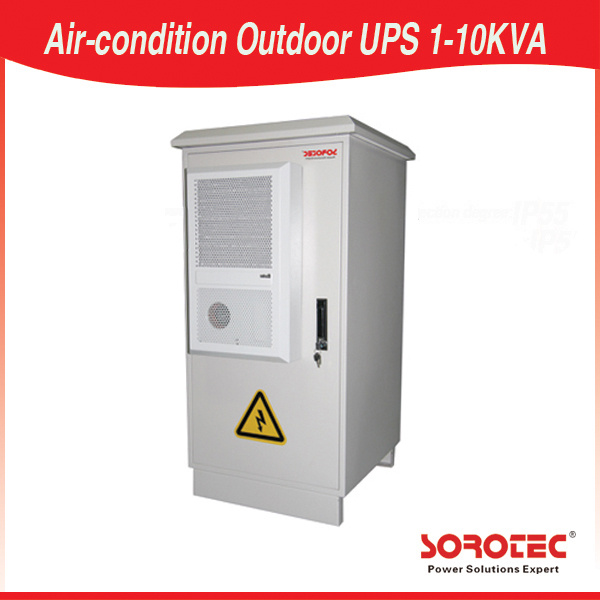

1-10kva Integrated outdoor online ups used for telecomModel: HW9110E 1-10kVA
Nominal voltage: 220/230/240VAC
Nominal Frequency: 50/60Hz
Output Power Factor"0.7/0.8(Optional)
KEY FEATURES:1. SORO outdoor Intelligent High Frequency Online UPSS provide continuous pure sine wave AC power supply for outside communications/network equipment.
2. Double-conversion online design, high temperature resistant, anti-cold, sealing level for IP55; With the wide range of input voltage and frequency of input window(-45%+35% rated voltage and +-10% rated frequency). In many remote areas of China after a severe test of the grid).
APPLICATIONS:1. This UPS is commonly used in the corner of the city, remote roads, mountains, bad environment, such as high temperature(+50° C)/ low temperature(-40V), severe dust, moisture, rain, mist erosion, every poor power quality(voltage durative higher than 260V or less than 160V, Frequency abnormal change) in the area.
| Model | HW9110E 1-10KVA |
| 1KVA | 2KVA | 3KVA | 6KVA | 10KVA |
| Capacity | 1KVA/0.7KW | 2KVA/1.4KW | 3KVA/.1KW | 6KVA/4.2KW | 10KVA/7KW |
| Nominal Voltage | 220/230/240VAC |
| Nominal Frequency | 50HZ/60HZ |
| Input | |
| Voltage Range | 115~295VAC(±3VAC) | 176~297VAC(±3VAC) |
| Frequency Range | 50HZ:(46HZ~54HZ); 60HZ:(56HZ~6HZ) |
| Soft Start | 0~100% 5sec |
| Power Factor | 0.98 |
| Output | |
| Voltage Precision | 223/230/240x(1±2%) |
| Frequency Precision | 50/60HZ±0.05HZ |
| Power Factor | 0.7/0.8(Optional) Standard 0.7 |
| Wave Distortion | Linear load<3% Non-linear<6% |
| Overload Capability | Overload(110%~150%)for 30 seconds,then automatically transfer to bypass.when load is normal,it can automatically transfer to normal mode. |
| Crest Factor | 3:1 |
| Transfer Time | 0MS(AC to DC) |
| Battery | |
| DC Supply Voltage | 36VDC | 96VDC | 96VDC | 240VDC | 240VDC |
| Charge Current | 4A/8A(optional) | 4A/8A(optional) | 4A/8A(optional) | 4.2A | 4.2A |
| Internal Battery Caoacity | (38/65/80/100AH)optional |
| Panel Displsy | |
| LED | Load level/Battery level,Battry indicator,Unility Power,Bypass,Overload,Fault |
| Communications | |
| Communicate Interface | RS232,SNMP Card(optional) |
| Work Environment | |
| Temperature | -40° C~50° C |
| Humidity | 0~95%(Non-condensing) |
| Storage Temperature | -25° C~55° C |
| Elevation | <1500m |
| Physical Characterisstics | |
| Weight(KG) | N.W | 85 | 125 | 125 | 150 | 155 |
| Dimensions(WxDxH)mm | 613x640x954 | 650x753x1227 | 650x753x1227 | 940x940x1770 | 940x940x1770 |
