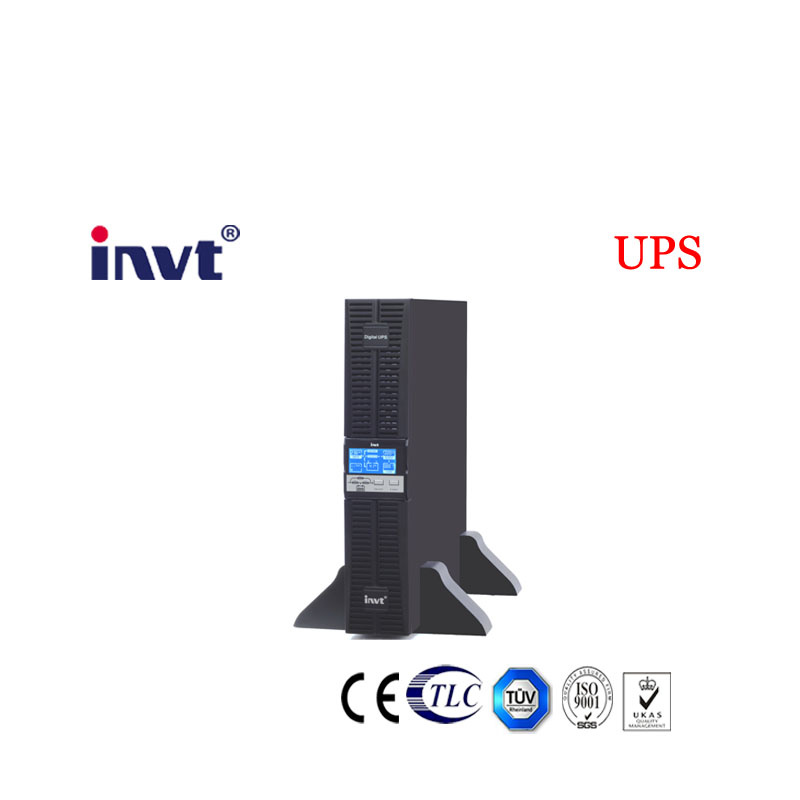

1-10kVA Rack Online UPS (HR1102S)

Name: 1-10kVA Rack Online UPS (HR1102S)
Brand: all-electronics-online.com
SKU: 827548365
Availability: InStock
Rating: 4.4 (70 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HR1102S
Capacity:	2kVA
Input Voltage Range:	110VAC-288VAC
Input Frequency:	40-70Hz
Input PF:	1
Voltage Regulation:	1%
Output Frequency:	50Hz
Output PF:	0.9
Crest Factor:	3
Display:	LED+LCD
Battery Voltage:	72VDC
Phase:	Single Phase
Type:	On-line
Protection:	Short Circuit
Brand:	Invt

Product Description

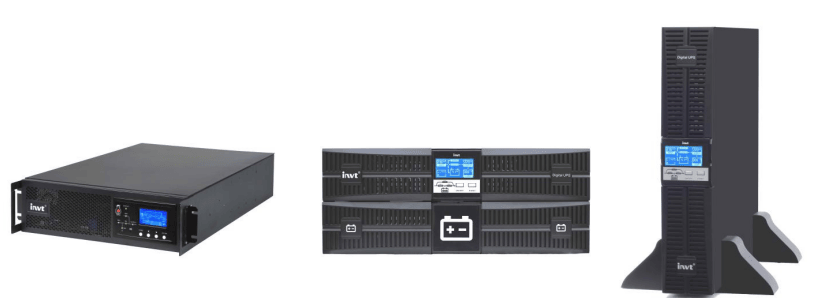

HR11 series is online double-conversion UPS with fully DSP controlled technology. With 19" standard rack design, self-adjusting output frequency and network management, HR11 is a perfect choice for computers, IT equipments and other sensitive devices.

Application
IDC(Internet Dater Center),network,servers and workstations, control system, communication system, office, PC etc

Features
Wide range of input voltage while input PF>99%
Output PF of 0.9
Full protection of overvoltage, circuit short and over temperature
LCD/LED display, monitoring all the operation status
19" standard cabinet and battery cabinet
Automatic fan speed adjustment
Abundant interface:RS232,USB, SNMP, Intelligent Card

MODEL	HR1101S	HR1102S	HR1103S	HR1106S	HR1110S
	HR1101L	HR1102L	HR1103L	HR1106L	HR1110L
Capacity	1kVA	2kVA	3kVA	6kVA	10kVA
Input voltage range	110VAC-288VAC
	100% load@>176VAC; 80% load@>154VAC 70% load@>132VAC; 50% load@>110VAC
Input frequency	40-70Hz
Input PF	≥0.97			≥0.99
Voltage regulation	±1 %
Output frequency	50/60Hz
Output PF	0.9
Overload capability (Inverter mode)	105%-130%: to bypass 1 min; 150%: to bypass after 30 sec			110%: to bypass after 10 min; 130%: to bypass after 1 min; 150%: to bypass after 30 sec, shutdown after 1min
Overload capability (Battery mode)	105%-130%: shutdown after 10 sec; 150%: shutdown after 5 sec			110%: shutdown after 10 min; 125%: shutdown after 10 sec; >125%: shutdown after 1 sec
Crest factor	3:1
Efficiency	87%	91%	90%	92%
Display	LED+LCD
Battery voltage	36VDC	72VDC	96VDC	192VDC
Battery type/number	12V,7Ah*3	12V,7Ah*6	12V,7Ah*8	12V,7Ah*16	12V,9Ah*16
	External
Interface	RS232,SNMP
Optional	USB, SNMP, Dry contacts			USB, SNMP, ECO kit, Dry contacts, Battery cabinet
Operation temperature	0-40ºC
Relative humidity	0-95%(non-condensing)
WDH(mm)	44043086	440480173	440480173	438680218	438680218
	44043086	44048086	44048086	438680130	438680130
Weight(kg)	11.5	25	31	62	70.5
	7	8	9.5	18.5	21.5

As leading total power solution manufacturer in China, INVT POWER is committed to offer high quality products and service to global customers. The powerful R&D ability insures that products and solutions are the best choice for critical power applications.

The product lines cover modular UPS, high frequency UPS, low frequency UPS, EPS, inverter, telecom rectifier, battery. With our own complete intellectual properly rights, the power ranges from 0.5kVA to 800kVA. INVT owns advanced power supply technologies including DSP intelligent control system, fully digital parallel technique, fully IGBT technology UPS, advanced protection technique, etc.

INVT established the most powerful R&D platform for power supply development in China. The platform includes components lab, performance lab, mechanical environmental lab, climate environment lab, EMC lab and safety lab. Due to all of these technologies and platform, INVT products are considered to be the most advanced and reliable in China.
