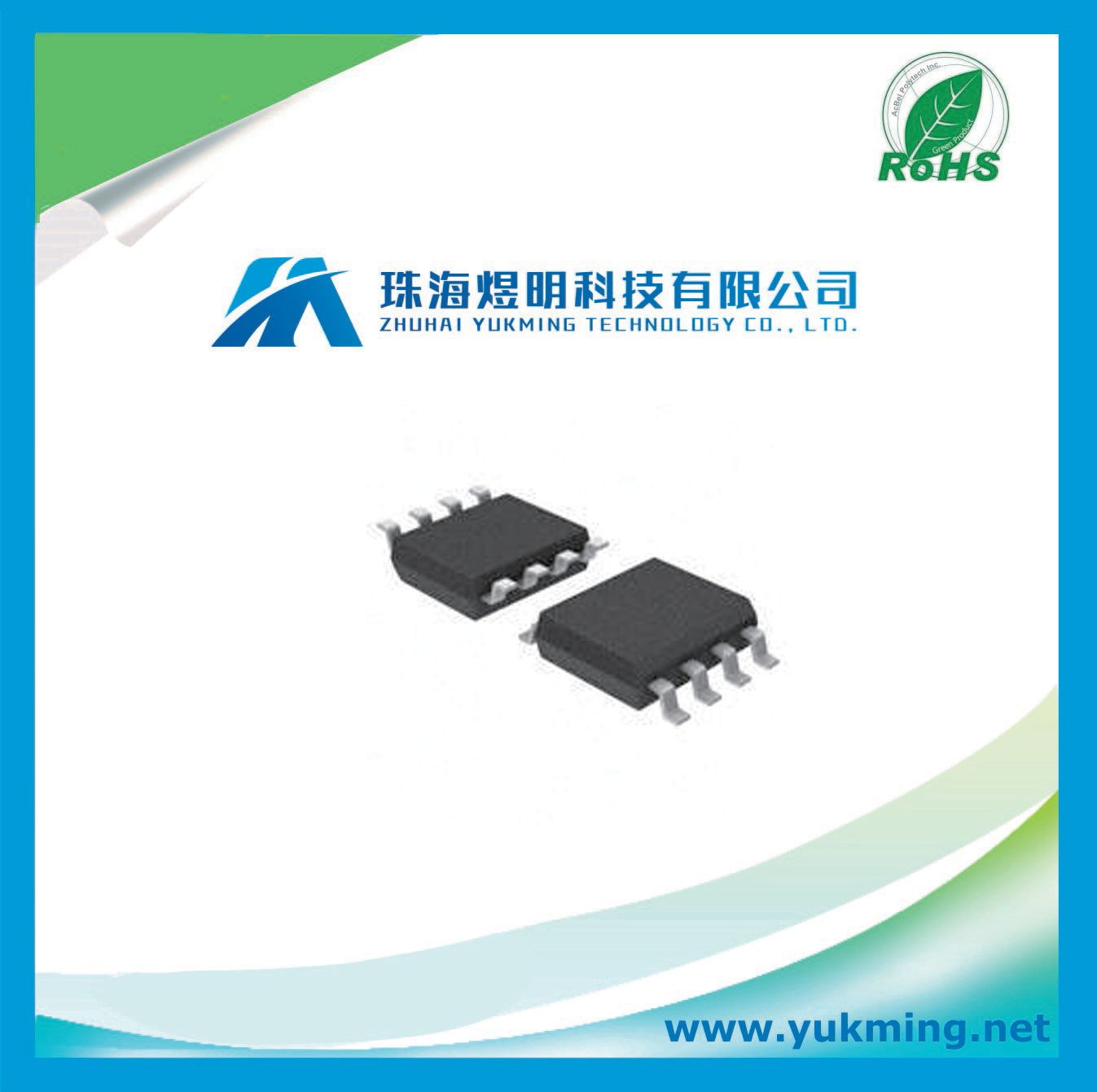

1/10th Unit Load RS-485 Transceiver Iccsp485ren-L/Tr Integrated Circuit

Name: 1/10th Unit Load RS-485 Transceiver Iccsp485ren-L/Tr Integrated Circuit
Brand: all-electronics-online.com
SKU: 801903575
Availability: InStock
Rating: 4.3 (21 reviews)

Price:	US $ 0.2963/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	SP485REN-L/TR
Category:	RS-485 Interface IC
Function:	Transceivers
Operation Supply Voltage:	4.75 V to 5.25 V
Supply Current:	500 Ua
Operation Temperature Range:	- 40 to + 85

Product Description

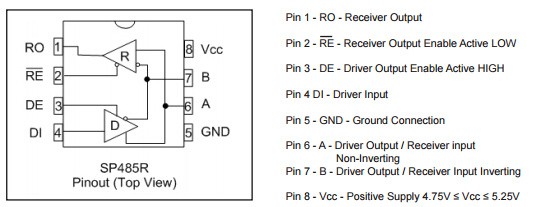

1/10th Unit Load RS-485 Transceiver

The SP485R is a pin-to-pin equivalent to our existing SP485 product and offers a high

receiver input impedance. The higher receiver input impedance allows for connecting over 400 transceivers on a single transmission line without degrading the RS-485 driver signal.The device is packaged in a 8-pin plastic DIP or 8-pin narrow SOIC.

FEATURES

• Allows Over 400 Transceivers On A

Transmission Line (1/10th Unit Load)

• High Impedance on Receiver Inputs

(RIN = 150kΩ typical)

• Half-Duplex Configuration Consistent

With Industry Standard Pinout

• -7V to +12V Common Mode Input

Voltage Range

• Low Power Consumption (250mW)

• Separate Driver and Receiver Enable

Category Integrated Circuits (ICs)

Family Interface - Drivers, Receivers, Transceivers

Manufacturer Exar Corporation

Packaging ? Tape & Reel (TR) ?

Part Status Active

Type Transceiver

Protocol RS422, RS485

Number of Drivers/Receivers 1/1

Duplex Half

Data Rate 5Mbps

Voltage - Supply 4.75 V ~ 5.25 V

Operating Temperature -40°C ~ 85°C

Mounting Type Surface Mount

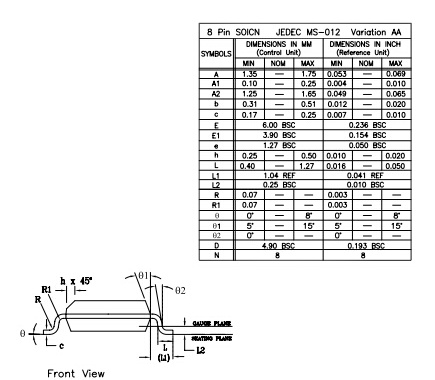

Package / Case 8-SOIC (0.154", 3.90mm Width)

Supplier Device Package 8-SOIC
