| Prod Model: |
KA-DP03D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
2 Years |
| Samples Delivery Time: |
Within 2 Days |
| Bulk Order Delivery: |
Within 25 Days |
| Usage: |
All Kinds of Lamp |
| Dimmable Function: |
Dimmable Function Available |
| Type: |
Microwave Sensor Switch |
| Wires: |
NPN (',Three-Wires) |
| Standard: |
Standard |
| Certification: |
CE |
| Application: |
Corridor, Warehouse, Garage, Toilets etc. |
| Principle: |
Microwave Radar Motion Sensor |
Product Description
KA-DP03D Dimmable Microwave Sensor For LED Lamp Specification:1) Power source: 100-130V/AC; 220-240V/AC
2) Power frequency: 50/60Hz
3) Transmission power: <0.2mW
4) Rated load: 1200W/5A, Max, tungsten(cosφ =1)(220-240V/AC)
300W/2.5A, Max, fluorescent(cosφ =0.5)(220-240V/AC)
600W/5A, Max, tungsten(cosφ =1)(100-130V/AC)
150W/2.5A, Max, fluorescent(cosφ =0.5)(100-130V/AC)
5) Standby brightness control range: 10~60% adjustable
6) HF system: 5.8GHz CW electric wave, ISM band
7) Detection angle: 360°
8) Detection range: 2m-5m-10m(radii. )(adjustable)
9) Time setting: 12sec± 3sec/3min± 1min/15min± 2min/30min± 3min(adjustable)
10) Light-control: 10LUX-100LUX-500LUX-2000LUX(adjustable)
11) Installation sit: Indoors, ceiling mounting
12) Working temperature: -15° C~+70° C
13) Power consumption: Approx. 0.5W
14) Standby brightness control range: 10~60% adjustable
KA-DP03D Main Features:1. The brightness is adjustable, it is energy saving and can extend the lifetime of the light tubes. The
Microwave sensor is using together with dimmable electronic ballasts, it will automatically turn down the
Brightness of the light tubes when nobody there at a short time (The users can set up the brightness by
Themselves according to the actual usage), and the light will quickly start to enter in a full-brightness status
When somebody there. It can avoid the lifetime reduction of the light tube caused by the frequent start and the
Flicker phenomenon caused by the start at the full voltage.
2. Lower high-frequency transmitting power. The high-frequency transmitting power of conventional
Microwave sensor is around 10mW (EMI limiting value≤ 25mW). The high-frequency transmitting power of this
Product is less than 0.2mW, it is 1/50 of conventional microwave sensor in high-frequency transmitting power
And 1/625 of cell phones and micro-wave oven in high-frequency transmitting power (EMI limiting value≤ 1000)
3. Higher detection sensitivity. The detection range of microwave sensor is finite because of the limit of the
Transmitting power, most of the detection range is not more than 8 meters. If we want to achieve a farther
Detection range, the conventional method is to increase high frequency transmitting power. But It will lead to
The superscale of the limiting value of the high-frequency power. This products introduce double-layer special
Designi, it can greatly increase the resolving power of the detection ability, but we don't need to increase
(evenmore reduce)the high frequency transmitting power, the detection range can be 20 meters or father.

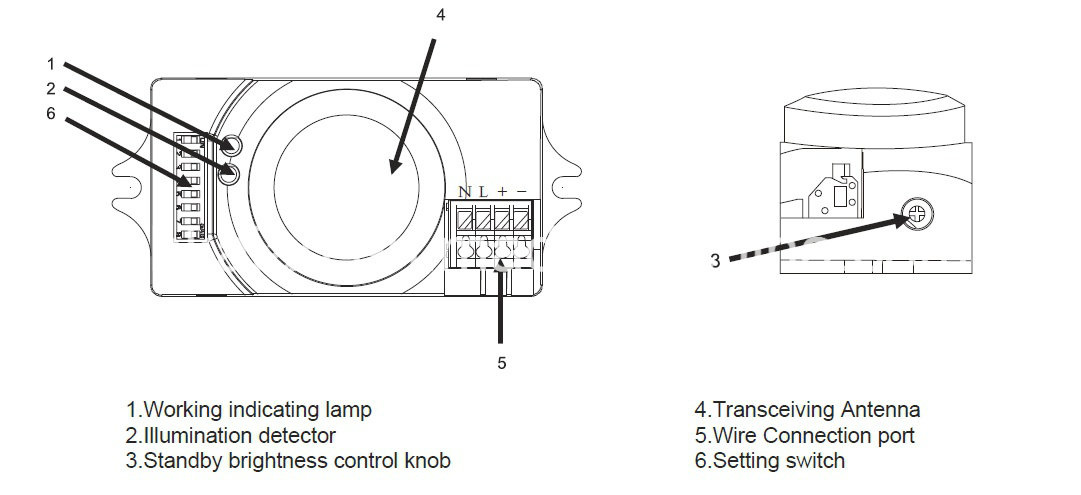

KA-DP03D Components Description:

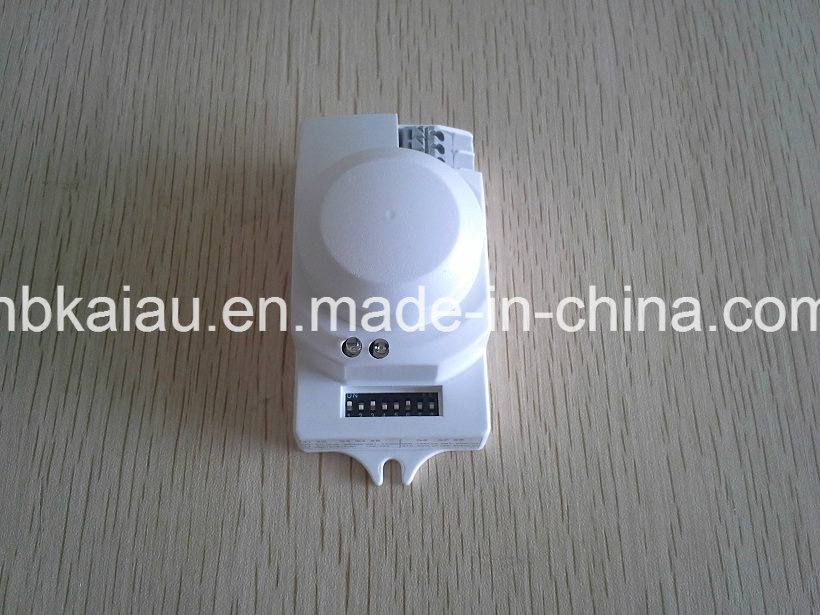

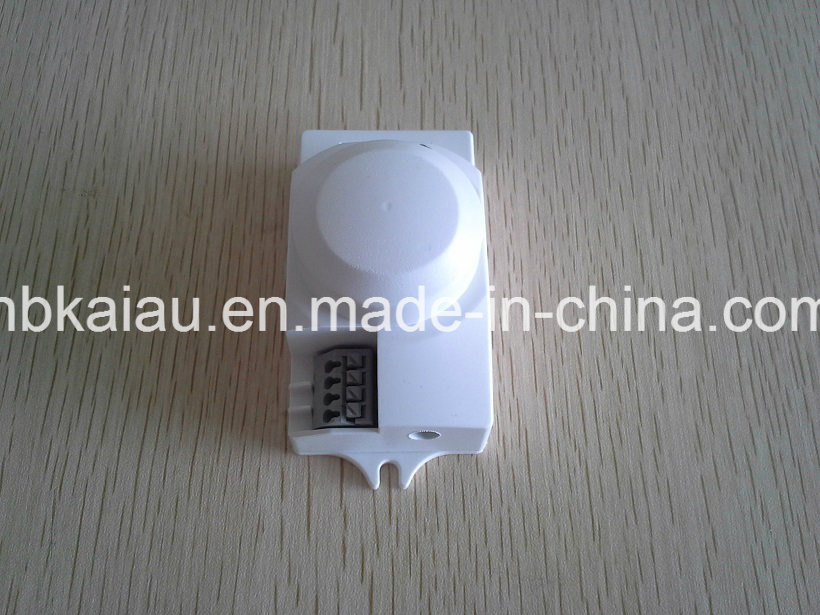

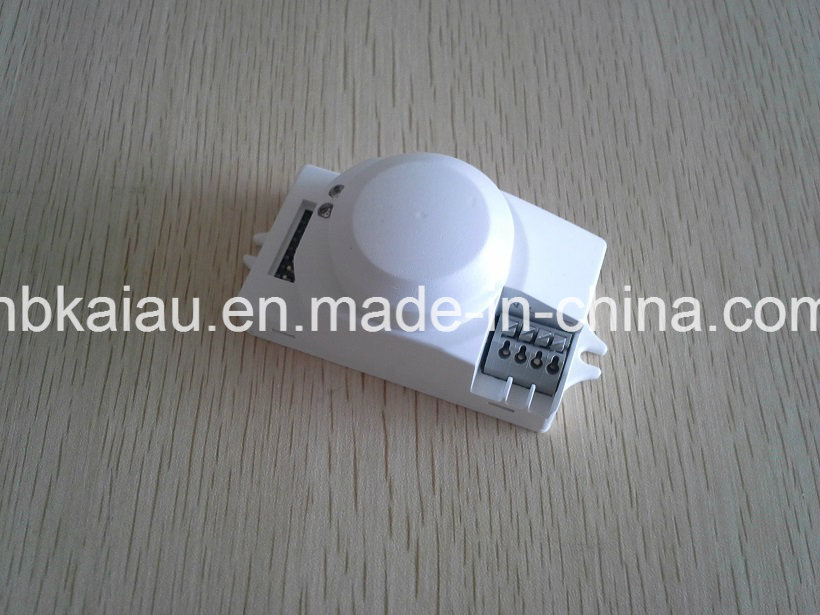

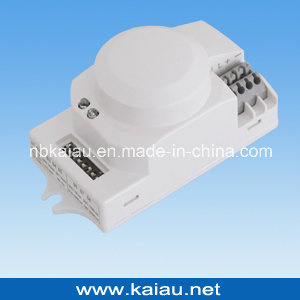

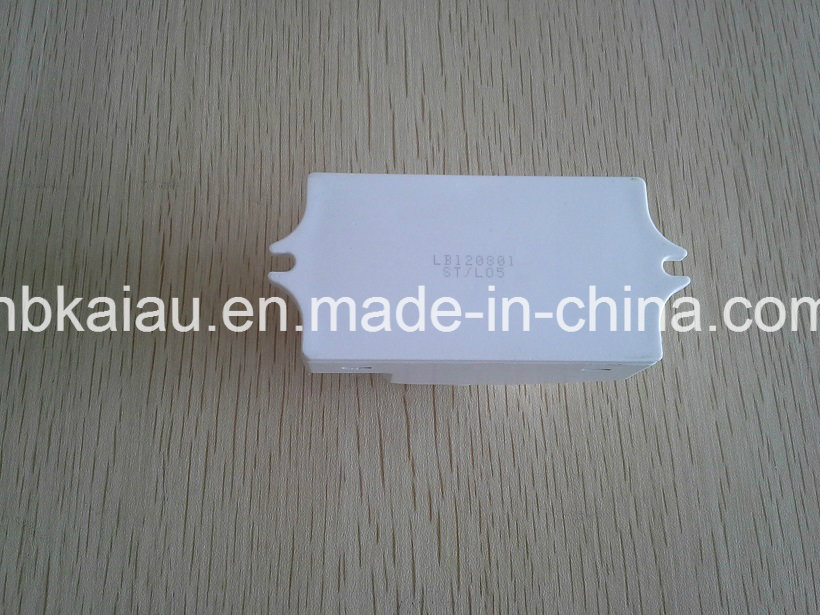

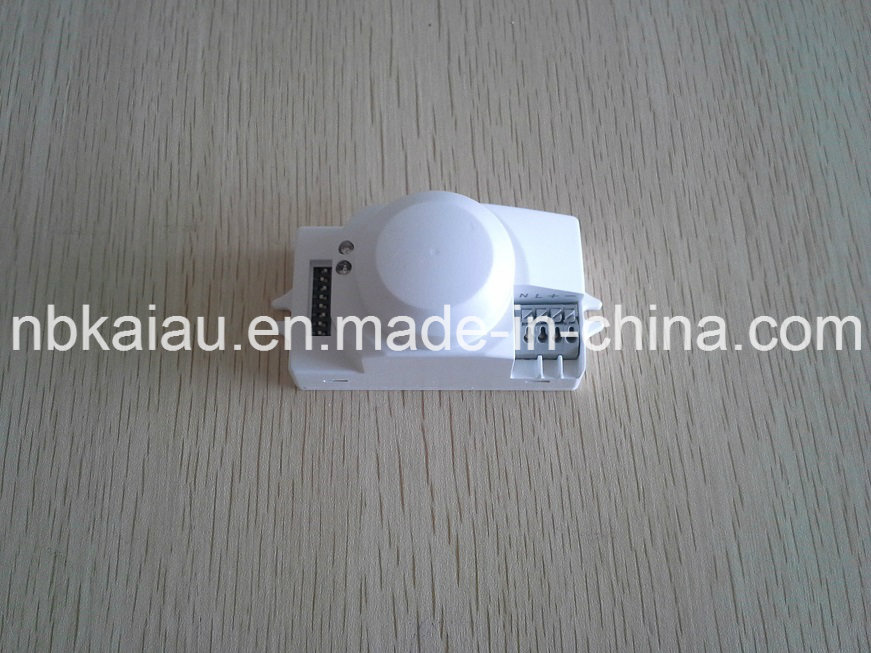

KA-DP03D Actual photos:
