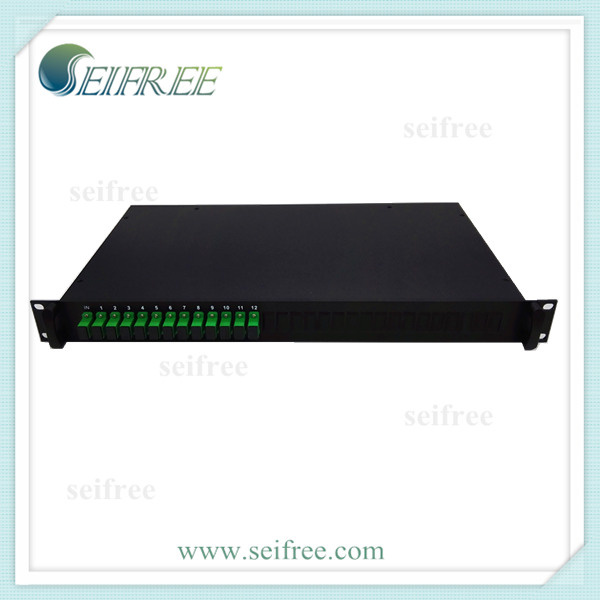

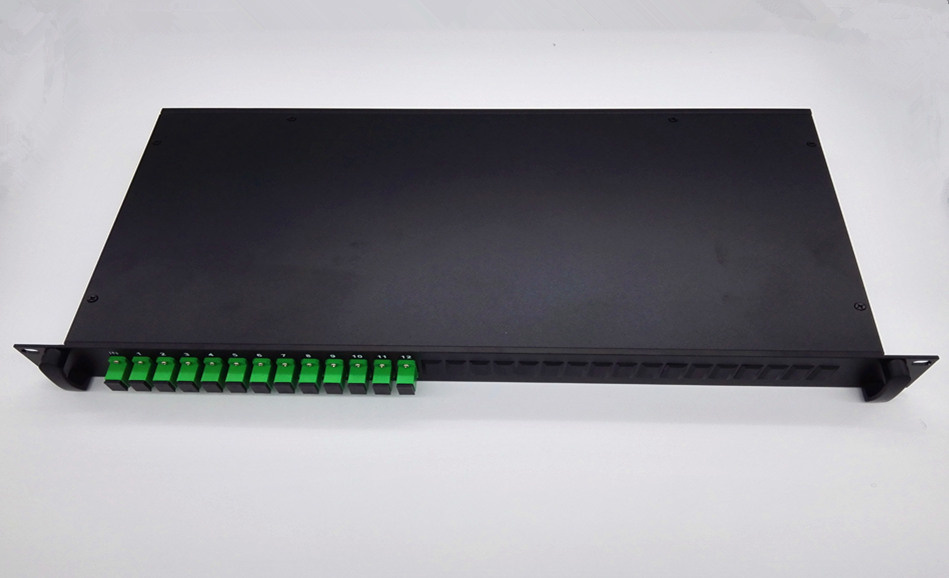

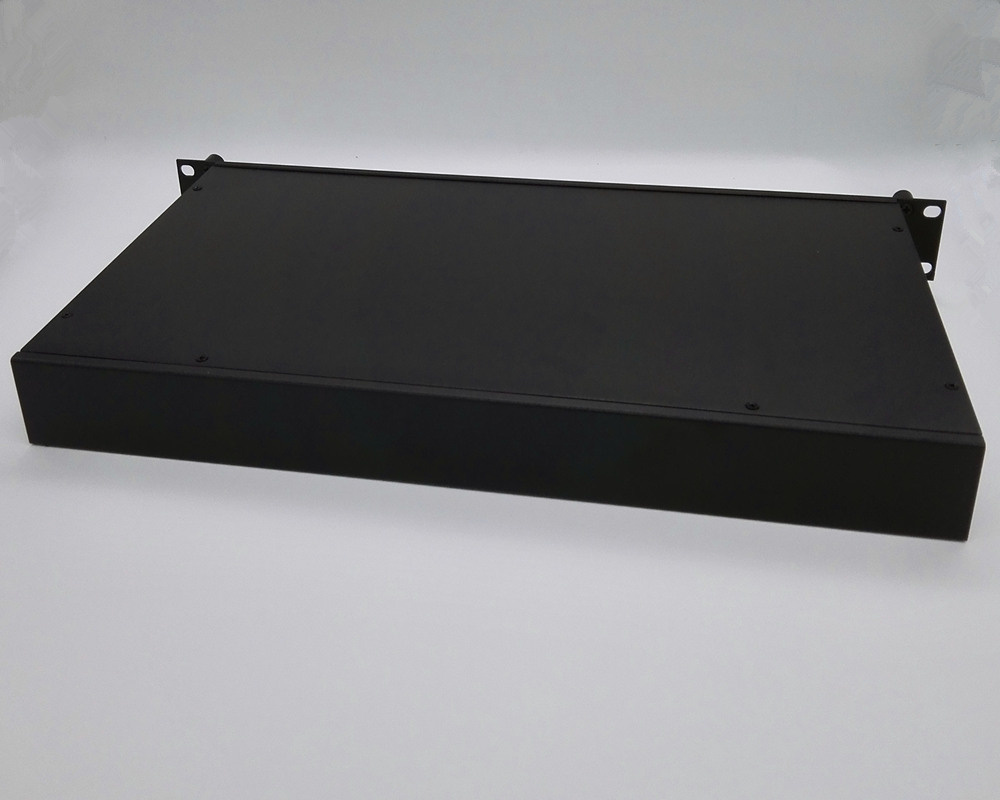

1*12 Optic CATV Splitter Fused Splitter of 19 Rack

Prod Model:	SSTC-0112-345-00-E-00-00-D3-SA
Ports:	1*12
Fiber Type:	SMF-28e
Connector Type:	Sc APC
Length:	5cm
Coupling Ratio:	50/50
Mode:	Single Mode
Return Loss:	>50
Directivity:	>55
Size:	D3 485*43.5*230
Diameter:	0.9mm
Usage:	Laptop
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	RoHS
Condition:	New

Product Description

Single Mode Tree Broadband Fiber Coupler
The Single Mode Tree Broadband Fiber Coupler based on Two Parallel Fiber fused bi-conical taper technology. It has single or multi window. The devices are designed and manufactured to meet Telcordia GR-1209-CORE requirements and RoHS compliant.

Applications                                                                                                 Features
Telecommunication system                                                                                    Low excess loss
Access network                                                                                                     Low PDL
FTTx                                                                                                                     High reliability
LAN





Ordering Information
SSTC-       -       -       -       -       -       -       -


Ports	Wavelength	Coupling ratio	Fiber Type	Pigtail Dia.	Pigtail Length	Package	Connector Type
13=1x3	82=820nm	00=50/50	H=Hi 780	09=0.9mm	05=50cm	B2(3)	FU(A)=FC/UPC(APC)
14=1x4	98=980nm		F=Flex 1060	2=2mm	10=100cm	C2	SU(A)=SC/UPC(APC)
15=1X5			E=SMF-28e	3=3mm		D1(3)
	13=1310nm		B=SMF-28e XB		20=200cm	/	LU(A)=LC/UPC(APC)
18=1x8	35=1310&1550nm	X=Customization

Package and Mounting Dimension (mm)

Stainless Steel Tube (A)		Plastic Box (B)		Aluminum alloy Box (C)		Aluminum alloy Rack (D)
Outline	Outline	Outline	Mounting	Outline	Mounting	Outline
/	/	B1=90x20x9.5	50x12x2Φ3.2	C1=85x18x8.4	44.5x13x2Φ3	D1=129x29x160 1U LGX
		B2=100x80x10	70x73.5x4Φ3.2	C2=90x72x8	86x68x4Φ3	D2=129x58x160 2U LGX
		B3=120x80x18	80x74.5x4Φ3.2	C3=110x95x7.5	99x84x4Φ3.5	D3=485x43.5x230 1U 19' RACK
		B4=141x115x18	100x106x4Φ3.2	C4=110x95x15	99x84x4Φ3.5	D4=485x87x230 2U 19' RACK
Item		1X3	1X4	1X5	1X6	1X7	1X8
φ0.9(φ2,φ3) Plastic Box		B2	B2	B2	B2	B2	B2
φ0.9(φ2/φ3) Aluminum Alloy Box		C2	C2	C2	C2	C2	C2
LGX		D1	D1	D1	D1	D1	D2
19 Inches Rack		D3	D3	D3	D3	D3	D3

Specification

Operating Wavelength(nm)	820±20/980±40/ 1310±40/1550±40			980&1550±40/ 1310&1490&1550±40			Parameter	Unit	Value
Ports (m x n)	Insertion Loss	PDL	Uni.	Insertion Loss	PDL	Uni.	Fiber Type	/	Hi 780/ Flex 1060/ SMF-28e/ SMF-28e XB
	dB
1x3	≤5.40	≤0.20	≤0.50	≤5.60	≤0.20	≤0.60	Directivity	dB	>55
1x4(2x4)	≤6.90(7.10)	≤0.20	≤0.70	≤7.10(7.30)	≤0.20	≤0.80	Return Loss	dB	>50
1x5	≤7.90	≤0.30	≤1.10	≤8.10	≤0.30	≤1.20	Pigtail Dia.	mm	0.9 / 2 / 3
1x6	≤8.90	≤0.30	≤1.30	≤9.10	≤0.30	≤1.50	Pigtail Length	cm	>50
1x7	≤9.60	≤0.30	≤1.40	≤9.80	≤0.30	≤1.80	Operating Tem.	ºC	-10~ +70
1x8(2x8)	≤10.4(10.6)	≤0.30	≤1.50	≤10.6(10.8)	≤0.30	≤1.70	Storage Tem.	ºC	-40~ +85
