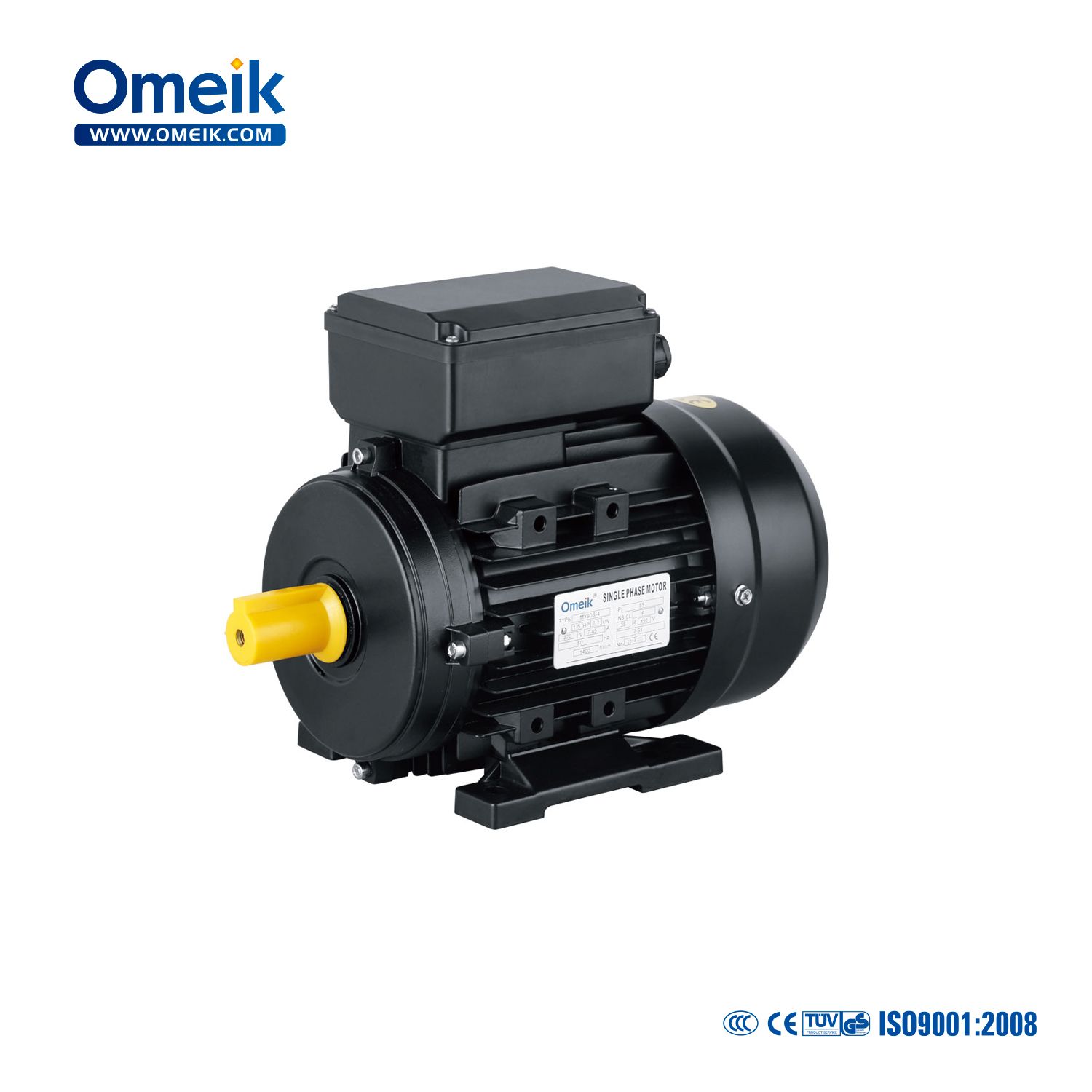

1.1kw/1.5HP IEC Standard Induction Motors for Cleaning Machine

Name: 1.1kw/1.5HP IEC Standard Induction Motors for Cleaning Machine
Brand: all-electronics-online.com
SKU: 833010235
Availability: InStock
Rating: 4.8 (59 reviews)

Price:	US $ 46-50/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	MC90S-2
Insulation Class:	Class B/F
Cooling Method:	IC0141
Protection Class:	IP44/IP54/IP55
Duty:	Continuous(S1)
Mounting:	B3/B5/B14/B34/B35
Housing:	Aluminum
Certificate:	Ce / ISO9001
Number Of Stator:	Single-Phase
Function:	Driving
Certification:	Ce
Brand:	Omeik/OEM

Product Description

MC rewinding electric motors

Advantage:
1. Good performance
2. Safe & reliable operation
3. Nice appearance
4. Low noise
5. Little vibration
6. Light weight & simple construction

Application:

MC series starter motor can be used on air compressor, pumps, refrigeration, medical apparatus and instruments, and many other machines that need full-load start.

Operating Conditions:

1. Ambient temperature: -15º C≤ ≤ 40º C
2. Altitude: ≤ 1000m
3. Rated voltage: 220V
4. Rated frequency: 50Hz/60Hz
5. Duty: Continuous(S1)
6. Insulation class: Class B/F
7. Protection class: IP44/IP54/IP55
8. Cooling method: IC0141

Note: If you have any special requirements, please contact us.

Model	Output		Current	Power	Eff	Speed	Tstart/Tn	Ist/In
Model	KW	HP	(A)	Factor	(%)	(r/min)	Tstart/Tn	Ist/In
MC711-2	0.18	0.24	1.89	0.72	60	2750	3	6.5	1.8
MC721-2	0.25	0.33	2.4	0.74	64	2770	3	6.5	1.8
MC801-2	0.37	0.5	3.36	0.77	65	2800	2.8	6.5	1.8
MC802-2	0.55	0.75	4.65	0.79	68	2810	2.8	6.5	1.8
MC90S-2	0.75	1	6.09	0.8	70	2820	2.5	6.5	1.8
MC90L-2	1.1	1.5	8.68	0.8	72	2820	2.5	6.5	1.8
MC100L1-2	1.5	2	11.4	0.81	74	2830	2.5	7	1.8
MC100L2-2	2.2	3	16.5	0.81	75	2830	2.2	7	1.8
MC112-2	3	4	21.9	0.82	76	2840	2.2	7	1.8
MC711-4	0.12	0.16	1.88	0.58	50	1350	3	6	1.8
MC721-4	0.18	0.24	2.49	0.62	53	1370	3	6	1.8
MC801-4	0.25	0.33	3.11	0.63	58	1400	2.8	6	1.8
MC802-4	0.37	0.5	4.24	0.64	62	1410	2.8	6	1.8
MC90S-4	0.55	0.75	5.49	0.69	66	1420	2.5	6	1.8
MC90L-4	0.75	1	6.87	0.73	68	1420	2.5	6	1.8
MC100L1-4	1.1	1.5	9.52	0.74	71	1430	2.5	6.5	1.8
MC100L2-4	1.5	2	12.5	0.75	73	1430	2.5	6.5	1.8
MC112-4	2.2	3	17.8	0.76	74	1440	2.2	6.5	1.8

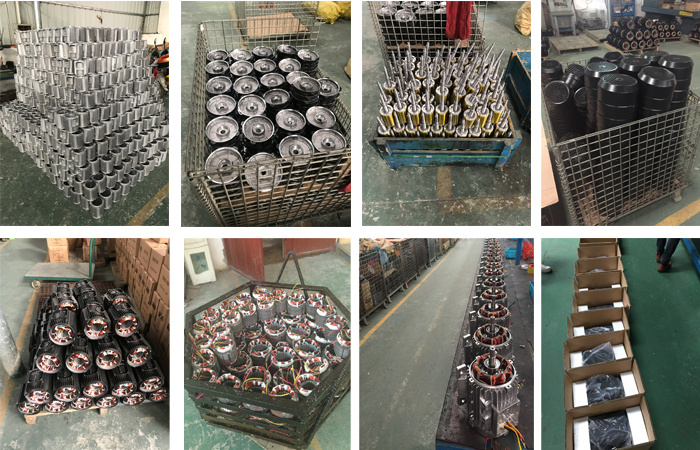

SPARE PARTS:

PACKING WAYS

FAQ

Q: Do you offer OEM service?
A: Yes

Q: What is your payment term?

A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.

Q: What is your lead time?

A: About 30 days after receiving deposit or original L/C.

Q: What certifiicates do you have?

A: We have CE, ISO. And we can apply others you need.

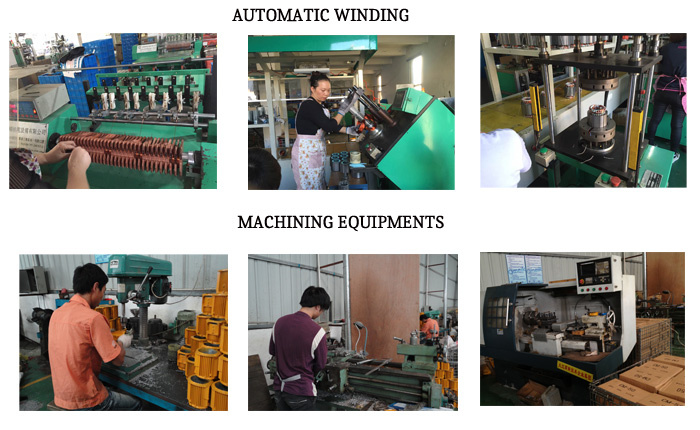

Fuan Omeik Electric Co., Ltd. is a professional manufacturer of water pumps and electric motors, located in Fuan Electrical Machinery and Appliances Zone, Fuan, Fujian, China and established in 1999. It's a fair integrative company with scientific research, production, and sell, which possesses advance producing and testing equipments and strong technology team. The company always strictly follows the ISO9001 quality management system to manage the production which guarantee of good quality.

In order to meet the challenge of the keen market competition, the company has introduced advanced technology and machinery as well as computerized testing equipment to further improving the quality of the products. The company insists on "survives on high quality and honest with business", Basis on this principle our quality products have been exported old over the world, such as South East Asia, Middle East, Australia, Europe and South America etc.

We are longing for hand in hand cooperation with more friends in the whole world, know that quality product and the the after sale services, altogether create happy future, we are warmly welcome your coming and the support.
