Shenzhen Dinstar Co., Ltd. >> 1/2/4/8* E1/T1 Optional MTG1000-1e1 T38 Fax

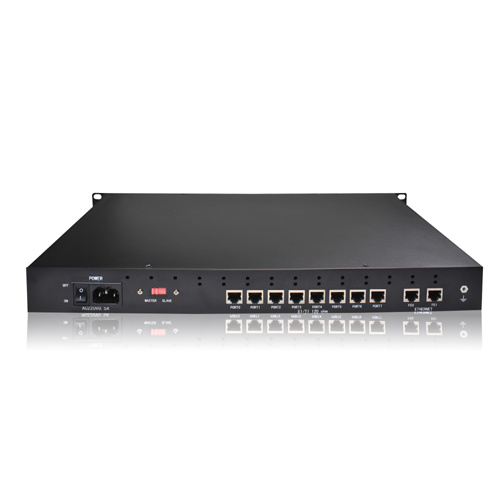

1/2/4/8* E1/T1 Optional MTG1000-1e1 T38 Fax

1/2/4/8* E1/T1 Optional MTG1000-1e1 T38 Fax
Price: Negotiable
Trade Terms: DHL,UPS ,FEDEX,EMS
Min Order: 1/Piece
Pay Type: L/C,Western Union,Paypal
Contact Supplier
Showroom Product Company Profile
Prod Model: MTG1000-1E1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension (Wxdxh): 430x 300 X 44.5 Mm(1u) Standard Rack
Type1: Wireless
Usage: Trunk Gateway
Support Network: Switch
Type: Wireless

Product Description

MTG1000 series is a carrier-grade NGN trunk gateway. There are four different models with 1*E1/T1(optional), 2*E1/T1(optional), 4*E1/T1, and 8*E1/T1.

It supports SIP-T/SIP/H. 323 protocol to connect with SIP-T/SIP/H. 323 soft switch, and supports PRI/SS7 signaling protocol to connect with PSTN. Up to 240 channels processing capacity, it guarantees the maximum performance of 8*E1/T1 trunk gateway ( G. 711/G. 723/G. 729 codec calls and T. 38/Pass-through Fax).

MTG1000 supports Intelligent Multiple Trunk Routing technology, makes the operator easy to manage trunk routing by price optimum rule, and the automatic switch-over between multiple trunk routing makes the network have high reliability.

MTG1000 is designed basing on service-oriented architecture, rich service functions are supported for VoIP business operation, such as Call through, Call back, Calling card, Call shop, Call center, Fax over IP, etc. More and more service functions are customizable for VoIP operator.

IP Transport TCP/UDP, ARP/RARP, NTP, DNS, TFTP, HTTP, TELNET, ICMP, STUN
Voice Transport RTP/RTCP, Real-Time Transfer Protocol / Real-Time Transport Control Protocol
Firmware Update TFTP, FTP, WEB
Configuration & Monitoring Configuration & Monitoring via WEB, TELNET, RS-232
Configuration backup & upload Configuration update & backup via WEB browser
Central Managed SNMP V1/V2, TR-069 & TR-104
Voice Routing E1/T1 Group, Timeslots Group, IP Group, Trunk Group, Dial Plan and Number Manipulation,
Working Mode Access Mode, Peer Mode
IVR, CRBT Multi-level IVR. Color Ring Back Tone Customizable
Standard Services Caller ID, Call Transfer, Call Forward, Call Waiting and Change Caller ID
Power 110~240VAC, 50~60Hz, 1.2A
Environmental Operational: 32~104F / 0~40° C
Storage: -4~176F /-20~80° C
Humidity: 10%-90%, no-condensing
Shenzhen Dinstar Technologies Co., Ltd. is a hi-tech enterprise specializing in VoIP solutions and IP voice value-added services. It is the IP voice product and system manufacturer with the leading market share in China and with the most complete product lines in this industry.

Dinstar has a professional and high-quality R&D team made up of lots of experts who are experienced in telecom network, data communication, mobile communication, or network integration. Since the establishment, Dinstar has been dedicated in making use of innovative technology and service to create values for customers and help individuals, enterprises, and governmental institutions to realize healthy development and create resplendence. In the future, Dinstar will depend on practical, enterprising and innovative spirit to grow up into an outstanding global.

2010
Our oversea market revenue reached 30% of total income.

2009
VoIP GSM/CDMA gateway which support MGCP and SIP were successfully developed and manufactured. From 1/4/8 channels.

2008
We have delivered more than5, 000, 000 lines since established.

2007
We have delivered more than 3, 000, 000 lines since established.

2006
We have delivered more than 1, 000, 000 lines since established. Billing system which support 1, 000, 000, 000 CDRs per year were successfully developed.

2005
Access gateway which support MGCP and SIP were successfully developed and manufactured. From 1/2/4/8/16 prots.

2004
Media gateway which suport SS7 and PRI was successfully developed and manufactured.

2003
NGN softswitch successfully developed and manufactured.
