| Prod Model: |

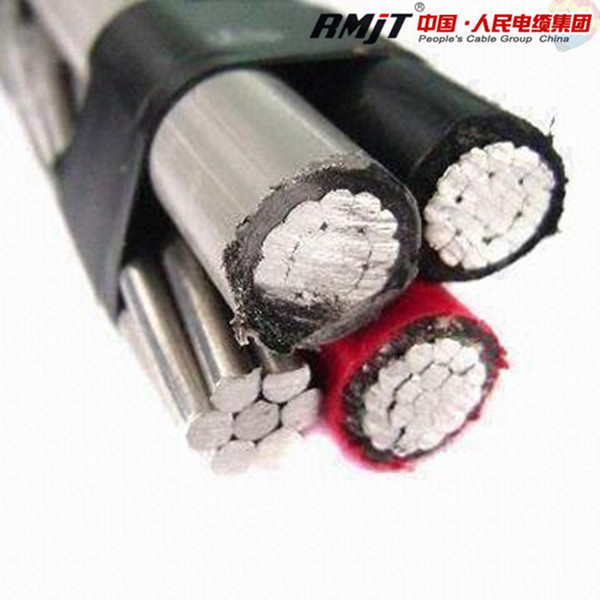

1/0 2/0 4/0 XLPE cable |
| Number Of Wire: |
Solid, Two, Three.. |
| Type: |
Bare |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Aluminum |
| Insulation Material: |
Bare |
| Certification: |
CCC |
| Sheath Material: |
Bare |
| Range Of Application: |
Overhead |
| Brand: |
Rmjt |
Product Description
Applications:
Conductor(AAC, AAAC and ACSR) have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.
Material Standard:
1) The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997(equivalent to IEC 60889:1987).
2) The zinc coated steel wire used for ACSR conforms to IEC 60888:1987.
3) Production can be arranged according to customers requirements for material standard,etc.
Construction of All Aluminum Conductor and Aluminum Conductor Steel Reinforced
Standards:
ASTM-B232 Concentric-Lay-Stranded Aluminum 1350 Conductors
BS215-2 aluminum conductors steel-reinforced For overhead power transmission
DIN48204 Steel reinforced aluminum stranded conductors
IEC209 Aluminum stranded conductor steel reinforced
Customized type available.
Technical characteristics
(1) AAC
AAC Technical Characteristics Based on-ASTM Standard
| Code | Size | Section | No. of
Strands | Diameter
Strands | Weight | Rated
Strength | Maximunm
Resistance
at 20°C |
|
|
| AWG/MCM | in² | mm | mm | kg/km | kg | Ω/km |
| Poppy | 1/0 | 53.51 | 7×3.12 | 9.36 | 147.5 | 897 | 0.539 |
| Aster | 2/0 | 67.44 | 7×3.50 | 10.51 | 186 | 1136 | 0.427 |
| Phlox | 3/0 | 85.02 | 7×3.93 | 11.8 | 235 | 1375 | 0.339 |
| Oxlip | 4/0 | 107 | 7×4.42 | 13.25 | 296 | 1738 | 0.268 |
| Valerian | 250 | 127 | 19×2.91 | 14.57 | 349 | 2108 | 0.227 |
| Peony | 300 | 152 | 19×3.19 | 15.96 | 419 | 2482 | 0.189 |
| Petunia | 750 | 380 | 37×3.62 | 25.32 | 1048 | 5968 | 0.075 |
| Cattail | 750 | 380 | 61×2.82 | 25.35 | 1048 | 6147 | 0.075 |
(2) ACSR
ACSR Technical Characteristics Based on Standard BS 215-2:
| Code name | Nominal aluminum area | Stranding and wire diameter | Sectional area of aluminum | Total sectional area | Approx. overall diameter | Approx. mass |
| Al | Steel |
| mm2 | No./mm | mm2 | mm2 | mm | kg/km |
| RABBIT | 50 | 6/3.35 | 1/3.35 | 52.88 | 61.7 | 10.05 | 214 |
| DOG | 100 | 6/4.72 | 7/1.57 | 105 | 118.5 | 14.15 | 394 |
| WOLF | 150 | 30/2.59 | 7/2.59 | 158.1 | 194.9 | 18.13 | 726 |
| DINGO | 150 | 18/3.35 | 1/3.35 | 158.7 | 167.5 | 16.75 | 506 |
| LYNX | 175 | 30/2.79 | 7/2.79 | 183.4 | 226.2 | 19.53 | 842 |
| ZEBRA | 400 | 54/3.18 | 7/3.18 | 428.9 | 484.5 | 28.62 | 1621 |
| ANSI/ICEA S-76-474 |
|
| Type | Bare Conductor | Code Word | | | Ampacity |
| Insulation Thickness | Nominal Diameter | Rated Strength |
| Bare | OD |
| mils | mils | mils | lbs | A |
| Duplex Service Drop | AAC | Pekingese | 45 | 162 | 252 | 563 | 78 |
| Collie | 45 | 183 | 273 | 563 | 78 |
| Cocker | 60 | 183 | 303 | 563 | 78 |
| Dachshund | 45 | 204 | 294 | 881 | 103 |
| Spaniel | 45 | 231 | 321 | 881 | 103 |
| Cairn | 60 | 231 | 351 | 881 | 103 |
| Doberman | 45 | 292 | 382 | 1350 | 136 |
| Airedale | 60 | 332 | 452 | --- | 158 |
| Basset | 60 | 368 | 488 | 1990 | 182 |
| Malemure | 60 | 372 | 492 | 1990 | 182 |
| AAAC | Chihuahua | 45 | 162 | 252 | 1100 | 78 |
| Vizsla | 45 | 183 | 273 | 1100 | 78 |
| Harrier | 45 | 204 | 294 | 1760 | 103 |
| Whippet | 45 | 231 | 321 | 1760 | 103 |
| Schnauzer | 45 | 292 | 382 | 2800 | 136 |
| Afghan | 60 | 368 | 488 | 4460 | 182 |
| heeler | 60 | 372 | 492 | 4460 | 182 |
| ACSR | Setter | 45 | 162 | 252 | 1190 | 78 |
| Shepherd | 45 | 183 | 273 | 1190 | 78 |
| Retriever | 60 | 183 | 303 | 1190 | 78 |
| Eskimo | 45 | 204 | 294 | 1860 | 103 |
| Terrier | 45 | 231 | 321 | 1860 | 103 |
| Yorkshire | 60 | 231 | 351 | 1860 | 103 |
| Chow | 45 | 292 | 382 | 2850 | 136 |
| Labrador | 60 | 332 | 452 | 3550 | 158 |
| Bloodhound | 60 | 368 | 488 | 4380 | 182 |
| Bull | 60 | 372 | 492 | 4380 | 182 |
We could produce most of the standards cables, such as ASTM, BS, CSA, DIN, GB and IEC Standards, etc.
ISO9001:2008, OHSAS, CCC, TUV Certifications.
People's Cable Group Co., Ltd, a professional wires and cables manufacturer for 27 years in China. we mainly produce power cables, control cables, aerial overhead cables(ABC, AAC ACSR and AAAC cables) etc. Standards Supported: ASTM, BS, CSA, IEC, DIN and GB etc.
1. Factory: 160000 square meters, available for OEM;
2. Lead time: 5-7 working days after payment received;
3. Authentication: TUV, OHSAS, CCC, ISO9001:2008;
4. Guarantee: 20 years;
5. QC inspection: Strict inspection before delivery;
After-sales Service:
1. All our cables will be tested well in production and before delivery.
2. Please contact us if any problem, we will respond within 24 hours.
People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
