| Prod Model: |
GWCT01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Design Advantage: |
Clamp on Current Transformer |
| 0.333 1.5 Output Clamp On Currenaccuracy: |
0.5 / 1.0 / 3.0 Electric Energy Field Metering |
| Split Core Transformer Input: |
5-630A Electric Energy Field Metering |
| Split Core Transformer Output: |
0.333 1.5 Output 0.333 1.5 Output Clamp on Current |
| 0.333 1.5 Output Clamp On Curwindow Size: |
Check Specification Below |
| Rated Frequency: |
50-400kHz Used on Electric Energy Field Metering |
| Dielectric Strength: |
1000mohms @ 500 VDC |
| Operating Temp: |
-25 C~+75 C 0.333 1.5 Output Clamp on Current Prob |
| Internal Structure: |
Epoxy Used on Electric Energy Field Metering |
| Export Markets: |
Global |
| Application: |
Lighting |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Auto-transformer |
| Phase: |
Single or Three |
| Certification: |
Ce,SGS |
| Brand: |
Grewin |
Product Description

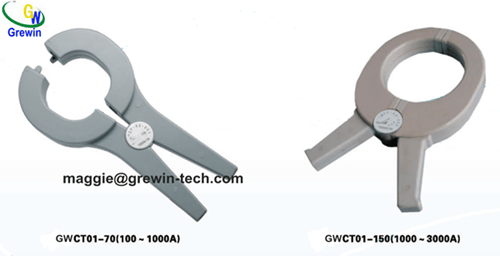

The GREWIN CTC series of clamp-on current transformers are designed for fast and easy installation. The clamp-on core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation. This method permits a safer, easy and portable current measurement.
High precision standard mini clamp on current transformer ct
Features Low cost. 6 standard size Clamp-on core design,safer,easier installation, portable Both Silicon Steel & Nickel Alloy cores available Applications Silicon Steel cores provide moderate accuracy and lower cost for appropriate current measurement current Nickel Alloy cores are suitable for applications that require the highest accuracy with minimal phase angle error. Applications would include electric power quality monitoring devices Specifications Case material:Polypropylene resin Voltage rank:600Vac(isolated condition), 30Vac(bareness condition) High Potential:2500Volts/min Dielectric Resistance:1000MOhms @ 500 Vdc Operating Temperature:-25ºC to +70ºC Frequency:50 /60 Hz RoHS compliant CE-approvedOur main product are miniature voltage transformer ,miniature current transformer ,instrument current transformer , clamp on ccurrent transformer ,split core current transformer ,three phase current transformer ,zero-flux current transformer
Clamp on current transformer(specifications) |
| Rated Primary current | 1-200A |
| Turn ratio | 1:1000 1:2000 1:2500 |
| Output | 0.333V 1.5V |
| Accuracy | 0.1, 0.2 ,1.0 Class |
| Second burden(Ohms) | <=5, <=50 ,>=100k |
| Dielectric Resistance | 1000MOhms @ 500 Vdc |
| Case Material | Polypropylene resinUL flame retardant rating 94-V0 |
| Voltage rank | 600Vac(isolated condition), 30Vac(bareness condition) |
| High Potential | 2500Volts/min |
| Frequency Range: | 50/60Hz |
| Operating Temperature | -25ºC to +70ºC |
| Standard | IEC 60044-1 |
| Accessories | Supplied with feet for base mounting if required |
| Certification | RoHS compliant CE&ETL approved |
| Clamp on current transformer(features) |
| Low cost |
| 5 standard sizes |
| Clamp-on core design,safer,easier installation, portable |
| Both Silicon Steel & Nickel Alloy cores available |
Clamp on current transformer(applications) |
| Silicon Steel cores provide moderate accuracy and lower cost for appropriate current measurement |
| Nickel Alloy cores are suitable for applications that require the highest accuracy with minimal phase angle error. Applications would include electric power quality monitoring devices |
Typical Products
| Part Number | Rated
Input
(A) | Turn
Ratio | Frequency
( Hz ) | Secondary
Burden
Resistance
(Ohms) | Accuracy
Class | Outline
Dimensions
(mm) |
| GWCTC0080N | 1~50 | 1:1000
1:2000
1:2500
... | 50 to 400 | ≤50 | 0.1
0.2 | ID-L-W-H
8.0-46.0-27.0-171 |
| GWCTC0130N | 5~200 | 50 to 400 | ≤5 | 0.1
0.2 | ID-L-W-H
13.0-52.0-27.0-174 |
| GWCTC0200N | 5~200 | 50 to 400 | ≤5 | 0.1
0.2 | ID-L-W-H
20.0-52.0-27.0-180 |
| GWLCTC-0250 | Input:100A
Output:0.333,
1.5V | -- | 50 to 1K | ≥100k | 1.0 | ID-L-W-H
25.0-50.0-19.5-87 |
OUTLINE DIAGRAM:
