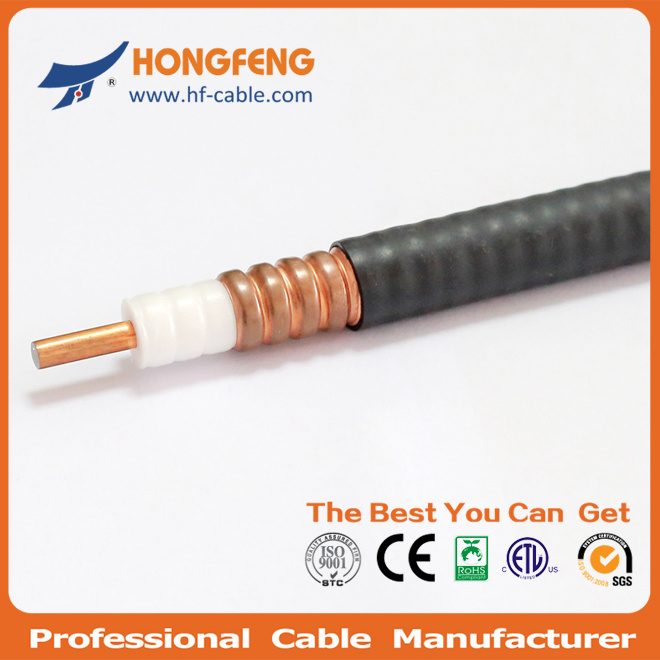

1/2 Inch Best RF Cable, Micro Coaxial Cable

Name: 1/2 Inch Best RF Cable, Micro Coaxial Cable
Brand: all-electronics-online.com
SKU: 793054315
Availability: InStock
Rating: 5 (148 reviews)

Price:	US $ 0.95/Meter
Min Order:	10000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	1/2' cable
Inner Conductor:	4.8 mm CCA
Insulation:	12.20mm PE
Outer Conductor:	13.9mm Helical Copper Tube
Jacket:	15.70mm PE RoHS/UV
Impedance:	50 Ohms
Certificates:	ISO9001/Ce/RoHS/UL/ETL
Application:	Coaxial Cable
Conductor Material:	Copper
Cover Material:	PE
Certification:	RoHS
Model:	Hoccay
Wire Core Material:	Copper Tube
Brand:	Hf/OEM
Type:	RF Cable

Product Description

1. Construction and Properties:

Inner Conductor	Copper-clad alumium wire	4.80mm
Insulation	Physically foamed PE	12.20mm
Outer Conductor	Annular corrugated copper tube	13.90mm
Jacket	Black PE/LSZH flame retardant PE	15.70mm

Single bend radius	Minimum 80mm
Repeated bend radius	Minimum 125mm
Repeated bend times	Minimum 15times
Tensile resistance	Maximum 1200N

Characteristic Impedance		50±2ohms
Transmission rate	Nominal Value	88%
Capacitance	Nominal Value	76pF/m
Insulation Resistance	DC 500V, 1 minute, Minimum	3000Mohms.KM
Insulation Dielectric Strength	DC Lasting for 1 minute	6000V
Jacket Spark Test	AC, Effective Value	8000V
Rated Peak Power		40KW
Cutoff Frequency		8.8GHz

2. Attenuation and RATING:

Frequency(MHz)	Attenuation(dB/100m)	Average Power(KW)
100	2.17	3.52
150	2.67	2.85
200	3.10	2.46
300	3.83	1.99
450	4.75	1.61
500	5.02	1.52
800	6.45	1.18
900	6.88	1.11
1800	10.06	0.76
1900	10.36	0.74
2000	10.67	0.72
2200	11.25	0.68
2400	11.81	0.65
2500	12.09	0.63
3000	13.41	0.57

Voltage Standing Wave Ratio

5~3000MHz	Typical Value	1.15
820~960MHz	Typical Value	1.08
1700~1900MHz	Typical Value	1.10
1900~2500MHz	Typical Value	1.10

Ambient Temperature

Storage	-55~+85ºC
Installation	-40~+60ºC
Operation	-50~+85ºC

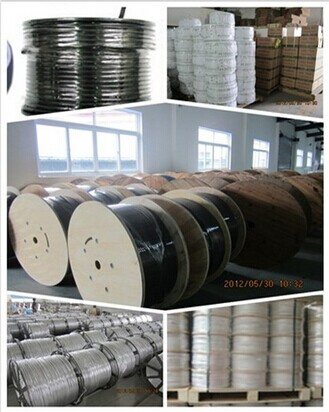

3. Packages:

4. Contact Information

Mr. Leo

Hangzhou Hongfeng Cable Co., Ltd.

www.hf-cable.com

www.hf-cable.com.cn

Tel: +86-571-58615552

Fax: +86-571-63816227

Mb: +86-18268847560

Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.

We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.

We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
