1-20dB FC SC ST LC Fiber Optic Attenuator

Name: 1-20dB FC SC ST LC Fiber Optic Attenuator
Brand: all-electronics-online.com
SKU: 831016095
Availability: InStock
Rating: 4.9 (85 reviews)

Price:	US $ 0.377-4.223/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Fiber Optic Attenuator
Cable Jacket Material:	Plastic or Metal
Transmission Medium:	Single-Mode or Multi-Mode
Structure:	FC SC ST LC
Number Of Cores:	Simplex or Duplex or Multi-Cores
Ferrule Endface:	PC or APC
Application:	Fiber Optic Attenuator
Connector Type:	FC SC ST LC
Brand:	Fiberlink

Product Description

Descriptions

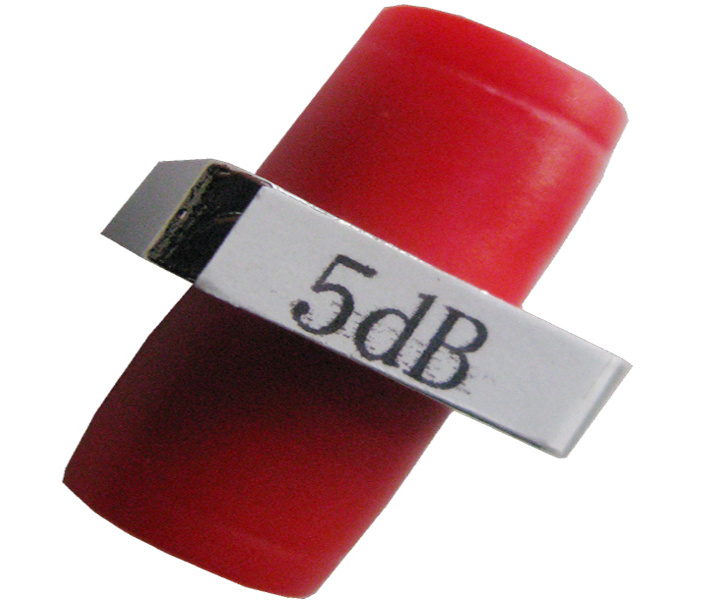

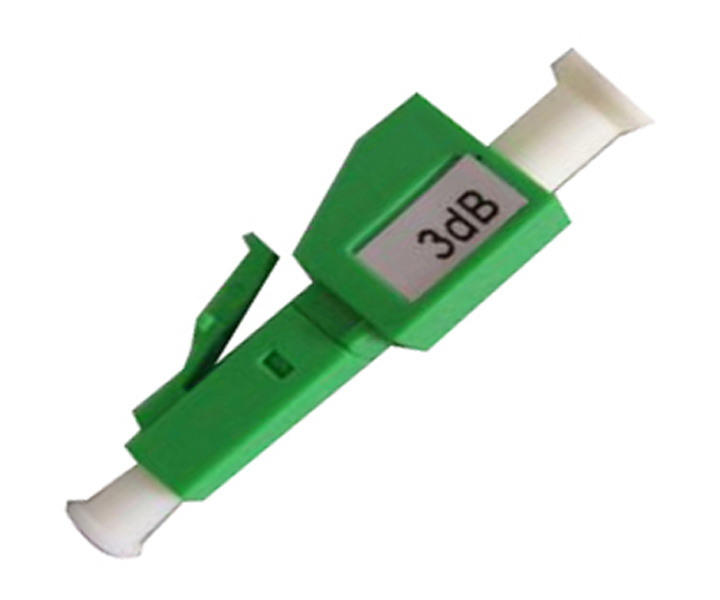

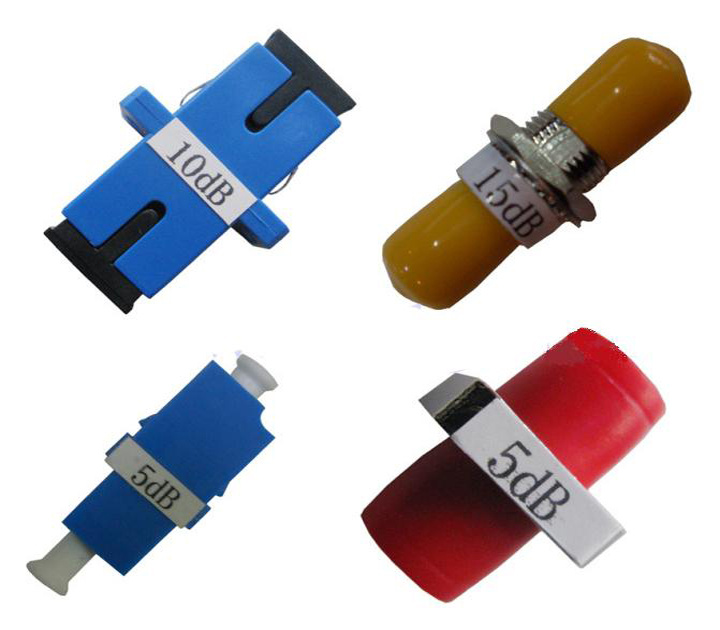

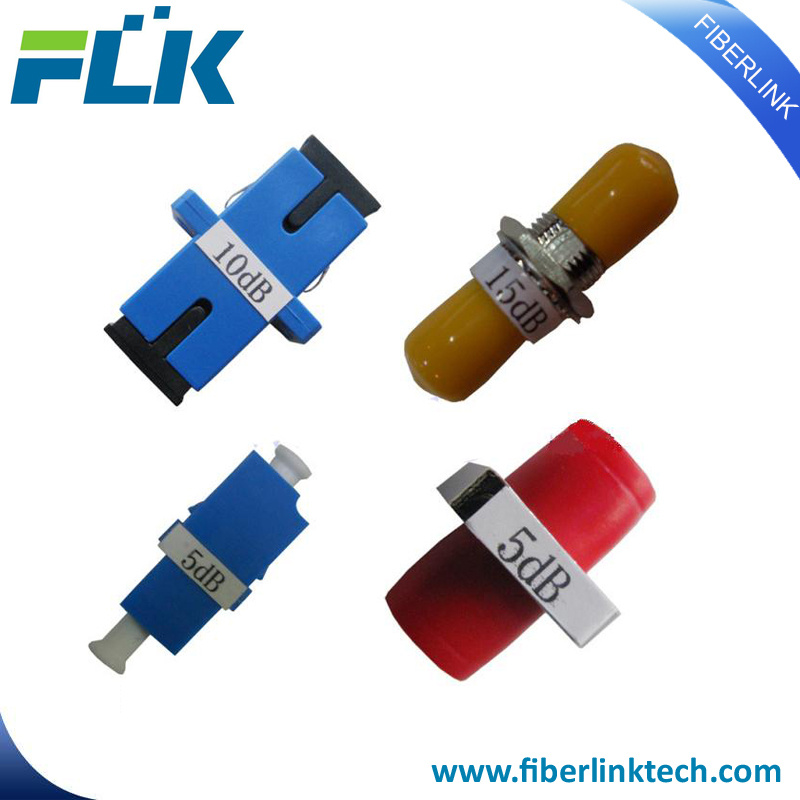

Bulkhead Type Fixed Optical Attenuators include standard SC, FC, ST, LC adapter structure;The products meet the Telcordia GR-910-CORE requirements.

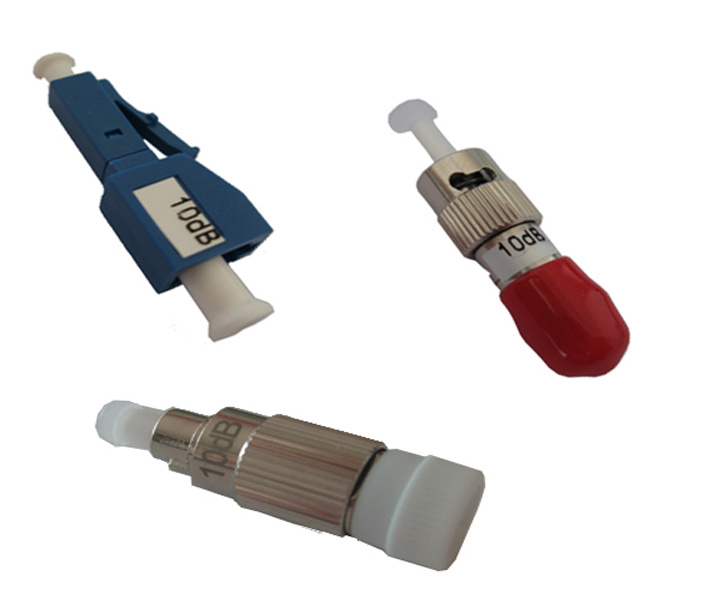

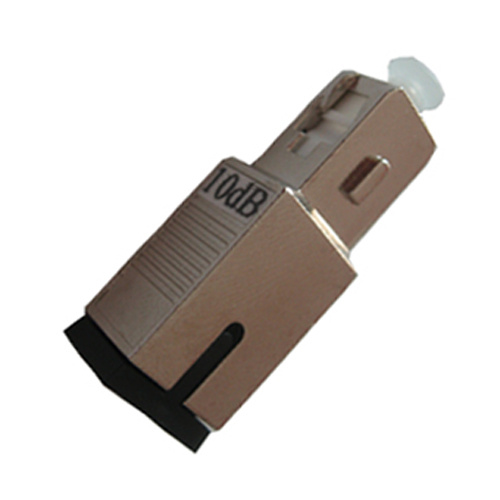

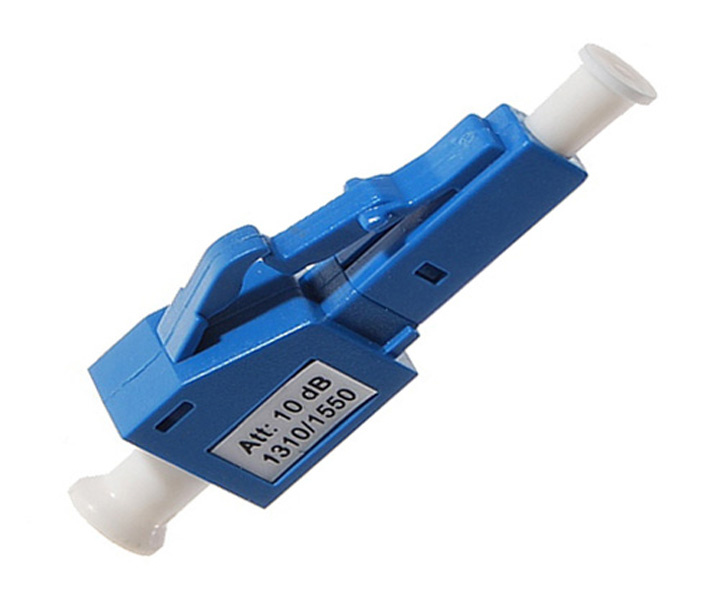

Fiberlink Plug-in Type optical attenuator is a passive device used to reduce the amplitude of a light signal without significantly changing the wave form itself. This is often a requirement in Dense Wave Division Multiplexing (DWDM) and Erbium Doped Fiber Amplifier (EDFA) applications where the receiver cannot accept the signal generated from a high-power light source.

Features
High attenuation precision
Excellent stability and reliability

Applications
Telecommunication networks
CATV networks
Optical communication system
Date networks

Specifications

Parameter	Unit	Value
Wavelength	nm	1310,1550
Return Loss	dB	≥45
Attenuation and precision	dB	1±0.5,2±0.5,3±0.75,5±0.75,8±0.8,10±1,15±1.5,20±2.0
Connector	FC,SC,ST,LC
Operating Temperature	-40 ~ 80 ºC

Our company supplies high-performance fiber optic communication system products with high quality and favorable price. Our main products are Fiber optic cable, Fiber patch cord, Fiber adapter, Fiber attenuator, FBT Coupler, PLC splitter, Fiber patch panel, Fiber termination box, Fiber distribution box, Fiber optic splice closure, MPO system and FTTH solution products, etc. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Interconnect Products Division: Develops and manufactures fiber optic components for a diverse range of applications. The division's products include Fiber optic connectors, patch cords andadapters, attenuators, couplers, PLC splitters, circulators, and isolators.

Solution Products Division: Known for providing Fiber Optic Communication Solution in the world, the Solution Products division focused on fiber accessories and systems, such as Fiber patch panel, Fiber termination box, Fiber distribution enclosure, Fiber optic splice closure, MPO system andFTTH solution products, etc.

OEM Products Division: OEM Products division provides OEM services to our clients by not only complete customers' requirements but also give active suggestions to improve the products' performance and quality. This division's main mission is to help customers stay competitive by constant innovation service.
