1.25GB/S CWDM SFP (35dB) Optical Transceiver with Ddmi

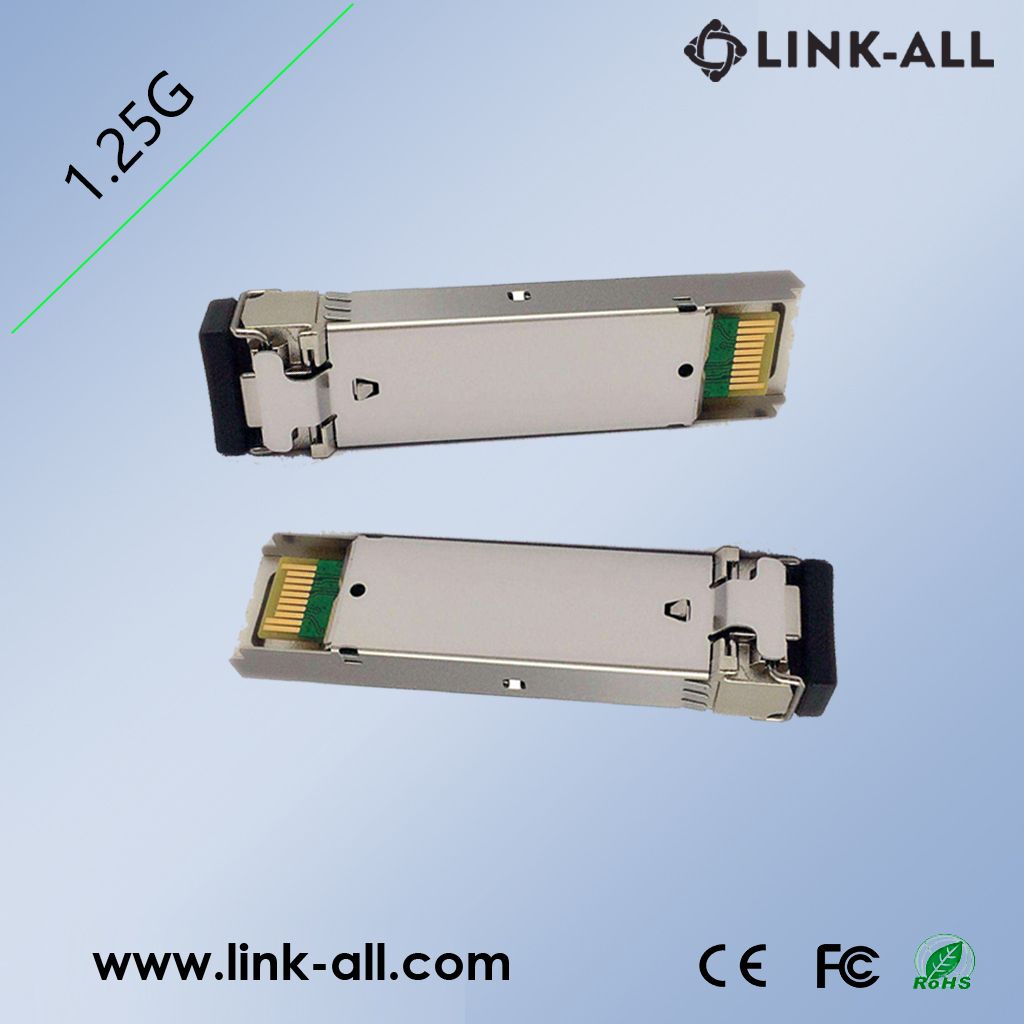

Name: 1.25GB/S CWDM SFP (35dB) Optical Transceiver with Ddmi
Brand: all-electronics-online.com
SKU: 837325565
Availability: InStock
Rating: 4.5 (52 reviews)

Price:	US $ 45/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	UNCSFP-24-04712-22F
Product Type:	SFP Transceiver, Optic Transceiver
Speed Rate:	1.25 GB/S
Fiber Type:	Dual Fiber
Connector Type:	LC Duplex
Communication Module:	Hot Pluggable, SFP
Voltage:	3.3 V
Status Available:	Active
Interface Type:	Plug-in Module
Operating Temperature:	0 to +70 Degree Centigrade
Application:	Gigabit Ethernet, Metro/Access Networks
Usage:	Media Converter, Switch, and So on
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	RoHS
Condition:	New

Product Description

1.25GB/S CWDM SFP (35dB) Optical Transceiver with DDMI

Features

16 CWDM Wavelengths Available
Hot-Pluggable Duplex LC Connector
Single +3.3V Power Supply
Operating Temperature from 0°C to +70°C
Monitoring Interface, Compliant with SFF-8472
Compliant with ITU-T G694.2
Compliant with Telcordia (Bellcore) GR-468-CORE

Designed to Meet Laser Class1 Compliant with IEC60825-1

With Real Time Monitors of
- Transmitter Output Power
- Receiver Input Power
- Laser Bias Current
- Temperature
- Supply Voltage
RoHS Compliant

Features

16 CWDM Wavelengths Available
Hot-Pluggable Duplex LC Connector
Single +3.3V Power Supply
Operating Temperature from 0°C to +70°C
Monitoring Interface, Compliant with SFF-8472
Compliant with ITU-T G694.2

Compliant with Telcordia (Bellcore) GR-468-CORE

Designed to Meet Laser Class1 Compliant with IEC60825-1

With Real Time Monitors of
- Transmitter Output Power
- Receiver Input Power
- Laser Bias Current
- Temperature
- Supply Voltage
RoHS Compliant

Applications

Metro/Access Networks
Gigabit Ethernet
1×Fiber Channel
Other Optical Links
Gigabit Ethernet
1×Fiber Channel
Other Optical Links

Specification

Transmitter

Parameter	Symbol	Min.	Typical	Max.	Unit
Data Rate	B	-	1250	-	Mb/s
Centre Wavelength	λc	λ-3	λ	λ+3	nm
Output Spectral Width	△λ	-	-	1	nm
Average Output Power	P_o	1	-		dBm
Extinction Ratio	E.R.	9	-	-	dB
Data Input Voltage-High	V_IHS	V_cc-1.16	-	V_cc-0.89	V
Data Input Voltage -Low	V_ILS	V_cc-1.82	-	V_cc-1.48	V
Supply Current	I_CC	-	90	150	mA
Output Optical Eye	Compliant with IEEE802.3Z
Receiver
Parameter	Symbol	Min.	Typical	Max.	Unit
Receive Sensitivity	P_min	-	-	-34	dBm
Maximum Input Power	P_MAX	-7	-	-	dBm
Signal Detect Threshold-De-Assert	S_D	-	-	-33	dBm
Signal Detect Threshold-Assert	S_A	-43	-	-	dBm
Hysteresis	-	-	2.0	-	dBm
Output High Voltage	V_OH	V_cc-1.03	-	V_cc-0.89	V
Output Low Voltage	V_OLS	V_cc-1.82	-	V_cc-1.63	V
Operating Wavelength	λc	1100	-	1600	nm
Supply Current	I_CC	-	80	110	mA

Ordering information

Part Number	Product Description
UNCSFP-24-04712-22F	1270~1610nm CWDM, 1.25Gbps with DDMI, LC, 120km, 0°C~+70°C,
