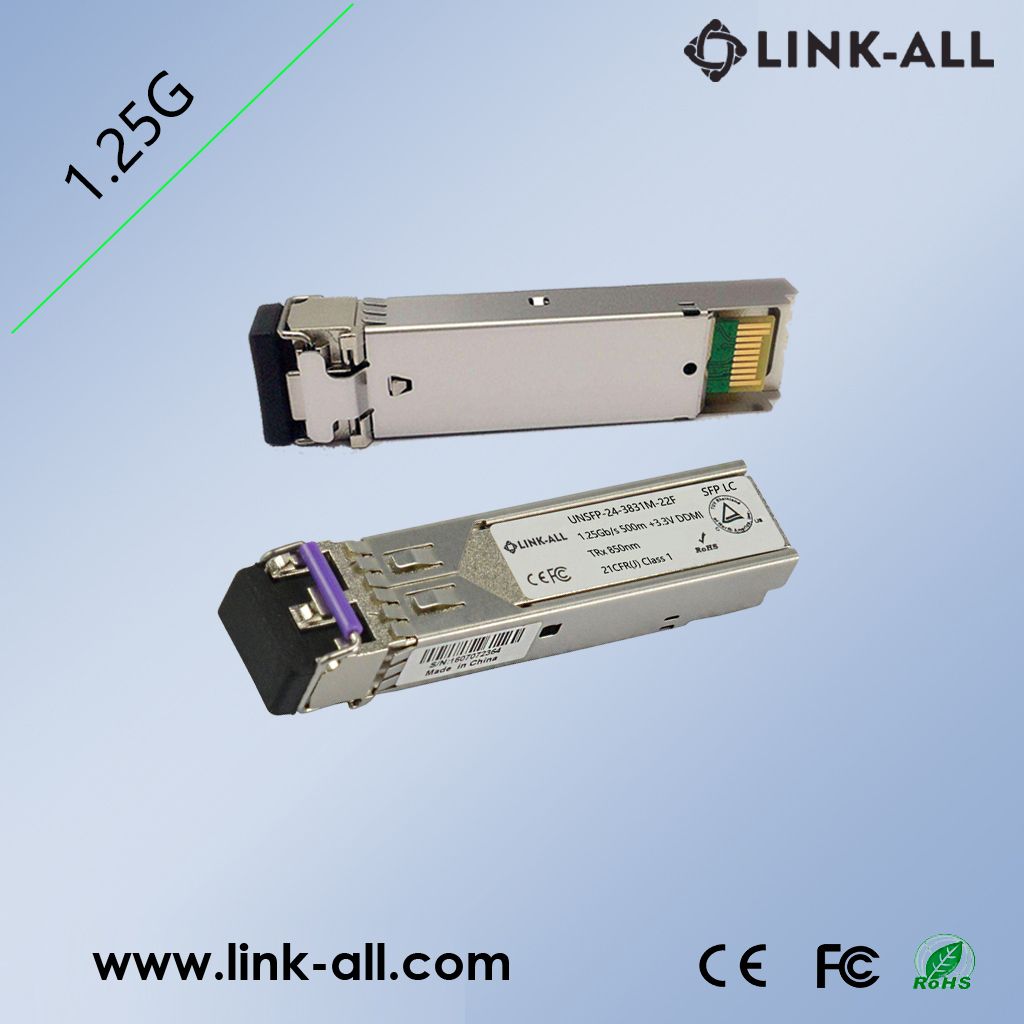

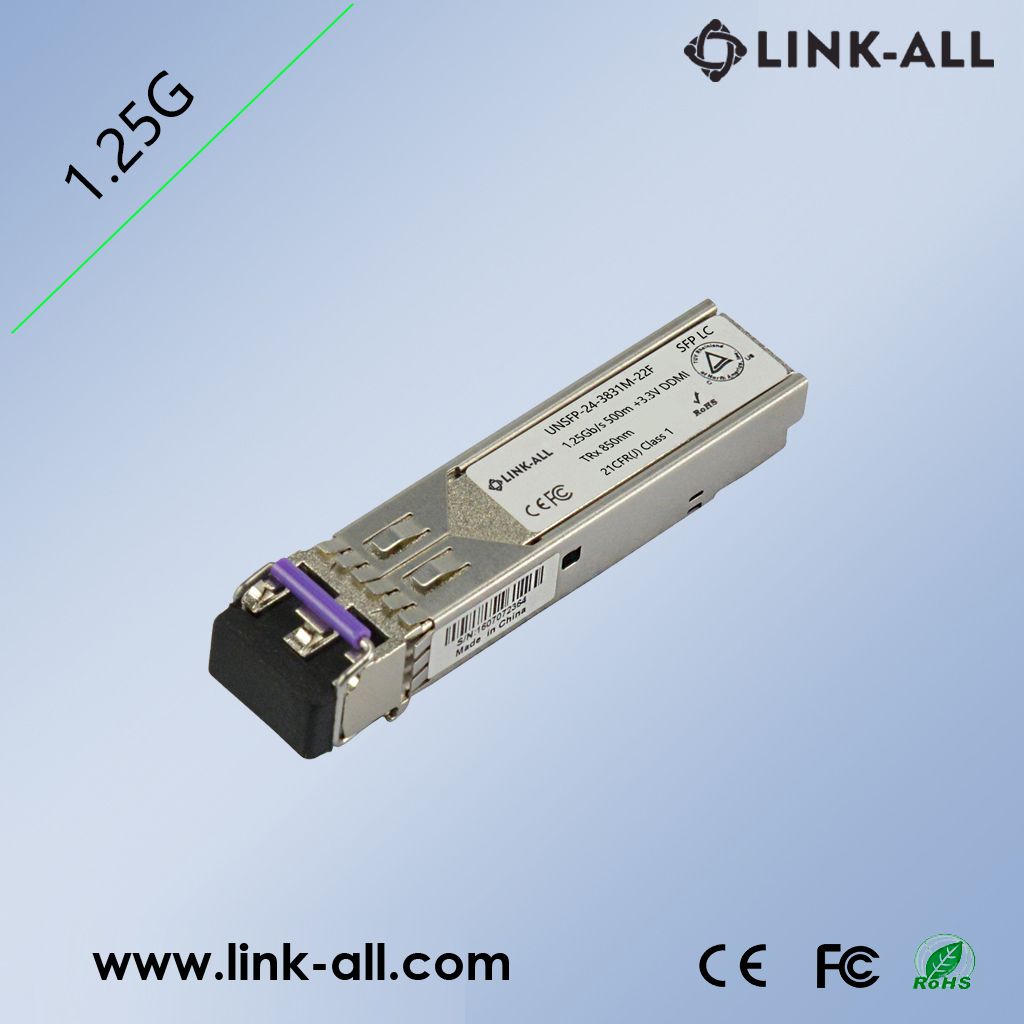

1.25GB/S Multi-Mode SFP and 1.25GB/S Single-Mode SFP Optical Transceiver
| Price: |
US $ 8.5/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
UNSFP-24-3311S-22F |
| Speed Rate: |
1.25g |
| Fiber Type: |
Dual Mode Fiber |
| Connector Type: |
LC |
| Module Type: |
SFP |
| Voltage: |
3.3 V |
| MOQ: |
1 PCS |
| Product Type: |
Fiber Optic Transceiver |
| Usage: |
Ge, Fiber Channel, Router/Server Interface |
| Type: |
Wired |
| Support Network: |
Ethernet |
| Information Content: |
Data |
| Certification: |
RoHS |
| Condition: |
New |
Product Description
1.25Gb/s Multi-Mode SFP 500m Optical Transceiver
Features: - Multi-Source Package with Duplex LC Connector
- Single +3.3V Power Supply
- Hot-Pluggable
- Up to 1.25Gb/s Data Links
- Up to 550m on 50/125µm MMF
Up to 300m on 62.5/125µm MMF- Eye Safety Designed to Meet Laser Class1, Compliant with IEC60825
- Compliant with Bellcore TA-NWT-000983
- Monitoring Interface Compliant with SFF-8472
- Operating Case Temperature
Standard(X=1):0ºC~+70ºCIndustrial(X=2):-40ºC~+85ºCApplications:- Gigabit Ethernet
- 1x Fiber Channel
- Switch to Switch Interface
- Router/Server Interface
- Other Optical Links
Specification:Transmitter:| Parameter | Symbol | Min. | Typical | Max. | Unit |
| Data Rate | B | - | 1.25 | - | Gb/s |
| Centre Wavelength | λc | 830 | 850 | 860 | nm |
| Parameter | Symbol | Min. | Typical | Max. | Unit |
| Output Spectral Width(RMS) | △λ | - | - | 0.85 | nm |
| Average Output Power*Note1 | Po | -9.5 | - | -3 | dBm |
| Extinction Ratio*Note2 | E.R. | 9 | - | - | dB |
| Supply Current | ICC | - | 80 | 180 | mA |
| Rise and Fall Time (20~80%) | Tr | - | | 0.26 | ns |
| Average Output Power@TX_DISABLE | Po_dis | | | -45 | dBm |
| Output Optical Eye | Compliant with IEEE 802.3ah-2004 |
Receiver:| Parameter | Symbol | Min. | Typical | Max. | Unit |
| Date Rate | B | - | 1.25 | - | Gb/s |
| Receive Sensitivity*Note3 | Pmin | - | - | -17 | dBm |
| Maximum Input Power | Pmax | -3 | - | - | dBm |
| Signal Detect Threshold-De-Assert | SD | | | -19 | dBm |
| Signal Detect Threshold-Assert | SA | -35 | | | dBm |
| Hysteresis | - | | 2.0 | | dB |
| Supply Current | ICC | - | 60 | 120 | mA |
| Operating Wavelength | λc | 770 | - | 860 | nm |
| Alarm Output Interface | LVTTL |
Note1: Measured with 62.5/125µm multi-mode fiber. Note2:Filtered, measured with a PRBS 2^7-1 test pattern @1.25GbpsNote3: Measured with ER=9 dB, 2^7-1 PRBS data pattern, BER <1E-12.1.25Gb/s Single Mode SFP (20/40/70/100/120km) Optical TransceiverFeatures - Compliant with Specifications for IEEE802.3Z
- Multi-Source Package with Duplex LC Connector
- Up to 1.25Gb/s Data Links
- Single Mode 1310nm FP-LD
- Single +3.3V Power Supply
- Hot-Pluggable
- Compliant with Bellcore TA-NWT-000983
- Eye Safety Designed to Meet Laser Class1, Compliant with IEC60825-1
Applications - Gigabit Ethernet
- 1x Fiber Channel
- Switch to Switch Interface
- Switched Backplane Applications
- Router/Server Interface
- Other Optical Links
Specification| Parameter | Symbol | Min. | Typical | Max. | Unit |
| Data Rate | B | - | 1250 | - | Mb/s |
| Centre Wavelength | λc | 1296 | 1310 | 1330 | nm |
| Output Spectral Width | △λ | - | - | 4 | nm |
| Average Output Power | Po | -9 | - | -3 | dBm |
| Extinction Ratio | EXT | 9 | - | - | dB |
| Data Input Voltage-High | VIHS | Vcc-1.16 | - | Vcc-0.89 | V |
| Data Input Voltage -Low | VILS | Vcc-1.82 | - | Vcc-1.48 | V |
| Supply Current | ICC | - | 90 | 150 | mA |
| Output Optical Eye | Compliant with IEEE802.3Z |
| Receiver Section: |
| Parameter | Symbol | Min. | Typical | Max. | Unit |
| Receive Sensitivity | Pmin | - | - | -25 | dBm |
| Maximum Input Power | PMAX | -3 | - | - | dBm |
| Signal Detect Threshold-De-Assert | SD | - | - | -23 | dBm |
| Signal Detect Threshold-Assert | SA | -33 | - | - | dBm |
| Hysteresis | - | - | 2.0 | - | dBm |
| Output High Voltage | VOH | Vcc-1.03 | - | Vcc-0.89 | V |
| Output Low Voltage | VOL | Vcc-1.82 | - | Vcc-1.63 | V |
| Operating Wavelength | λc | 1100 | - | 1600 | nm |
| Supply Current | ICC | - | 80 | 110 | mA |

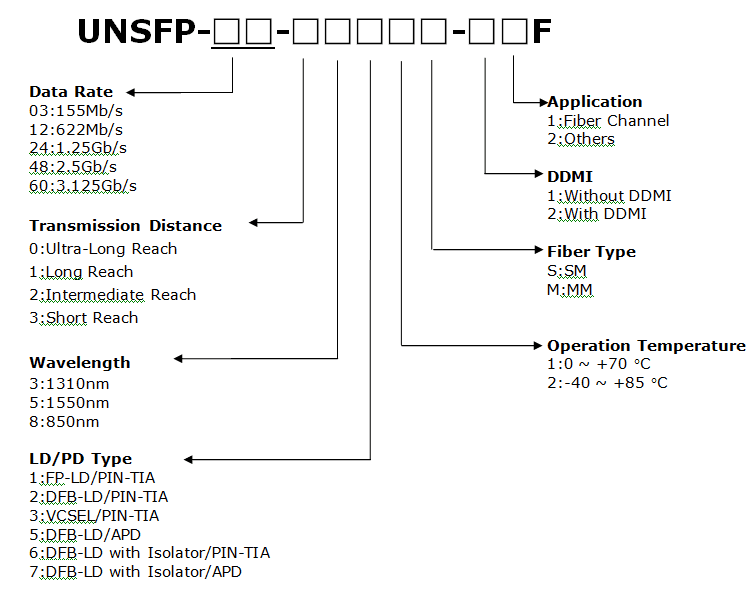

Ordering Information
